AZT270R-AEPGK (2008)
Toyota Avensis
Production
Nov 2008
-
Apr 2011
Engine
1AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )

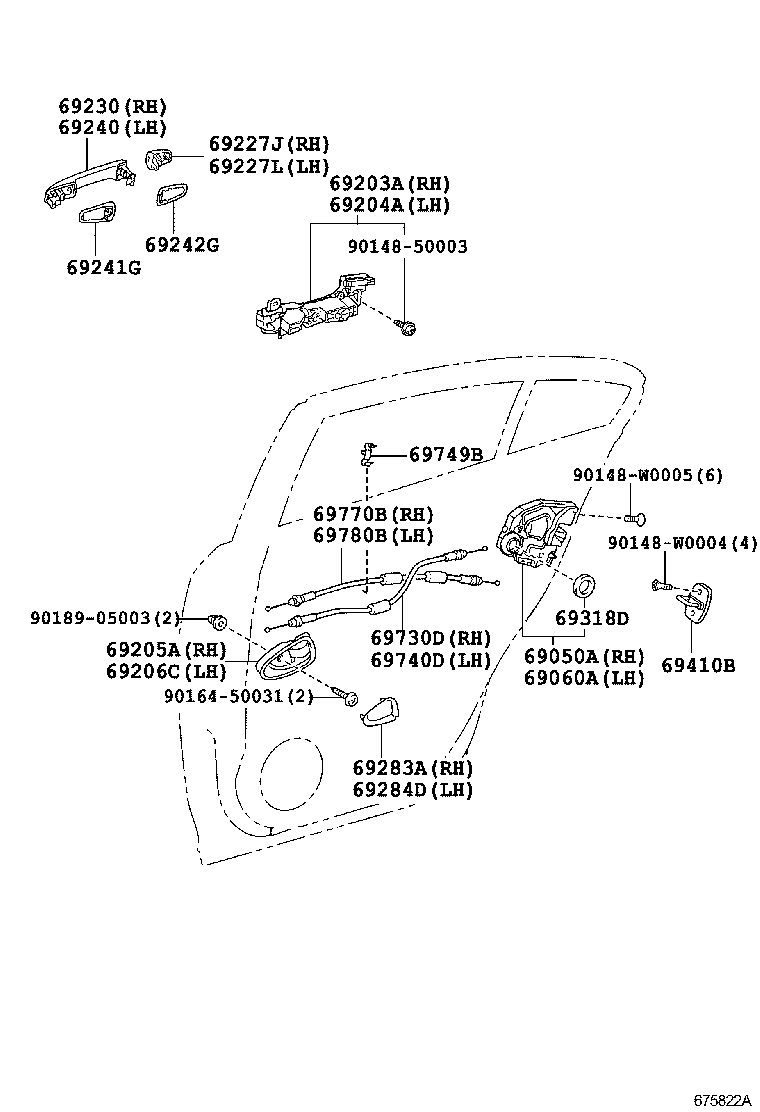

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH | ||||
| 69050-05050 |
AZT270 |
1 | ||
| 69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH | ||||
| 69060-05050 |
AZT270 |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-05040 |
AZT270 |
1 | ||
| 69203-05042 |
AZT270 |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-05042 |
AZT270 |
1 | ||
| 69204-05040 |
AZT270 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-05051C0 |
AZT270 BLACK,TRIM2# |
1 | ||
| 69205-05051E0 |
AZT270 GREGE,TRIM4# |
1 | ||
| 69205-05050E0 |
AZT270 GREGE,TRIM4# |
1 | ||
| 69205-05050C0 |
AZT270 BLACK,TRIM2# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-05050E0 |
AZT270 GREGE,TRIM4# |
1 | ||
| 69206-05050C0 |
AZT270 BLACK,TRIM2# |
1 | ||
| 69206-05051E0 |
AZT270 GREGE,TRIM4# |
1 | ||
| 69206-05051C0 |
AZT270 BLACK,TRIM2# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69250-05902 |
AZT270 LESS COLOR |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69250-05902 |
AZT270 LESS COLOR |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69211-05918 |
AZT270 PAINT REQ. |
1 | ||
| 69211-05914 |
AZT270 PAINT REQ. |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69211-05918 |
AZT270 PAINT REQ. |
1 | ||
| 69211-05914 |
AZT270 PAINT REQ. |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-05010 |
AZT270 |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-05010 |
AZT270 |
2 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-05020C0 |
AZT270 BLACK,TRIM2# |
1 | ||
| 69283-05020E0 |
AZT270 GREGE,TRIM4# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-05020C0 |
AZT270 BLACK,TRIM2# |
1 | ||
| 69284-05020E0 |
AZT270 GREGE,TRIM4# |
1 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
AZT270 |
2 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-33010 |
AZT270 |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-05020 |
AZT270 |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-05020 |
AZT270 |
1 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32040 |
AZT270 |
2 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-05030 |
AZT270 |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-05030 |
AZT270 |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-W0004 | ||||
| 90148-W0005 | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
