AZT270R-AEPGK (2008)

Toyota Avensis

Production Nov 2008 - Apr 2011
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0811- )

Click highlighted areas on diagram

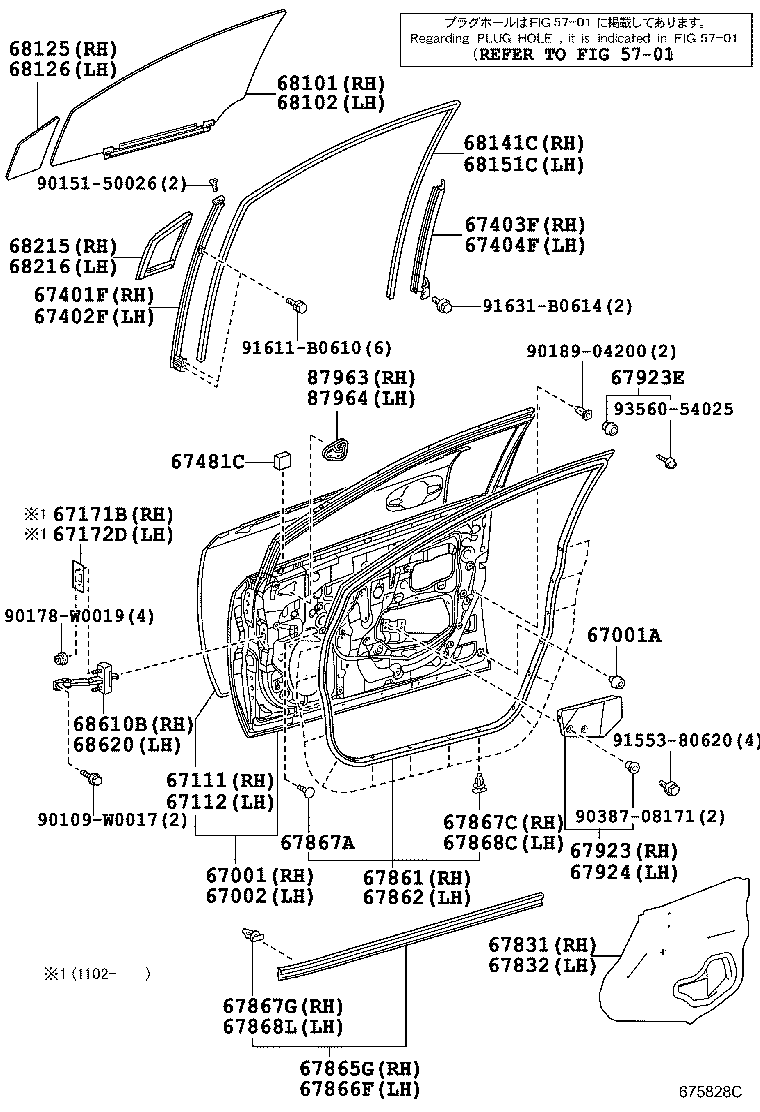

DOOR PANEL

diagram 5701 67001 67001A 67002 67111 67112 67171B 67172D 67401F 67402F 67403F 67404F 67481C 67831 67832 67861 67862 67865G 67866F 67867A 67867C 67867G 67868C 67868L 67923 67923E 67924 68101 68102 68125 68126 68141C 68151C 68215 68216 68610B 68620 87963 87964 90109W0017 9015150026 90178W0019 9018904200 9038708171 9155380620 91611B0610 91631B0614 9356054025
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-05070

AZT270

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09124

AZT270

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-05070

AZT270

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-05060

AZT270

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-05060

AZT270

 1
67171B - REINFORCEMENT, FRONT DOOR HINGE, RH
67171-05030

AZT270

 1
67172D - REINFORCEMENT, FRONT DOOR HINGE, LH
67171-05030

AZT270

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-20280

AZT270

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-20270

AZT270

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-05040

AZT270

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-05050

AZT270

 1
67404-05040

AZT270

 1
67481C - SEAL, FRONT DOOR FRONT LOWER FRAME
67481-05040

AZT270

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-05020

AZT270

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-05010

AZT270

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-05060

AZT270

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-05060

AZT270

 1
67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH
67865-05030

AZT270

 1
67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH
67866-05030

AZT270

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67868-30030

AZT270

 2
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-02020

AZT270

 15
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67868-02020

AZT270

 7
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

AZT270

 15
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-12150

AZT270

 7
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-05041

AZT270

 1
67923-05040

AZT270

 1
67923E - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-24030

AZT270

 2
67924 - CUSHION, FRONT DOOR STIFFENER, NO.2
67924-05051

AZT270

 1
67924-05050

AZT270

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-05050

AZT270

*TEM,T=5.0,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-05050

AZT270

*TEM,T=5.0,GREEN

 1
68125 - GLASS, FRONT DOOR FIX WINDOW, RH
68125-05010

AZT270

*TEM,T=5.0,GREEN

 1
68126 - GLASS, FRONT DOOR FIX WINDOW, LH
68126-05010

AZT270

*TEM,T=5.0,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-05040

AZT270

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-05040

AZT270

 1
68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68215-05010

AZT270

 1
68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68216-05010

AZT270

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-05050

AZT270

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-05050

AZT270

 1
87963 - COVER, OUTER MIRROR INSTALL HOLE, RH
87963-05010

AZT270

 1
87964 - COVER, OUTER MIRROR INSTALL HOLE, LH
87964-05010

AZT270

 1
Common parts
90109-W0017
90151-50026
90178-W0019
90189-04200
90387-08171
91553-80620
91611-B0610
91631-B0614
93560-54025
Linked diagrams
5701

ILLUST NO. 2 OF 2(0811- )

Click highlighted areas on diagram

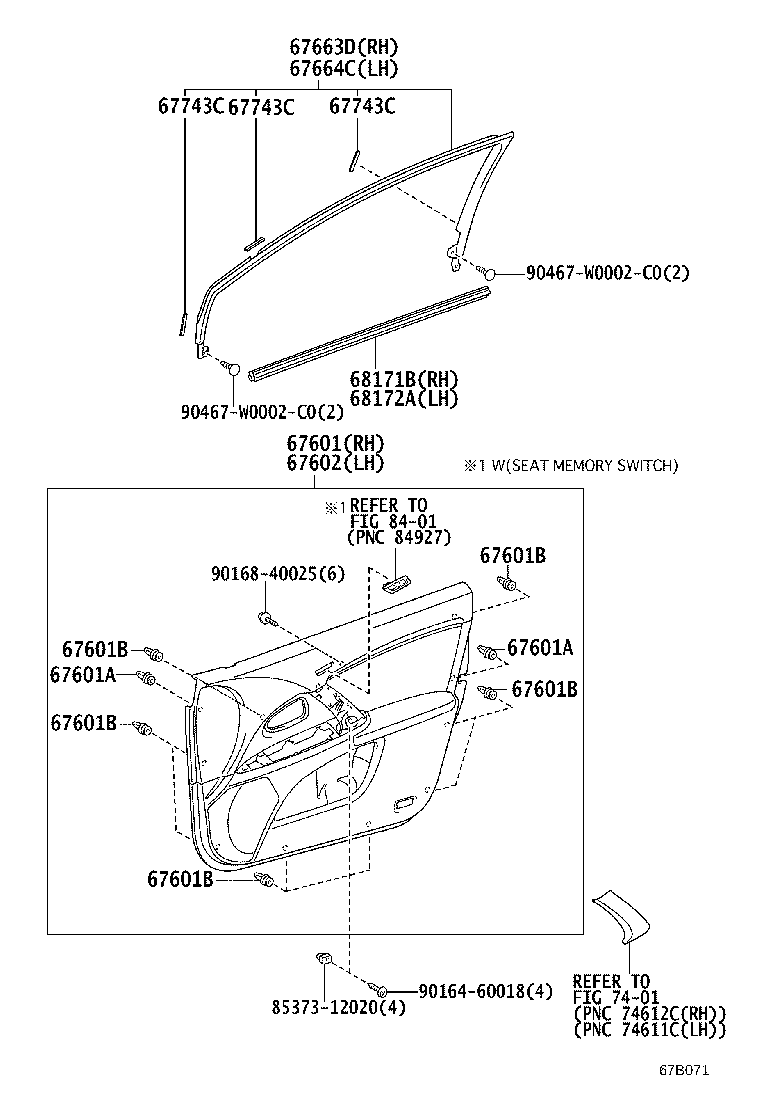

DOOR TRIM

diagram 67601 67601A 67601A 67601B 67601B 67601B 67601B 67601B 67602 67663D 67664C 67743C 67743C 67743C 68171B 68172A 7401 8401 8537312020 9016460018 9016840025 90467W0002C0 90467W0002C0
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-05660C2

AZT270

BLACK,TRIM2#

 1
67610-05660E2

AZT270

GREGE,TRIM4#

 1
67610-05650C2

AZT270..RHD

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

 1
67610-05670C2

AZT270

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

 1
67610-05670E2

AZT270

SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

 1
67610-05650E2

AZT270..RHD

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-32120

AZT270

 4
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-32120

AZT270

 4
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

AZT270

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

AZT270

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

AZT270

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

AZT270

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

AZT270

 16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-05640C2

AZT270..RHD

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

 1
67620-05640E2

AZT270

SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

 1
67620-05650E2

AZT270

GREGE,TRIM4#

 1
67620-05650C2

AZT270

BLACK,TRIM2#

 1
67620-05640C2

AZT270

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

 1
67620-05640E2

AZT270..RHD

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

 1
67663D - GARNISH, DOOR FRAME, RH
676A0-05010

AZT270

 1
67664C - GARNISH, DOOR FRAME, LH
676B0-05010

AZT270

 1
67743C - SEAL, FRONT DOOR TRIM
67745-05020

AZT270

 6
67743C - SEAL, FRONT DOOR TRIM
67745-05020

AZT270

 6
67743C - SEAL, FRONT DOOR TRIM
67745-05020

AZT270

 6
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-05060

AZT270

 1
68171-05070

AZT270

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-05060

AZT270

 1
68172-05070

AZT270

 1
Common parts
85373-12020
90164-60018
90168-40025
90467-W0002C0
Linked diagrams
7401
8401
