AZT270L-AEPGK (2008)

Toyota Avensis

Production Nov 2008 - Apr 2011
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811-1104)

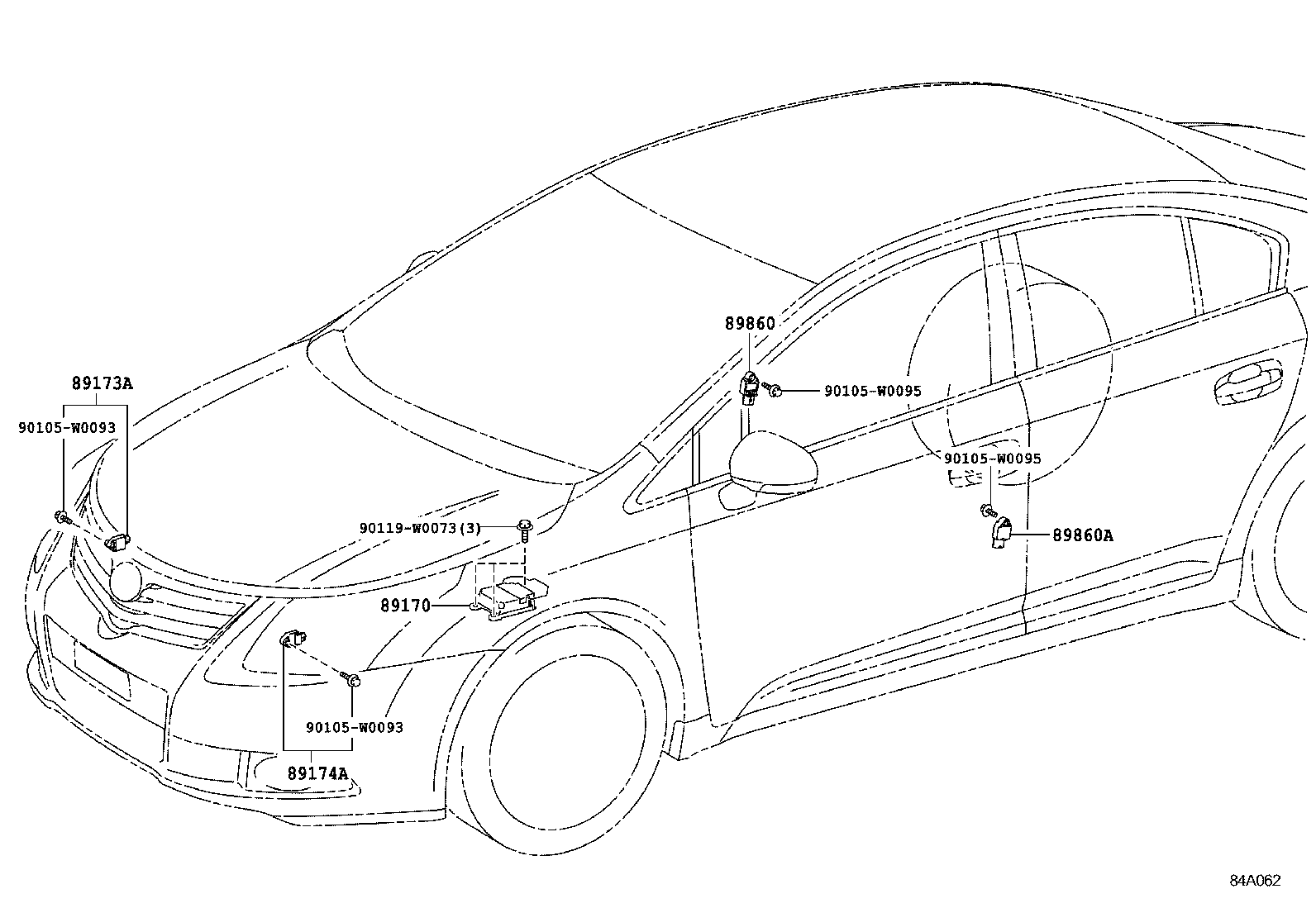

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89860 89860A 90105W0093 90105W0093 90105W0095 90105W0095 90119W0073
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-05240

AZT270..LHD

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09580

AZT270

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09580

AZT270

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-05040

AZT270

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-05040

AZT270

 1
Common parts
90105-W0093
90105-W0095
90119-W0073
