AZT250R-AEPNK (2003)
Toyota Avensis
Production
Jan 2003
-
Apr 2006
Engine
1AZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

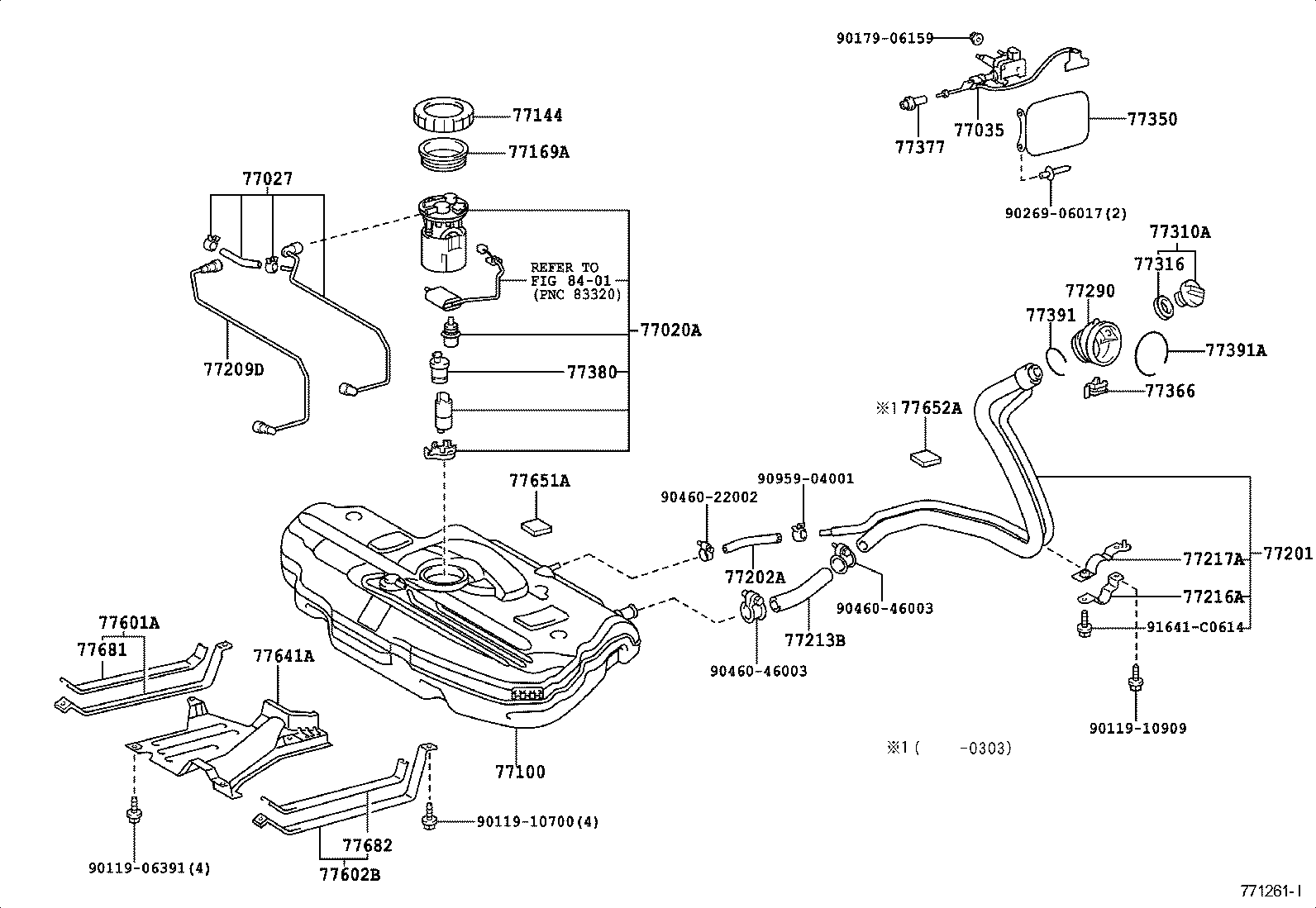

ILLUST NO. 1 OF 2(0301- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02080 |
AZT250 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-05010 |
AZT250 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77030-05010 |
AZT250 |
1 | ||
| 77030-05011 |
AZT250 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-05040 |
AZT250 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02030 |
AZT250 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-02030 |
AZT250 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-05080 |
AZT250 |
1 | ||
| 77201-05080 |
AZT250 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-02040 |
AZT250 L=160 |
1 | ||
| 77259-02040 |
AZT250 L=160 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02050 |
AZT250 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-02080 |
AZT250 |
1 | ||
| 77213-02070 |
AZT250 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-02060 |
AZT250 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-02030 |
AZT250 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-05030 |
AZT250 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
AZT250 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AZT250 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-05010 |
AZT250 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-05020 |
AZT250 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-05010 |
AZT250 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-12020 |
AZT250 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AZT250 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12040 |
AZT250 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-02060 |
AZT250 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-02070 |
AZT250 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02010 |
AZT250 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
AZT250 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-12070 |
AZT250 |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-02040 |
AZT250 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-02020 |
AZT250 |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-10700 | ||||
| 90119-10909 | ||||
| 90179-06159 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90959-04001 | ||||
| 91641-C0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

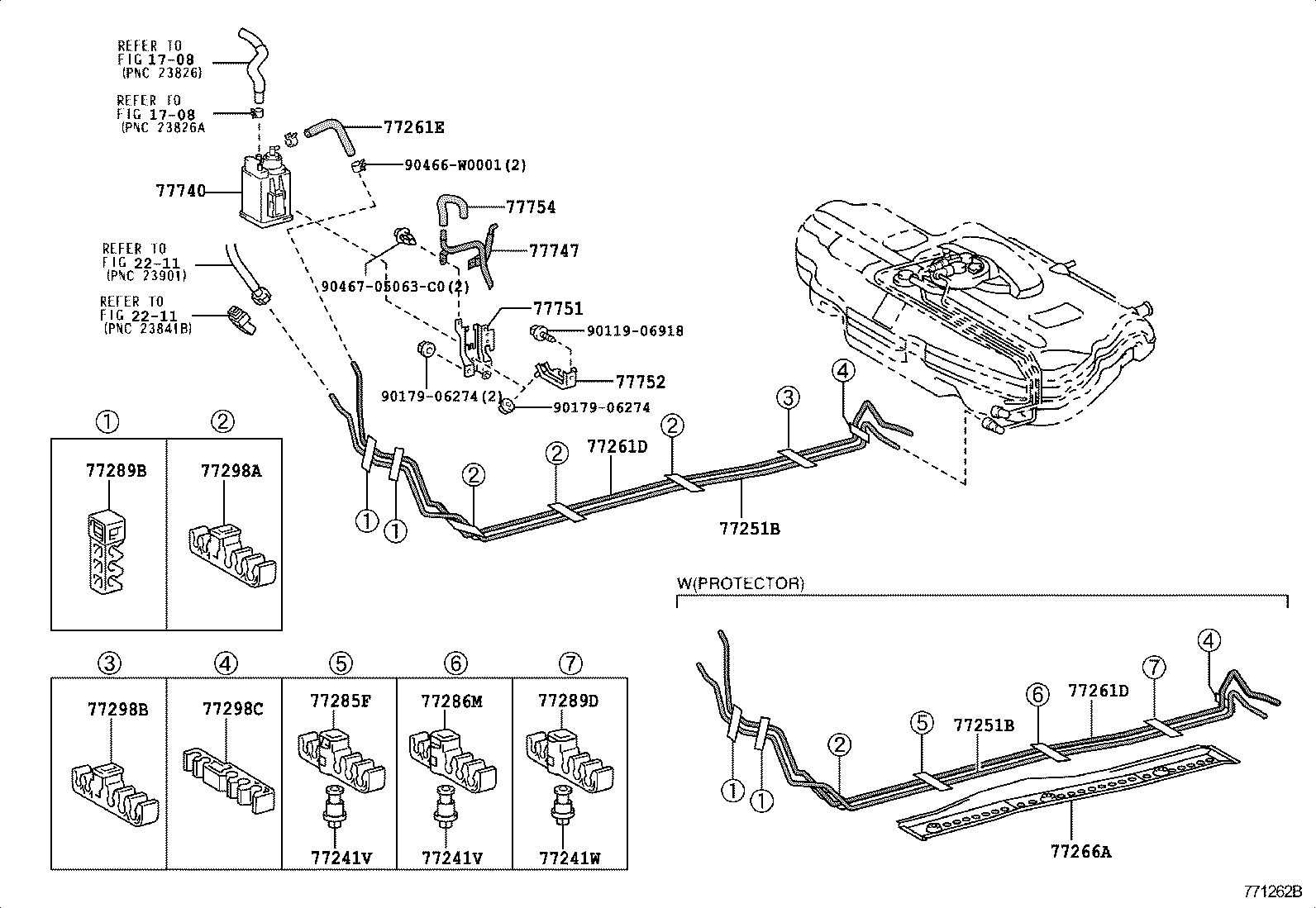

ILLUST NO. 2 OF 2(0301- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-12240 |
AZT250 ROUGH ROAD PACK 2 |
2 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-12240 |
AZT250 ROUGH ROAD PACK 2 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-12250 |
AZT250 ROUGH ROAD PACK 2 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-05180 |
AZT250 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-05180 |
AZT250 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-05080 |
AZT250 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-05080 |
AZT250 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77249-20020 |
AZT250 ROUGH ROAD PACK 2 |
1 | ||
| 77249-20020 |
AZT250 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20140 |
AZT250 ROUGH ROAD PACK 2 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77298-12070 |
AZT250 ROUGH ROAD PACK 2 |
2 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77298-12080 |
AZT250 ROUGH ROAD PACK 2 |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-05010 |
AZT250 |
2 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-12090 |
AZT250 ROUGH ROAD PACK 2 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-05010 |
AZT250 |
3 | ||
| 77298-05010 |
AZT250 ROUGH ROAD PACK 2 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-05020 |
AZT250 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-05030 |
AZT250 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-05031 |
AZT250 |
1 | ||
| 77740-05030 |
AZT250 |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-20050 |
AZT250 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-05020 |
AZT250 |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77752-05020 |
AZT250 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20340 |
AZT250 |
1 | ||
| Common parts | ||||
| 90119-06918 | ||||
| 90179-06274 | ||||
| 90466-W0001 | ||||
| 90467-05063C0 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
