AZT250R-AEPGK (2006)
Toyota Avensis
Production
Apr 2006
-
Nov 2008
Engine
1AZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0604- )

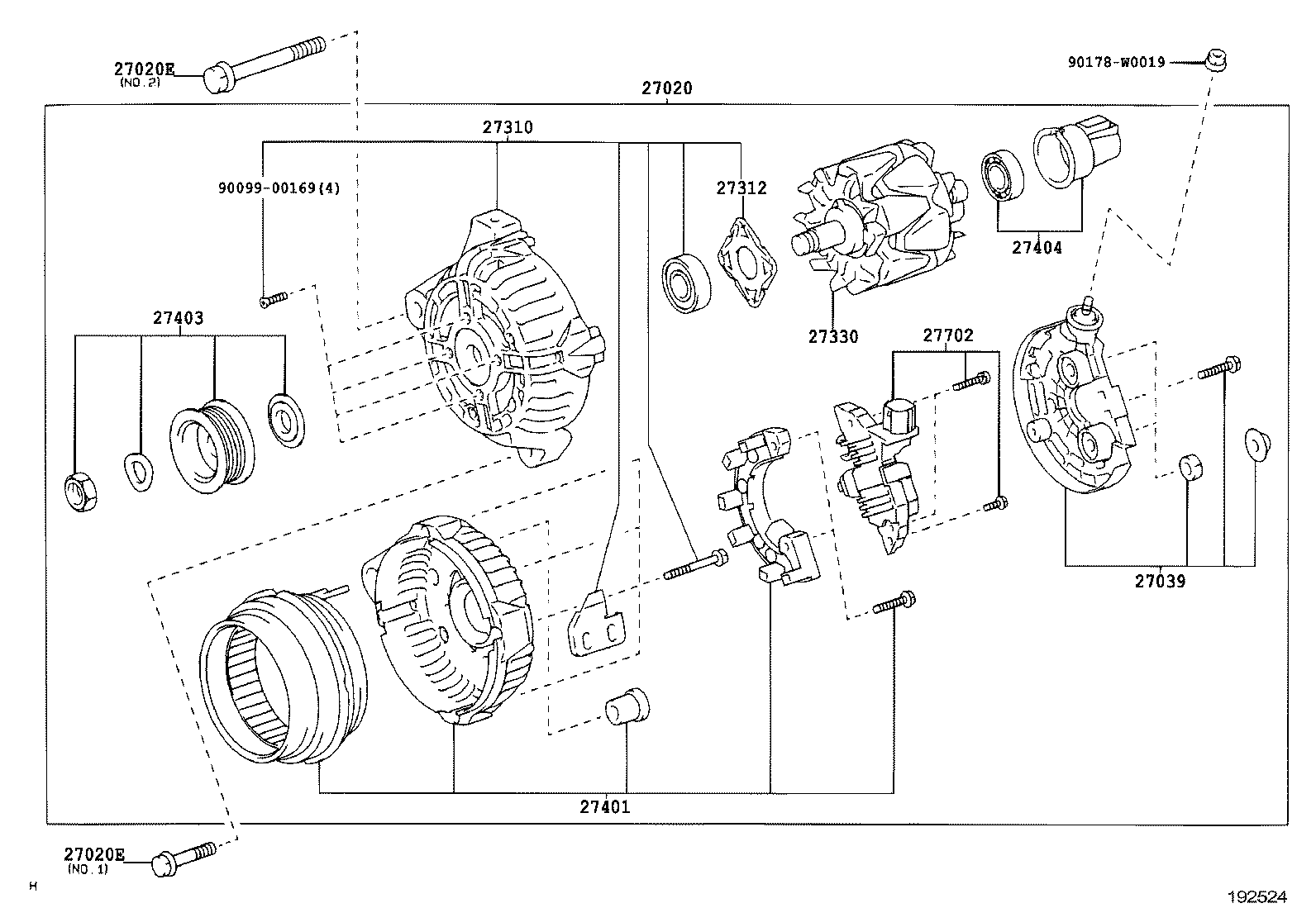

Click highlighted areas on diagram
14V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0H070 |
1AZFE..AZT250 14V 100A |
1 | ||
| 27060-0H070 |
1AZFE..AZT250 14V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91511-J0840 |
1AZFE..AZT250 NO.1 |
1 | ||
| 91512-81085 |
1AZFE..AZT250 NO.2 |
1 | ||
| 91512-81085 |
1AZFE..AZT250 NO.2 |
1 | ||
| 91551-80840 |
1AZFE..AZT250 NO.1 |
1 | ||
| 91511-J0840 |
1AZFE..AZT250 NO.1 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91511-J0840 |
1AZFE..AZT250 NO.1 |
1 | ||
| 91512-81085 |
1AZFE..AZT250 NO.2 |
1 | ||
| 91512-81085 |
1AZFE..AZT250 NO.2 |
1 | ||
| 91551-80840 |
1AZFE..AZT250 NO.1 |
1 | ||
| 91511-J0840 |
1AZFE..AZT250 NO.1 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0H060 |
1AZFE..AZT250 |
1 | ||
| 27039-0H060 |
1AZFE..AZT250 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0H060 |
1AZFE..AZT250 |
1 | ||
| 27310-0H060 |
1AZFE..AZT250 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1AZFE..AZT250 |
1 | ||
| 27312-72100 |
1AZFE..AZT250 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0D110 |
1AZFE..AZT250 |
1 | ||
| 27330-0D110 |
1AZFE..AZT250 |
1 | ||
| 27401 - STATOR SUB-ASSY ALTERNATOR W/RECTIFIER | ||||
| 27401-0H030 |
1AZFE..AZT250 |
1 | ||
| 27401-0H030 |
1AZFE..AZT250 |
1 | ||
| 27403 - PULLEY SET, ALTERNATOR | ||||
| 27403-0H020 |
1AZFE..AZT250 |
1 | ||
| 27403-0H020 |
1AZFE..AZT250 |
1 | ||
| 27404 - BEARING SET, ALTERNATOR | ||||
| 27404-0D010 |
1AZFE..AZT250 |
1 | ||
| 27404-0D010 |
1AZFE..AZT250 |
1 | ||
| 27702 - REGULATOR SUB-ASSY GENERATOR W/BRUSH | ||||
| 27702-0D010 |
1AZFE..AZT250 |
1 | ||
| 27702-0D010 |
1AZFE..AZT250 |
1 | ||
| Common parts | ||||
| 90099-00169 | ||||
| 90178-W0019 | ||||
