AZT250L-AEPNK (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

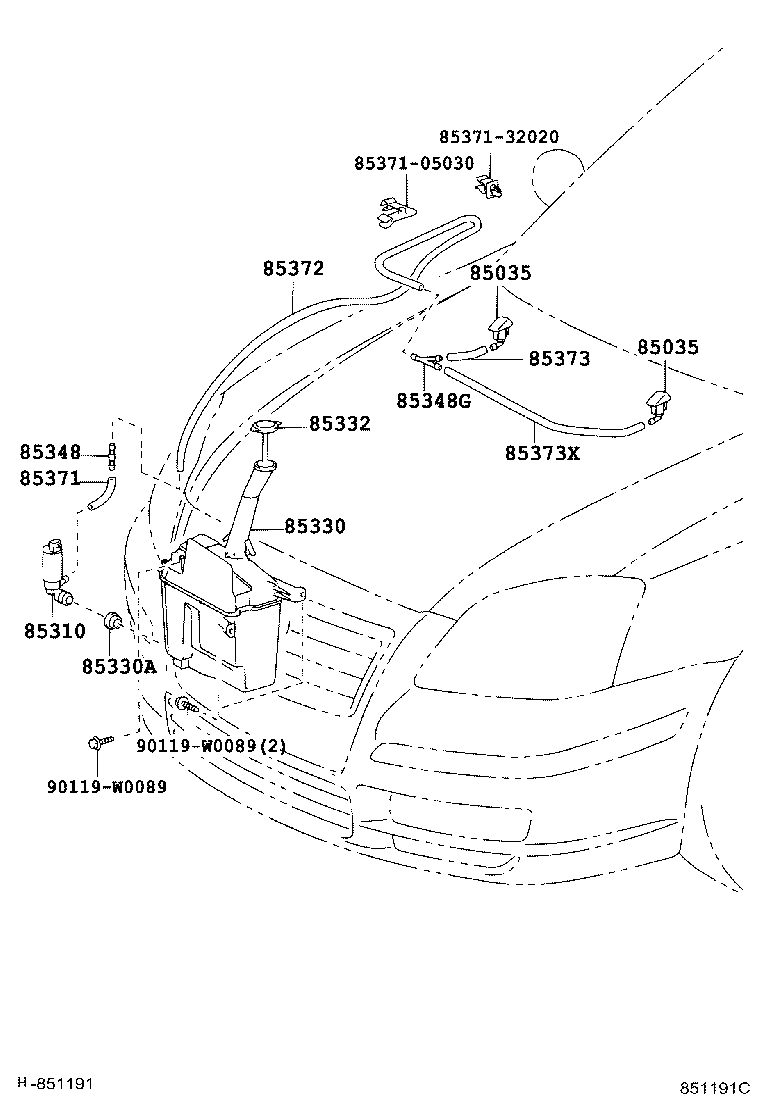

Click highlighted areas on diagram

diagram 85035 85035 85310 85330 85330A 85332 85348 85348G 85371 8537105030 8537132020 85372 85373 85373X 90119W0089 90119W0089
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-05050

AZT250..LHD

 2
85381-05051

AZT250..LHD

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-05050

AZT250..LHD

 2
85381-05051

AZT250..LHD

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-05031

AZT250

 1
85330-05030

AZT250

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-05110

AZT250

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90069-20005

AZT250

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-02090

AZT250

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-05050

AZT250

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85378-05030

AZT250

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90069-46011

AZT250

*H,L=50

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90069-46012

AZT250

*H,L=1735

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90069-16009

AZT250

*H,L=100

 1
85373X - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE), NO.2
90069-16009

AZT250

*H,L=640

 1
Common parts
85371-05030
85371-32020
90119-W0089
