AZT250L-AEPNK (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

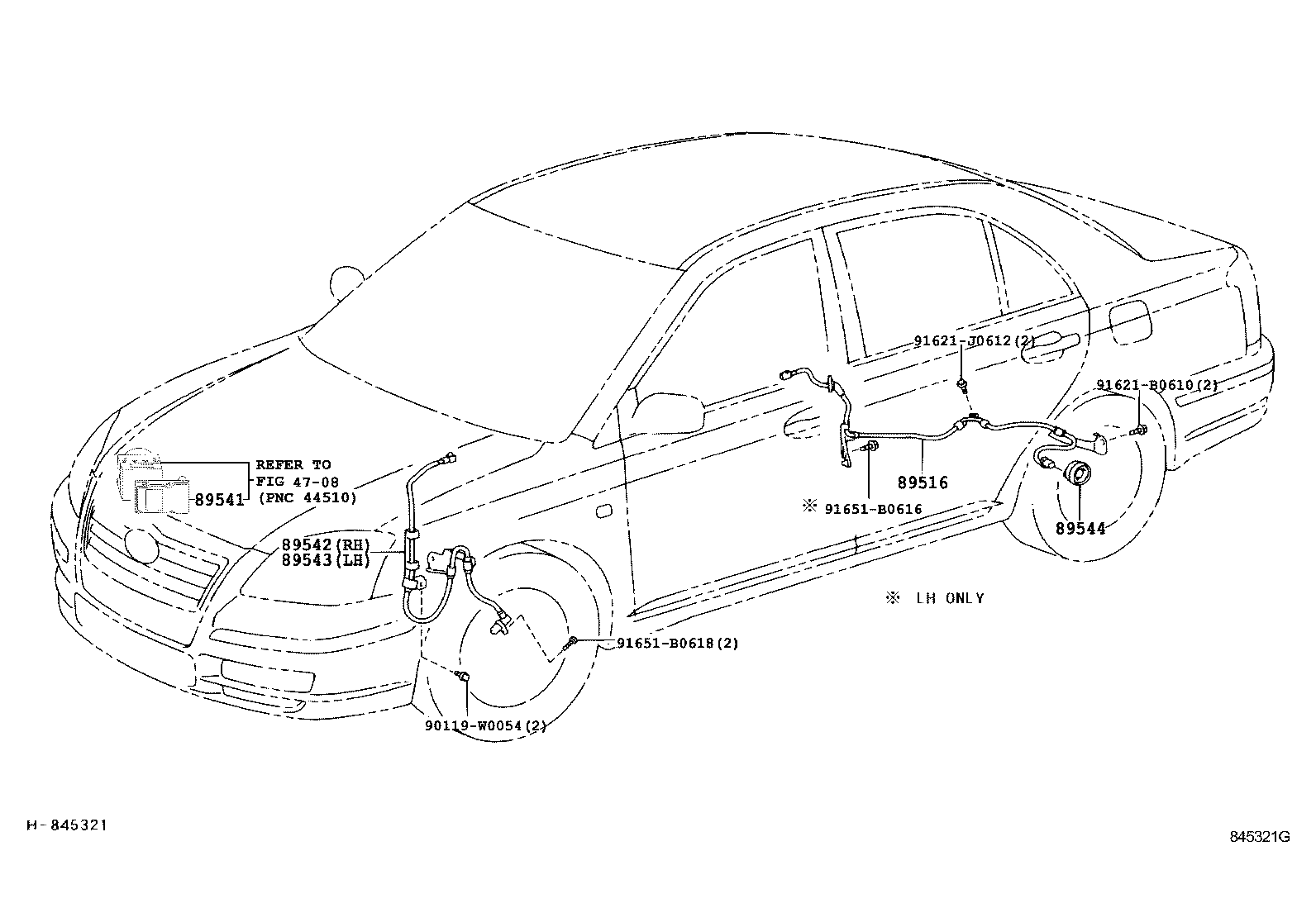

Click highlighted areas on diagram

diagram 4708 89516 89541 89542 89543 89544 90119W0054 91621B0610 91621J0612 91651B0616 91651B0618
Part # Description Qty Price
89516 - WIRE, SKID CONTROL SENSOR
89516-05030

AZT250

LH

 1
89516-05010

AZT250

RH

 1
89541 - COMPUTER, SKID CONTROL
89541-05060

AZT250

 1
89541-05062

AZT250

 1
89542 - SENSOR, SPEED, FRONT RH
89542-02040

AZT250

 1
89543 - SENSOR, SPEED, FRONT LH
89543-02040

AZT250

 1
89544 - SENSOR, SKID CONTROL
89544-32040

AZT250

(J)

 2
89544-02010

AZT250

(L)

 2
89544-02010

AZT250

 2
Common parts
90119-W0054
91621-B0610
91621-J0612
91651-B0616
91651-B0618
Linked diagrams
4708
