AZT250L-AEPNK (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

Click highlighted areas on diagram

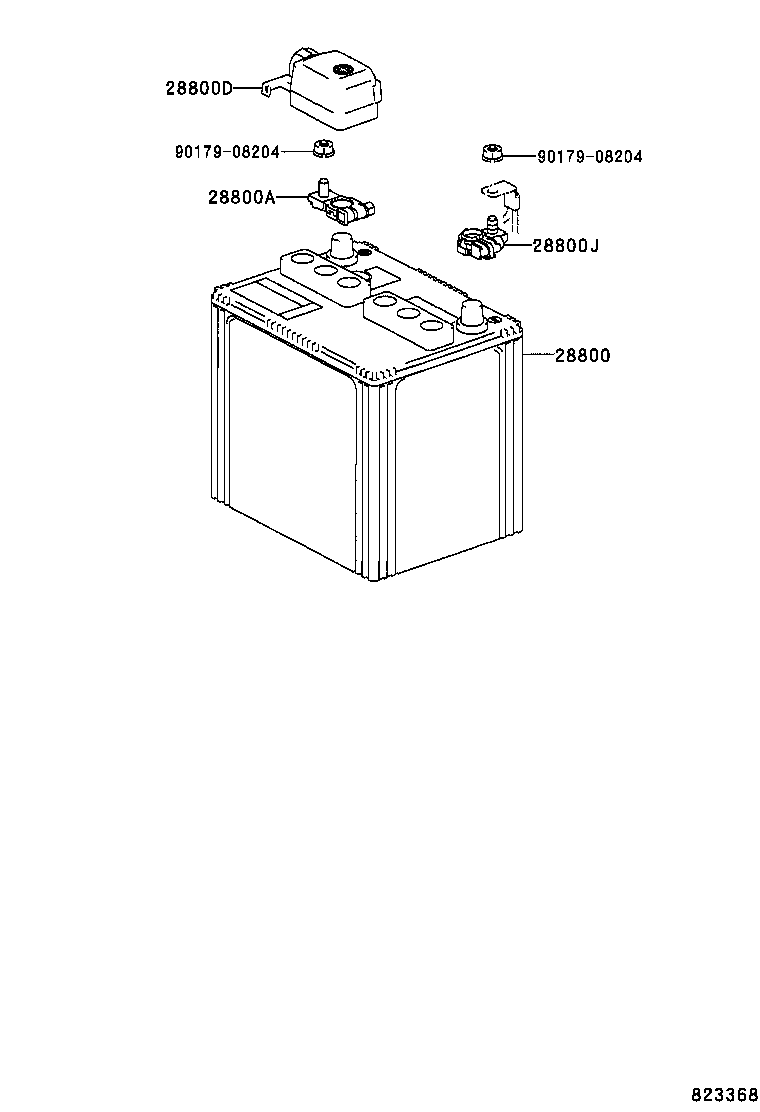

diagram 28800 28800A 28800D 28800J 9017908204 9017908204
Part # Description Qty Price
28800 - BATTERY
28800-0D380

1AZFE..AZT250

LN2,LN2

 1
28800-0N030

1AZFE..AZT250

LN2,LN2

 1
28800-0D210

1AZFE..AZT250

LN2,LN2

 1
28800-0D200

1AZFE..AZT250

LN1

 1
28800-0D310

1AZFE..AZT250

LN1

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05056

1AZFE..AZT250

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12500

1AZFE..AZT250

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06056

1AZFE..AZT250

 1
90982-06028

1AZFE..AZT250

 1
Common parts
90179-08204
