AZT250L-AEPNK (2003)
Toyota Avensis

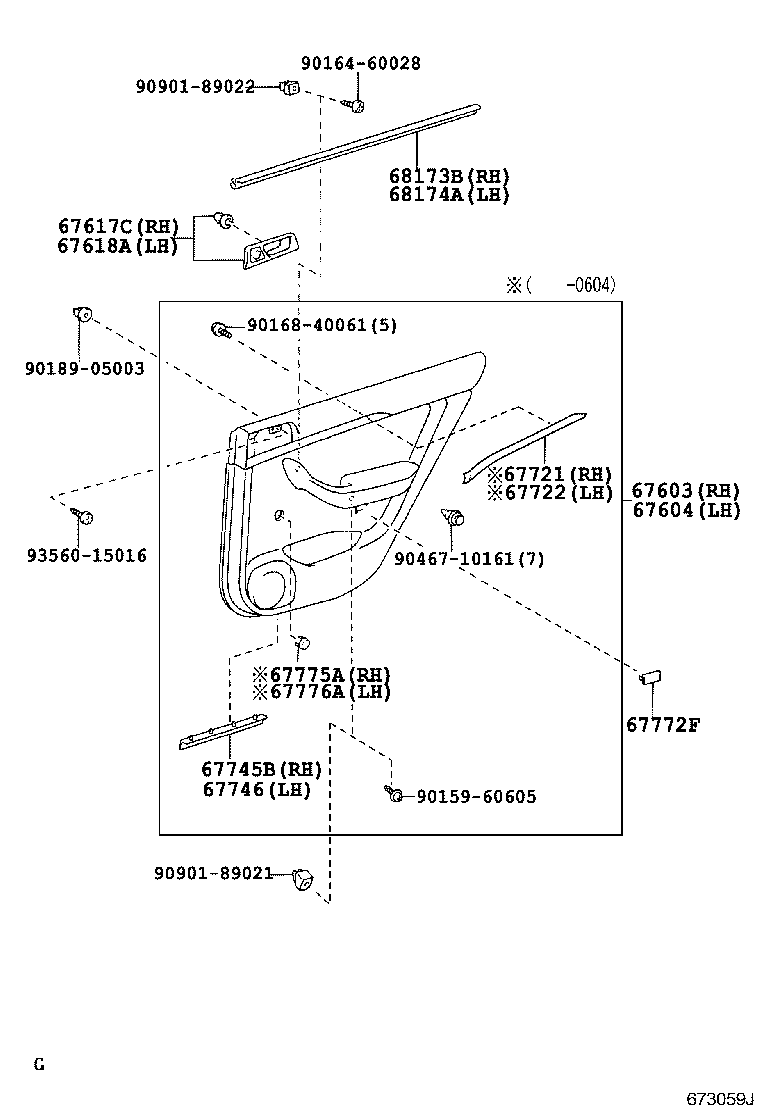

ILLUST NO. 1 OF 2(0301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67010-05150A0 |
AZT250 POWER WINDOW-FR2, RR2,IVORY,TRIM0# |
1 | ||
| 67010-05150B0 |
AZT250 POWER WINDOW-FR2, RR2,DK. GRAY,TRIM1# |
1 | ||
| 67010-05180A0 |
AZT250 IVORY,TRIM0# |
1 | ||
| 67010-05180B0 |
AZT250 DK. GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67020-05250B0 |
AZT250 DK. GRAY,TRIM1# |
1 | ||
| 67020-05250A0 |
AZT250 IVORY,TRIM0# |
1 | ||
| 67020-05150B0 |
AZT250 POWER WINDOW-FR2, RR2,DK. GRAY,TRIM1# |
1 | ||
| 67020-05150A0 |
AZT250 POWER WINDOW-FR2, RR2,IVORY,TRIM0# |
1 | ||
| 67617C - BASE, REAR DOOR TRIM, RH | ||||
| 67617-05030B0 |
AZT250 DK. GRAY,TRIM0#,1# |
1 | ||
| 67618A - BASE, REAR DOOR TRIM, LH | ||||
| 67618-05030B0 |
AZT250 DK. GRAY,TRIM0#,1# |
1 | ||
| 67721 - COVER, REAR DOOR TRIM, RH | ||||
| 67721-05030 |
AZT250 |
1 | ||
| 67722 - COVER, REAR DOOR TRIM, LH | ||||
| 67722-05030 |
AZT250 |
1 | ||
| 67745B - SEAL, REAR DOOR TRIM, RH | ||||
| 67745-05010 |
AZT250 |
1 | ||
| 67746 - SEAL, REAR DOOR TRIM, LH | ||||
| 67746-05010 |
AZT250 |
1 | ||
| 67772F - CAP, REAR DOOR TRIM RETAINER | ||||
| 67772-05030B0 |
AZT250 DK.GRAY,TRIM1# |
2 | ||
| 67772-05030A0 |
AZT250 IVORY,TRIM0# |
2 | ||
| 67775A - COVER, REAR DOOR TRIM, LOWER RH | ||||
| 67775-05010A0 |
AZT250 POWER WINDOW-FR2, RR2,IVORY,TRIM0# |
1 | ||
| 67775-05010B0 |
AZT250 POWER WINDOW-FR2, RR2,DK.GRAY,TRIM1# |
1 | ||
| 67775-05010A0 |
AZT250 IVORY,TRIM0# |
1 | ||
| 67775-05010B0 |
AZT250 DK.GRAY,TRIM1# |
1 | ||
| 67776A - COVER, REAR DOOR TRIM, LOWER LH | ||||
| 67776-05010A0 |
AZT250 IVORY,TRIM0# |
1 | ||
| 67776-05010A0 |
AZT250 POWER WINDOW-FR2, RR2,IVORY,TRIM0# |
1 | ||
| 67776-05010B0 |
AZT250 POWER WINDOW-FR2, RR2,DK.GRAY,TRIM1# |
1 | ||
| 67776-05010B0 |
AZT250 DK.GRAY,TRIM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-05091 |
AZT250 |
1 | ||
| 68173-05090 |
AZT250 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-05090 |
AZT250 |
1 | ||
| 68174-05091 |
AZT250 |
1 | ||
| Common parts | ||||
| 90159-60605 | ||||
| 90164-60028 | ||||
| 90168-40061 | ||||
| 90189-05003 | ||||
| 90467-10161 | ||||
| 90901-89021 | ||||
| 90901-89022 | ||||
| 93560-15016 | ||||

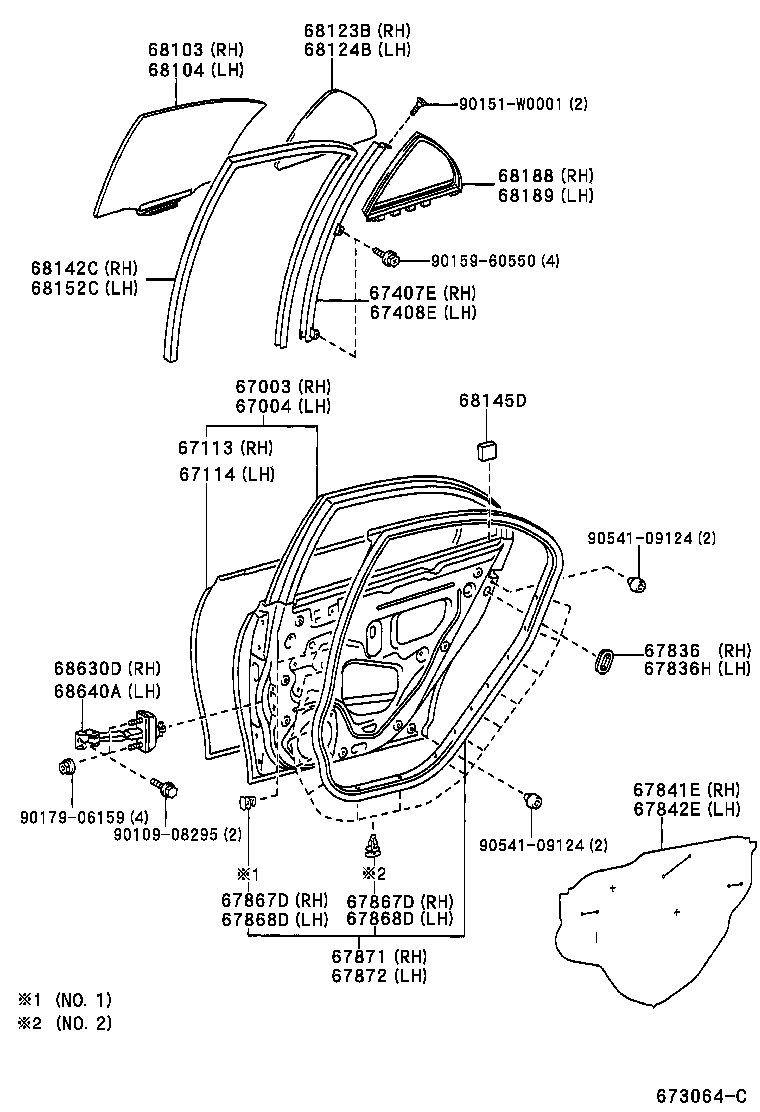

ILLUST NO. 2 OF 2(0301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-05110 |
AZT250 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-05110 |
AZT250 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-05030 |
AZT250 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-05030 |
AZT250 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-05060 |
AZT250 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-05060 |
AZT250 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
AZT250 |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
AZT250 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67805-05060 |
AZT250 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67805-05060 |
AZT250 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 90467-04034 |
AZT250 NO.1 |
1 | ||
| 67867-12150 |
AZT250 NO.2 |
14 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 90467-04034 |
AZT250 NO.1 |
1 | ||
| 67867-12150 |
AZT250 NO.2 |
14 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AZT250 NO.2 |
14 | ||
| 90467-04034 |
AZT250 NO.1 |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AZT250 NO.2 |
14 | ||
| 90467-04034 |
AZT250 NO.1 |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-05080 |
AZT250 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-05080 |
AZT250 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-05100 |
AZT250 *TEM,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-05100 |
AZT250 *TEM,T=3.1,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-05050 |
AZT250 *TEM,T=3.1,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-05050 |
AZT250 *TEM,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-05070 |
AZT250 |
1 | ||
| 68145D - CUSHION, REAR DOOR WINDOW | ||||
| 69759-12110 |
AZT250 |
2 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-05070 |
AZT250 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-05030 |
AZT250 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-05030 |
AZT250 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-05040 |
AZT250 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-05040 |
AZT250 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90151-W0001 | ||||
| 90159-60550 | ||||
| 90179-06159 | ||||
| 90541-09124 | ||||
