AZT250L-AEPGK (2006)
Toyota Avensis
(0604- )

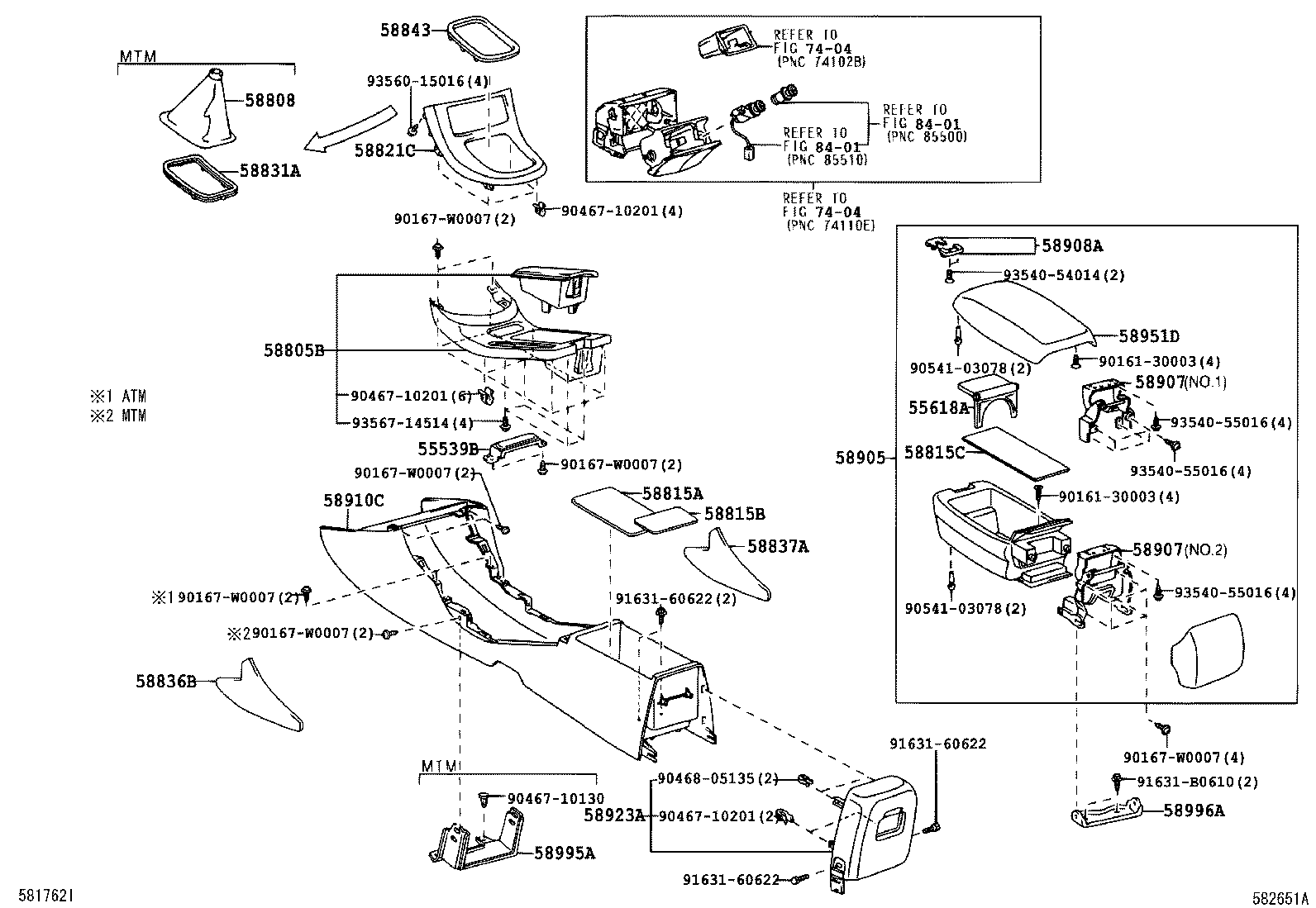

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-05070B0 |
AZT250..LHD DK.GRAY,TRIM1# |
1 | ||
| 55539-05070E0 |
AZT250..LHD GREGE,TRIM4# |
1 | ||
| 55539-05070A0 |
AZT250..LHD IVORY,TRIM0# |
1 | ||
| 55539-05070B0 |
AZT250..LHD DK.GRAY,TRIM1# |
1 | ||
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55630-05030 |
AZT250 |
1 | ||
| 58805B - PANEL SUB-ASSY, CONSOLE, LOWER | ||||
| 58805-05010A0 |
AZT250..LHD IVORY,TRIM0# |
1 | ||
| 58805-05010B0 |
AZT250..LHD DK.GRAY,TRIM1# |
1 | ||
| 58805-05010B0 |
AZT250..LHD DK.GRAY,TRIM1# |
1 | ||
| 58805-05011B0 |
AZT250..LHD DK.GRAY,TRIM1# |
1 | ||
| 58805-05012B0 |
AZT250..LHD DK.GRAY,TRIM1# |
1 | ||
| 58805-05012E0 |
AZT250..LHD GREGE,TRIM4# |
1 | ||
| 58805-05010E0 |
AZT250..LHD GREGE,TRIM4# |
1 | ||
| 58805-05011E0 |
AZT250..LHD GREGE,TRIM4# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-05010 |
AZT250 |
1 | ||
| 58815-05010 |
AZT250 |
1 | ||
| 58815B - CARPET, CONSOLE BOX | ||||
| 58815-05020 |
AZT250 |
1 | ||
| 58815-05020 |
AZT250 |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-05030 |
AZT250 |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-05010 |
AZT250 |
1 | ||
| 58821-05010 |
AZT250 |
1 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-05010 |
AZT250 |
1 | ||
| 58836-05010 |
AZT250 |
1 | ||
| 58837A - PAD, CONSOLE BOX SILENCER, NO.2 | ||||
| 58837-05010 |
AZT250 |
1 | ||
| 58837-05010 |
AZT250 |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-05050 |
AZT250..4FC |
1 | ||
| 58843-05050 |
AZT250..4FC |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-05070E0 |
AZT250 GREGE,TRIM4# |
1 | ||
| 58905-05050E0 |
AZT250 LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4# |
1 | ||
| 58905-05050B5 |
AZT250 LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1# |
1 | ||
| 58905-05070B0 |
AZT250 DARK GREY,TRIM1# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-05010 |
AZT250 NO.1 |
1 | ||
| 58907-05020 |
AZT250 NO.2 |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-05010 |
AZT250 NO.1 |
1 | ||
| 58907-05020 |
AZT250 NO.2 |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-05010 |
AZT250 |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58911-05070B0 |
AZT250 DK.GRAY,TRIM1# |
1 | ||
| 58911-05070B0 |
AZT250 DK.GRAY,TRIM1# |
1 | ||
| 58911-05070A0 |
AZT250 IVORY,TRIM0# |
1 | ||
| 58911-05070E0 |
AZT250 GREGE,TRIM4# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-05010A0 |
AZT250 IVORY,TRIM0# |
1 | ||
| 58923-05010B0 |
AZT250 DK.GRAY,TRIM1# |
1 | ||
| 58923-05020B0 |
AZT250 DK.GRAY,TRIM1# |
1 | ||
| 58923-05020E0 |
AZT250 GREGE,TRIM4# |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-05050B3 |
AZT250 LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1# |
1 | ||
| 58951-05070B0 |
AZT250 DARK GREY,TRIM1# |
1 | ||
| 58951-05050E0 |
AZT250 LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4# |
1 | ||
| 58951-05070E0 |
AZT250 GREGE,TRIM4# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-05030 |
AZT250 |
1 | ||
| 58996-05020 |
AZT250 |
1 | ||
| Common parts | ||||
| 90161-30003 | ||||
| 90167-W0007 | ||||
| 90467-10130 | ||||
| 90467-10201 | ||||
| 90468-05135 | ||||
| 90541-03078 | ||||
| 91631-60622 | ||||
| 91631-B0610 | ||||
| 93540-54014 | ||||
| 93540-55016 | ||||
| 93560-15016 | ||||
| 93567-14514 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
