AZT250L-AEMNK (2003)
Toyota Avensis

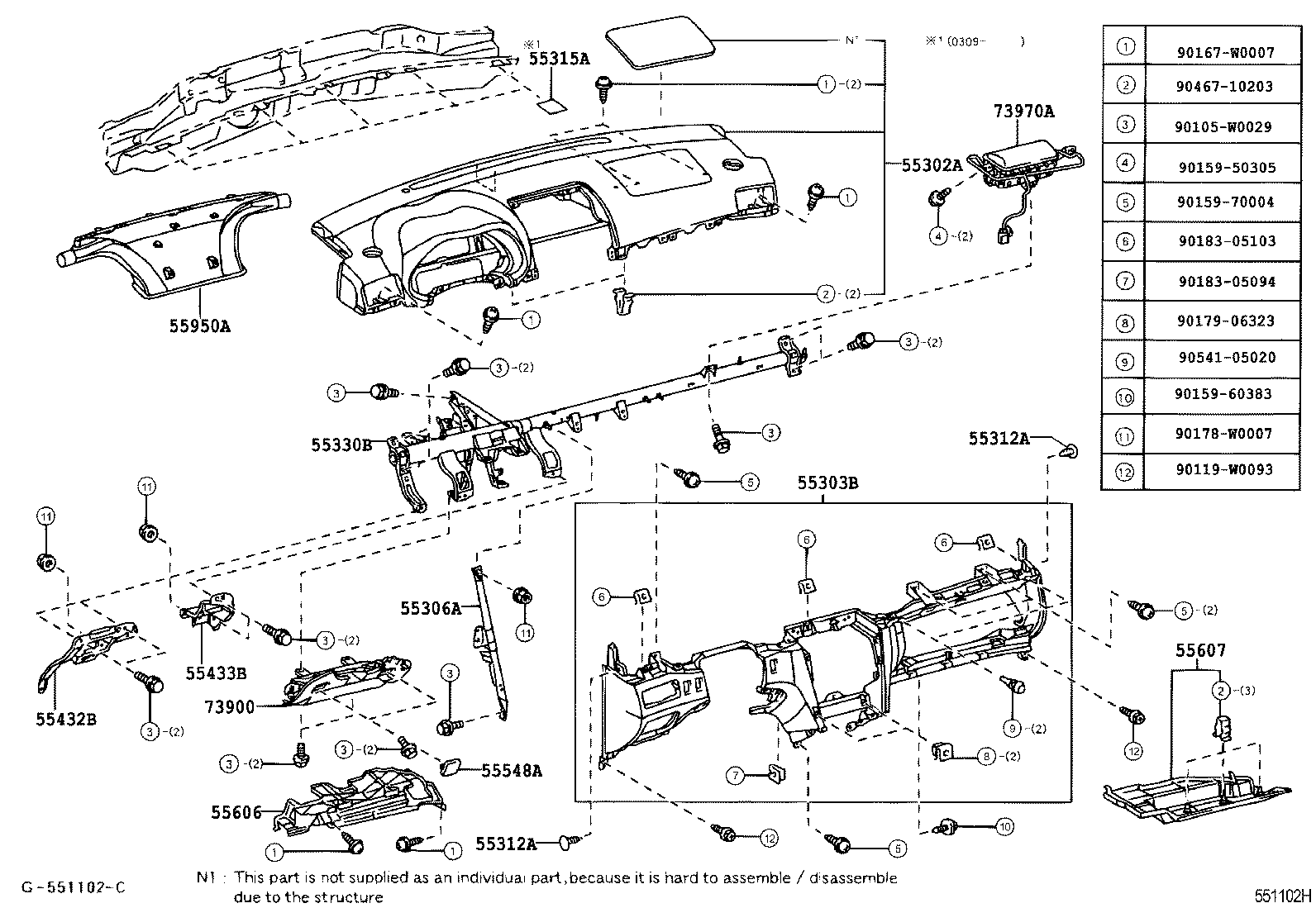

ILLUST NO. 1 OF 3(0301-0604)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-05010B0 |
AZT250..LHD DK.GRAY,TRIM0#,1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-05011A0 |
AZT250..LHD IVORY,TRIM0# |
1 | ||
| 55303-05011B0 |
AZT250..LHD DK.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-05080 |
AZT250..LHD |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161B0 |
AZT250 DK.GRAY,TRIM1# |
2 | ||
| 90467-05161A0 |
AZT250 IVORY,TRIM0# |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161B0 |
AZT250 DK.GRAY,TRIM1# |
2 | ||
| 90467-05161A0 |
AZT250 IVORY,TRIM0# |
2 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-05050 |
AZT250 |
5 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-05111 |
AZT250..LHD |
1 | ||
| 55330-05110 |
AZT250..LHD |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-20390 |
AZT250..LHD |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-20170 |
AZT250..LHD |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-05030A0 |
AZT250 IVORY,TRIM0# |
2 | ||
| 55548-05030B0 |
AZT250 DK.GRAY,TRIM1# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-05030 |
AZT250..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-05010 |
AZT250..LHD |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-05050 |
AZT250..LHD |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-05010A0 |
AZT250..LHD IVORY,TRIM0# |
1 | ||
| 73900-05010B0 |
AZT250..LHD DK.GRAY,TRIM1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-05070 |
AZT250..LHD |
1 | ||
| Common parts | ||||
| 90105-W0029 | ||||
| 90119-W0093 | ||||
| 90159-50305 | ||||
| 90159-60383 | ||||
| 90159-70004 | ||||
| 90167-W0007 | ||||
| 90178-W0007 | ||||
| 90179-06323 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 90541-05020 | ||||
ILLUST NO. 2 OF 3(0301- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55064-05010 |
AZT250 |
1 | ||
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55063-05040 |
AZT250 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-05010 |
AZT250 |
1 | ||
| 55404-05011 |
AZT250 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-05010B0 |
AZT250..LHD DK. GRAY,TRIM0#,1# |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-05010 |
AZT250 |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-05030 |
AZT250..LHD |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-05030 |
AZT250..LHD |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-05080B0 |
AZT250..LHD DK.GRAY,TRIM0#,1# |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-05010 |
AZT250..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-05130 |
AZT250 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-05090 |
AZT250 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
AZT250 DK.GRAY,TRIM0#,1# |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
AZT250 DK.GRAY,TRIM0#,1# |
2 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
ILLUST NO. 3 OF 3(0301- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35010 |
AZT250 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-05040 |
AZT250..LHD |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-05160 |
AZT250 AUDIO-W/COVER 8SP/RADIOLESS |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-05160 |
AZT250 AUDIO-W/COVER 8SP/RADIOLESS |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-35020B1 |
AZT250 DK.GRAY,TRIM1# |
1 | ||
| 55506-35020A0 |
AZT250 IVORY,TRIM0# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
AZT250 AUDIO-W/COVER 8SP/RADIOLESS |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
AZT250 AUDIO-W/COVER 8SP/RADIOLESS |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-05050 |
AZT250..LHD |
2 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-05060B0 |
AZT250 DK.GRAY,TRIM1# |
1 | ||
| 55539-05060A0 |
AZT250 IVORY,TRIM0# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-05010A0 |
AZT250..LHD IVORY,TRIM0# |
1 | ||
| 55540-05010B0 |
AZT250..LHD DK.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-05070A0 |
AZT250..LHD IVORY,TRIM0# |
1 | ||
| 55550-05070B0 |
AZT250..LHD DK.GRAY,TRIM1# |
1 | ||
| 84656J - COVER, BEZEL SWITCH HOLE | ||||
| 84656-05040B0 |
AZT250..LHD DK.GRAY,TRIM1# |
1 | ||
| 84656-05040A0 |
AZT250..LHD IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90167-W0001 | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
