F654RM-GQSFT (2015)

Toyota Avanza

Production Aug 2015 - Apr 2019
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

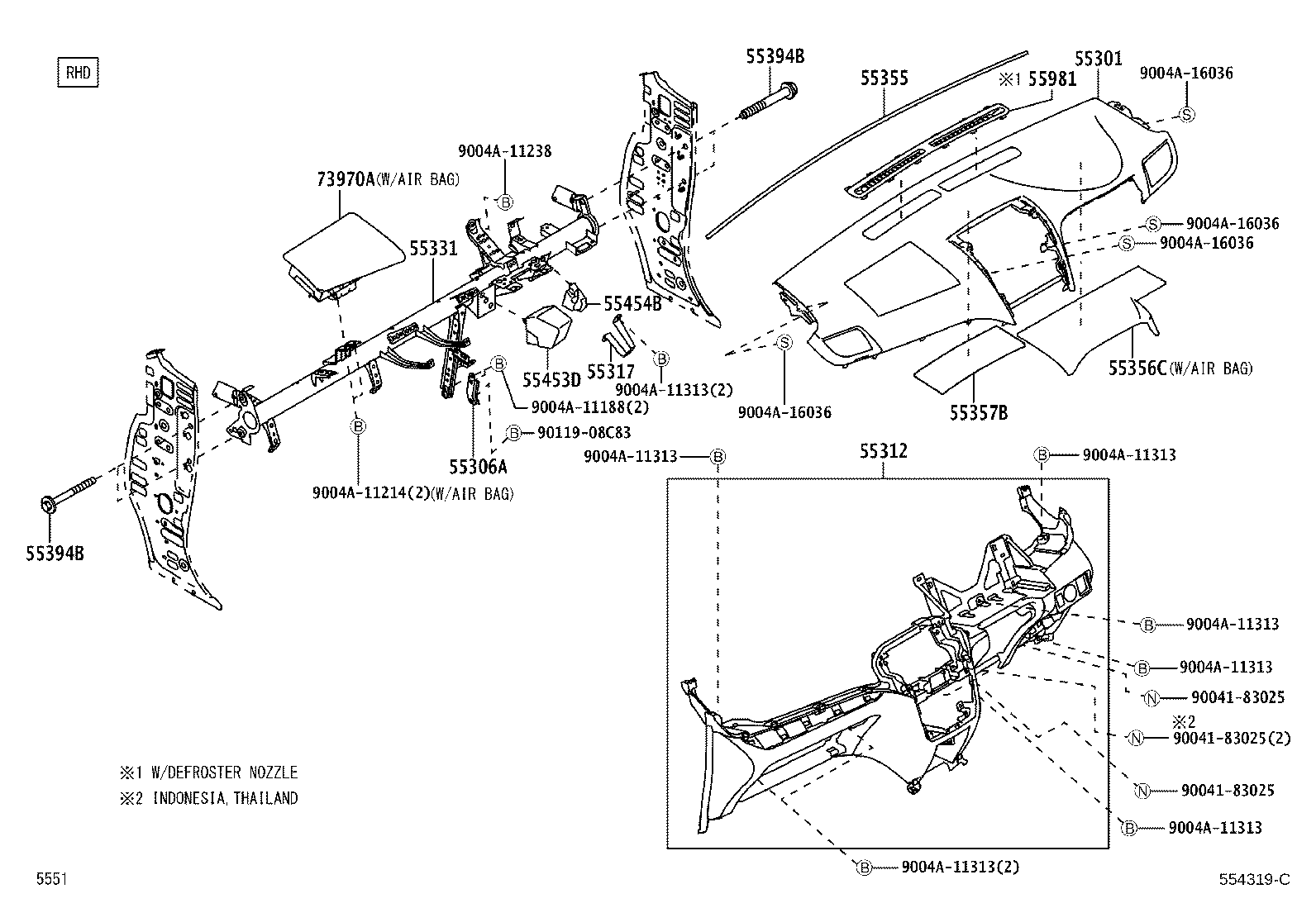

ILLUST NO. 1 OF 2(1901- )IDN ; (1904- )MA,SA,TH

Click highlighted areas on diagram

diagram 55301 55306A 55312 55317 55331 55355 55356C 55357B 55394B 55394B 55453D 55454B 55981 73970A 9004183025 9004183025 9004183025 9004A11188 9004A11214 9004A11238 9004A11313 9004A11313 9004A11313 9004A11313 9004A11313 9004A11313 9004A11313 9004A16036 9004A16036 9004A16036 9004A16036 9011908C83
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-BZ351B0

F653..MA;F653..SPO;F654..RHD..4AT..MID;F654..(SPO,STD)..(IDN,MA,TH)

DK.GRAY,TRIM1#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-BZ110

F65#..RHD

 1
55312 - PANEL, INSTRUMENT, LOWER
55312-BZ081B0

F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH)

DK.GRAY,TRIM1#

 1
55317 - PATCH, INSTRUMENT PANEL
55315-BZ110

F65#..RHD

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55305-BZ600

F65#..IDN,TH

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-BZ130

F65#..RHD

 1
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55357-BZ072

F65#

 1
55394B - BOLT, INSTRUMENT PANEL
55394-BZ020

F65#

 4
55394B - BOLT, INSTRUMENT PANEL
55394-BZ020

F65#

 4
55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1
55453-B0010

F65#..RHD

 1
55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2
55454-B0040

F65#..RHD

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-BZ170B0

F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD)

DK.GRAY,TRIM1#

 1
Common parts
90041-83025
9004A-11188
9004A-11214
9004A-11238
9004A-11313
9004A-16036
90119-08C83

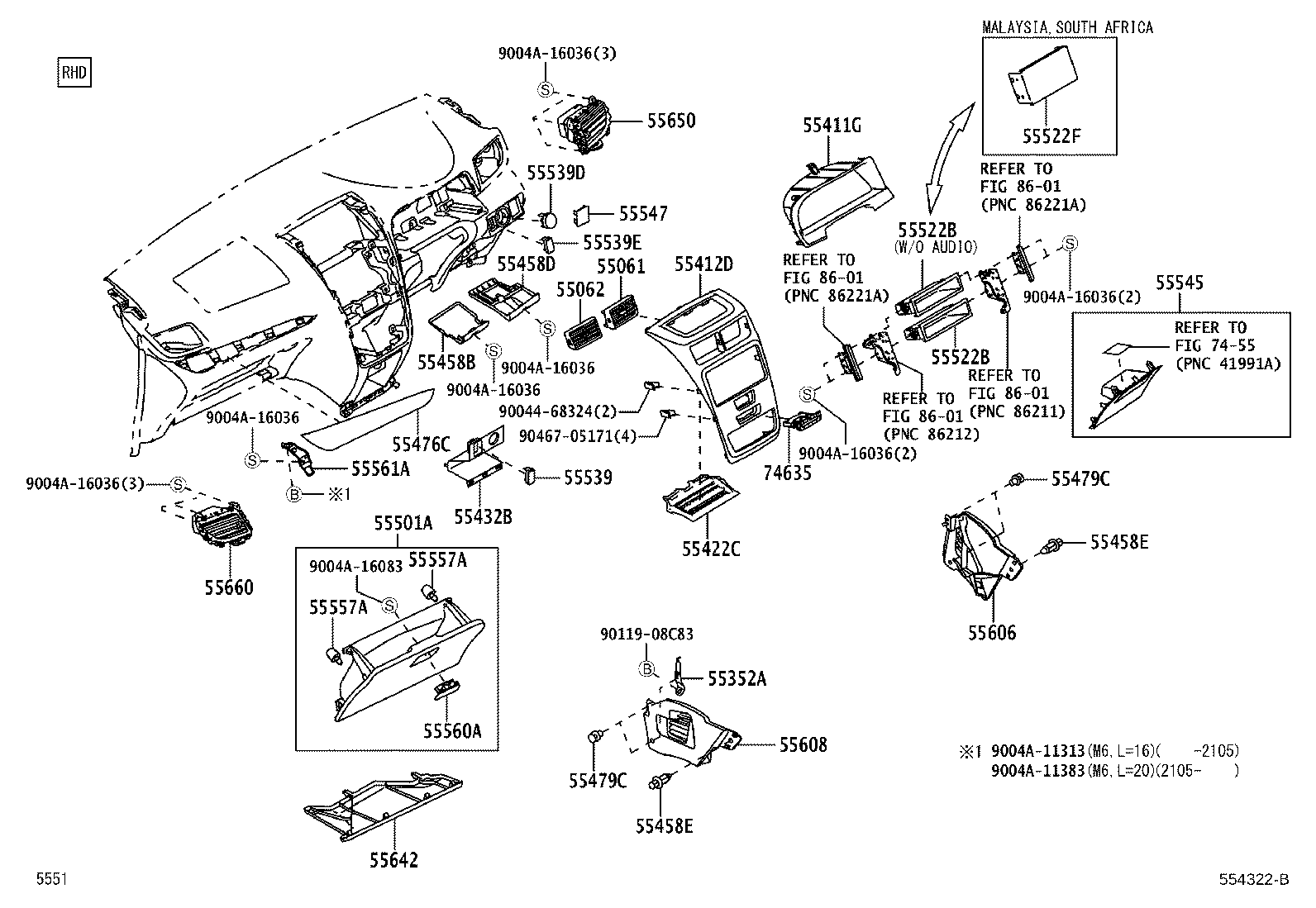

ILLUST NO. 2 OF 2(1901- )IDN ; (1904- )MA,SA,TH

Click highlighted areas on diagram

diagram 55061 55062 55352A 55411G 55412D 55422C 55432B 55458B 55458D 55458E 55458E 55476C 55479C 55479C 55501A 55522B 55522B 55522F 55539 55539D 55539E 55545 55547 55557A 55557A 55560A 55561A 55606 55608 55642 55650 55660 7455 74635 8601 8601 8601 8601 9004468324 9004A11313 9004A11383 9004A16036 9004A16036 9004A16036 9004A16036 9004A16036 9004A16036 9004A16036 9004A16083 9011908C83 9046705171
Part # Description Qty Price
55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2
55352-BZ040

F65#..RHD

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-BZ220C0

F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK,TRIM1#

 1
55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER
55422-BZ040C0

F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK,TRIM1#

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-BZ080B0

F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

DK.GRAY,TRIM1#

 1
55458B - COVER, INSTRUMENT, LWR
55458-BZ020C0

F653..SPO;F654..5F..PHL;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK,TRIM1#

 1
55458D - COVER, INSTRUMENT LOWER, RH
55458-BZ040C0

F653..4AT..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD);F653..RHD..5F..(LO,SPO,STD,VB)

BLACK,TRIM1#

 1
55458E - CLIP(FOR INSTRUMENT LOWER COVER)
90044-67579C2

F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK,TRIM1#

 2
90044-67579C2

F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK,TRIM1#

 2
55458E - CLIP(FOR INSTRUMENT LOWER COVER)
90044-67579C2

F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK,TRIM1#

 2
90044-67579C2

F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK,TRIM1#

 2
55479C - CLIP(FOR INSTRUMENT LOWER COVER)
9004A-46388

F65#

 4
9004A-46388

F65#

 4
55479C - CLIP(FOR INSTRUMENT LOWER COVER)
9004A-46388

F65#

 4
9004A-46388

F65#

 4
55539 - COVER, SPARE SWITCH HOLE
55539-BZ090C0

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

BLACK

 1
55539-B2030C1

F653;F654..MID..(IDN,MA,MXC,PHL,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK

 1
55539-BZ090C0

F65#..GCC,GEN,IDN,MXC,PHL,SA,TH

BLACK

 1
55539D - COVER, SPARE SWITCH HOLE
55539-B1030C0

F654..MA,SA,TH;F653..RHD..5F..(LO,STD,VB)

BLACK,TRIM1#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-BZ090C0

F653..SPO;F654..MID..TH;F654..(SPO,STD)..(IDN,MA,TH)

BLACK,TRIM1#

 1
55545 - COVER, FUSE BOX OPENING
55540-BZ010B0

F653..4AT..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD);F653..RHD..5F..(LO,SPO,STD,VB)

DK.GRAY,TRIM1#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-B2040

F65#

 2
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-B2040

F65#

 2
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55641-BZ170C0

F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK,TRIM1#

 1
55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3
55646-BZ110C0

F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK,TRIM1#

 1
55642 - COVER, INSTRUMENT PANEL UNDER, NO.2
55642-BZ121C1

F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH)

BLACK,TRIM1#

 1
55642-BZ122C1

F65#..MA,SA,TH

BLACK,TRIM1#

 1
55642-BZ121C0

F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH)

BLACK,TRIM1#

 1
55642-BZ122C1

F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD)

BLACK,TRIM1#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-BZ170C2

F654..MID..(MXC,SA);F654..SPO..(PHL,TH)

BLACK,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-BZ090C2

F654..MID..(MXC,SA);F654..SPO..(PHL,TH)

BLACK,TRIM1#

 1
74635 - HOLDER, CARD
74635-BZ090C0

F653..SPO;F654..MID..(SA,TH);F654..(SPO,STD)..(IDN,MA,PHL,TH)

BLACK METALLIC,TRIM1#

 1
Common parts
90044-68324
9004A-11313
9004A-11383
9004A-16036
9004A-16083
90119-08C83
90467-05171
Linked diagrams
7455
8601
