F654RM-GQSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )1NRVE,2NRVE

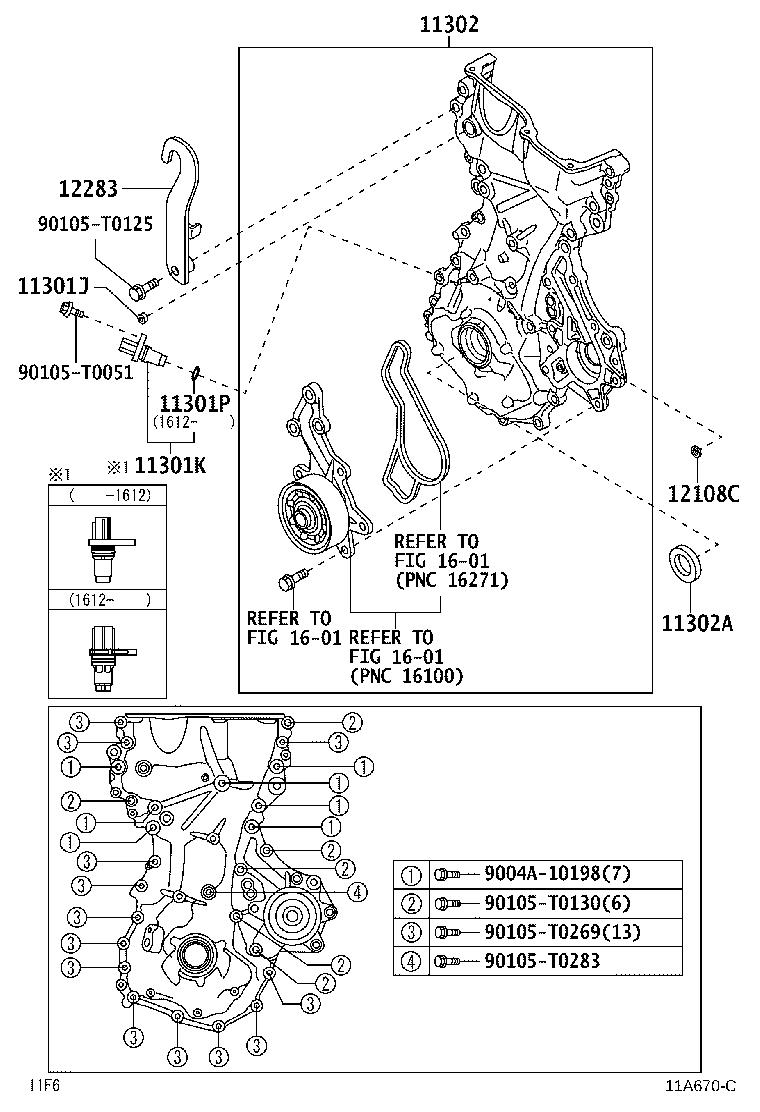

Click highlighted areas on diagram

diagram 11301J 11301K 11301P 11302 11302A 12108C 12283 1601 1601 1601 9004A10198 90105T0051 90105T0125 90105T0130 90105T0269 90105T0283
Part # Description Qty Price
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90043-44022

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
90344-53008

1NRVE,2NRVE..F653,654

 1
90043-44022

1NRVE,2NRVE..F65#

 1
11301K - SENSOR, CRANK POSITION
9004A-19004

1NRVE,2NRVE..F653,654

 1
90919-T5001

1NRVE,2NRVE..F65#

 1
90919-T5001

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
11301P - O RING, CRANK POSITION SENSOR
9004A-30059

1NRVE,2NRVE..F65#

 1
9004A-30059

2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-BZ130

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
11310-BZ130

1NRVE,2NRVE..F65#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-T0076

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
90311-T0076

1NRVE,2NRVE..F65#

 1
12108C - GASKET
16258-0Y010

1NRVE,2NRVE..F65#

 1
16258-0Y010

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
12283 - HANGER, ENGINE, NO.3
12283-BZ030

1NRVE,2NRVE..F65#

 1
12283-BZ030

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
Common parts
9004A-10198
90105-T0051
90105-T0125
90105-T0130
90105-T0269
90105-T0283
Linked diagrams
1601
