Toyota Avanza F654 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
AVANZA
F654RM-GQMFT (2015)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

F654RM-GQMFT (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999

Engine 2NRVE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

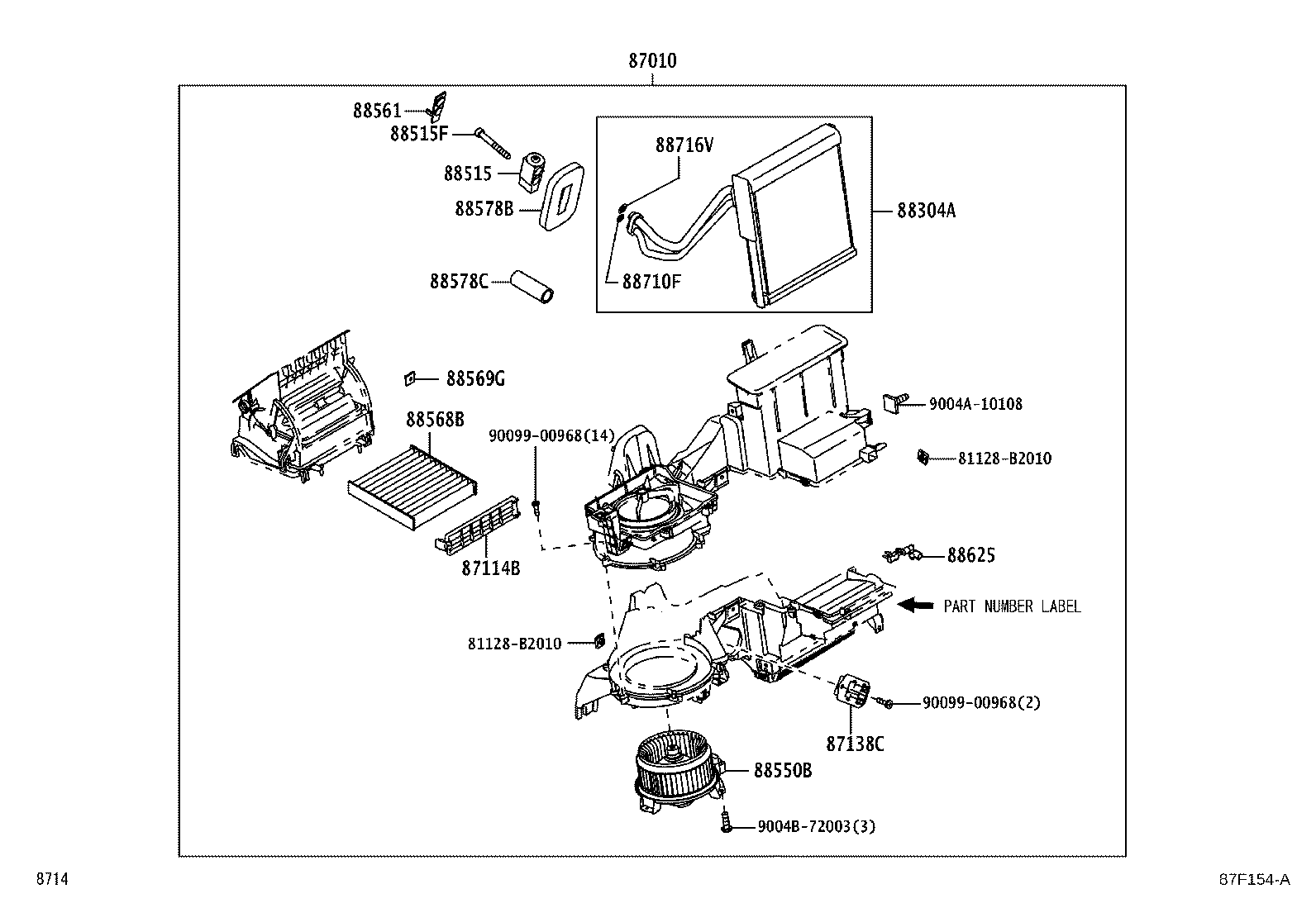

ILLUST NO. 2 OF 3(1508-1904)MA,TH

Click highlighted areas on diagram

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
88510-BZ282	F65#..MA,TH W/PART NUMBER LABEL	06/2018 - 02/2019	1
88510-BZ280	F65#..MA,TH	08/2015 - 04/2017	1
88510-BZ281	F65#..MA,TH	05/2017 - 05/2018	1
88510-BZ292	F65#..IDN,MA,TH W/PART NUMBER LABEL	02/2019 - 12/2999	1
88510-BZ283	F654..MA,TH W/PART NUMBER LABEL	02/2019 - 04/2019	1
87114B - COVER, HEATER
87114-BZ020	F65#..IDN,MA,TH	01/2019 - 12/2999	1
87114-BZ020	F65#..GCC,GEN,MA,MXC,PHL,SA,TH WITH CLEAN AIR FILTER	08/2015 - 04/2019	1
87138C - RESISTOR, BLOWER
87138-BZ140	F65#	01/2019 - 12/2999	1
88304A - COOLER, EVAPORATOR
88304-BZ070	F65#..IDN,MA,TH	01/2019 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-BZ150	F653..IDN;F654..4AT..STD..TH;F654..MID..(IDN,TH);F654..(SPO,STD)..(IDN,MA)	01/2019 - 12/2999	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
C9909-97201	F65#..RHD	01/2019 - 12/2999	2
88550B - MOTOR ASSY, BLOWER
87103-BZ170	F65#..MA,TH ASSY,NO.88510BZ282	06/2018 - 02/2019	1
87103-BZ180	F65#..IDN,MA,TH ASSY,NO.88510BZ292	02/2019 - 12/2999	1
87103-BZ180	F654..MA,TH ASSY,NO.88510BZ283	02/2019 - 04/2019	1
88568B - FILTER, AIR
88568-BZ050	F65#..GCC,GEN,MA,MXC,PHL,SA,TH WITH CLEAN AIR FILTER	08/2015 - 04/2019	2
88568-BZ050	F65#..IDN,MA,TH	01/2019 - 12/2999	1
88578B - PACKING, COOLING UNIT, NO.1
88578-BZ570	F65#..RHD	01/2019 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-BZ060	F65#..RHD	01/2019 - 12/2999	1
88710F - RING, O
15188-87402	F65#..IDN,MA,TH	01/2019 - 12/2999	1
88716V - RING, O(FOR COOLER UNIT)
15188-87403	F65#..IDN,MA,TH	01/2019 - 12/2999	1
Common parts
81128-B2010
9004A-10108
9004B-72003
90099-00968

ILLUST NO. 1 OF 3(1508- )MA,TH ; (1901- )IDN

Click highlighted areas on diagram

Part #	Description	Period	Qty
88539J - HOSE, DRAIN COOLER
88539-BZ320	F65#..RHD	01/2019 - 12/2999	1
88539K - HOSE, DRAIN COOLER
88839-BZ011	F65#..RHD TYPE B	01/2019 - 12/2999	1
88839-BZ010	F654..TH TYPE A	12/2015 - 02/2016	1
88839-BZ010	F654..TH	08/2015 - 12/2015	1
88839-BZ011	F65#..RHD TYPE B	02/2016 - 04/2019	1
88569F - CLAMP
88718-BZ730	F654..TH	08/2015 - 12/2015	1
88718-BZ731	F65#..RHD TYPE B	01/2019 - 12/2999	1
88718-BZ730	F654..TH TYPE A	12/2015 - 02/2016	1
88718-BZ731	F65#..RHD TYPE B	02/2016 - 04/2019	1
88897K - GROMMET, (FOR COOLER PIPE)
88897-BZ160	F65#..IDN,MA,PHL,TH	01/2019 - 12/2999	1
88898D - GROMMET
88897-87Z13	F65#	01/2019 - 12/2999	1
88899P - PLATE, COVER
88899-BZ050	F654..TH	08/2015 - 12/2015	1
Common parts
9004A-10197
9004A-11266
9004A-11281
9004A-11282
9004A-11340
9004A-17219
9004A-17221
91551-80620
91621-60618
91651-G0616
91653-40620

ILLUST NO. 2 OF 3(1901- )IDN ; (1904- )MA,TH

Click highlighted areas on diagram

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
88510-BZ282	F65#..MA,TH W/PART NUMBER LABEL	06/2018 - 02/2019	1
88510-BZ280	F65#..MA,TH	08/2015 - 04/2017	1
88510-BZ281	F65#..MA,TH	05/2017 - 05/2018	1
88510-BZ292	F65#..IDN,MA,TH W/PART NUMBER LABEL	02/2019 - 12/2999	1
88510-BZ283	F654..MA,TH W/PART NUMBER LABEL	02/2019 - 04/2019	1
87114B - COVER, HEATER
87114-BZ020	F65#..IDN,MA,TH	01/2019 - 12/2999	1
87114-BZ020	F65#..GCC,GEN,MA,MXC,PHL,SA,TH WITH CLEAN AIR FILTER	08/2015 - 04/2019	1
87138C - RESISTOR, BLOWER
87138-BZ140	F65#	01/2019 - 12/2999	1
88304A - COOLER, EVAPORATOR
88304-BZ070	F65#..IDN,MA,TH	01/2019 - 12/2999	1
88504A - CASE SUB-ASSY, BLOWER
87103-BZ140	F65#..IDN,MA,TH	01/2019 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-BZ150	F653..IDN;F654..4AT..STD..TH;F654..MID..(IDN,TH);F654..(SPO,STD)..(IDN,MA)	01/2019 - 12/2999	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
C9909-97201	F65#..RHD	01/2019 - 12/2999	2
88550B - MOTOR ASSY, BLOWER
87103-BZ170	F65#..MA,TH ASSY,NO.88510BZ282	06/2018 - 02/2019	1
87103-BZ180	F65#..IDN,MA,TH ASSY,NO.88510BZ292	02/2019 - 12/2999	1
87103-BZ180	F654..MA,TH ASSY,NO.88510BZ283	02/2019 - 04/2019	1
88568B - FILTER, AIR
88568-BZ050	F65#..GCC,GEN,MA,MXC,PHL,SA,TH WITH CLEAN AIR FILTER	08/2015 - 04/2019	2
88568-BZ050	F65#..IDN,MA,TH	01/2019 - 12/2999	1
88578B - PACKING, COOLING UNIT, NO.1
88578-BZ570	F65#..RHD	01/2019 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-BZ060	F65#..RHD	01/2019 - 12/2999	1
88710F - RING, O
15188-87402	F65#..IDN,MA,TH	01/2019 - 12/2999	1
88716V - RING, O(FOR COOLER UNIT)
15188-87403	F65#..IDN,MA,TH	01/2019 - 12/2999	1
Common parts
81128-B2010
9004A-10108
9004B-72003
90099-00968
