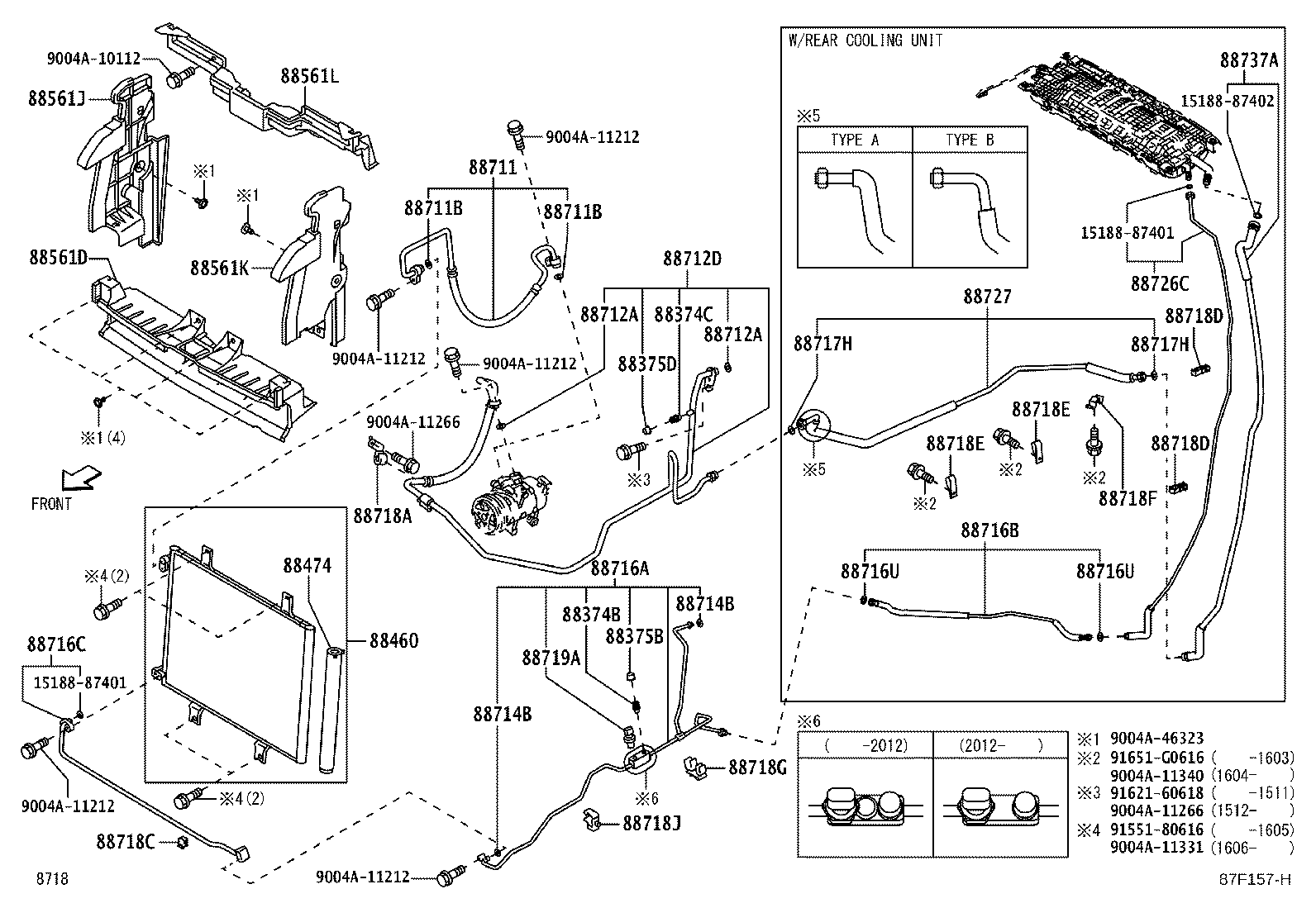

F654RM-GMSFJ (2015)
Toyota Avanza
(1507- )F653,654..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-87601 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88374-87601 |
F653..LHD..LO;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA);F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-87601 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88374-87601 |
F653..LHD..LO;F65#..MID,SPO,STD |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-87603 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88375-87603 |
F653..LHD..LO;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA);F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-87601 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88375-87601 |
F653..LHD..LO;F65#..MID,SPO,STD |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-BZ240 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88460-BZ240 |
F653..LHD..LO;F65#..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-B2010 |
F653..LHD..LO;F65#..MID,SPO,STD |
1 | ||
| 88474-B2010 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88561D - GRILLE, AIR INLET NO.3 | ||||
| 88561-BZ370 |
F653..LHD..LO;F653,654..MID,SPO,STD |
1 | ||
| 88561-BZ550 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 88561J - GRILLE, AIR INLET NO.1 | ||||
| 88561-BZ560 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 88561-BZ390 |
F653,654..SPO |
1 | ||
| 88561K - GRILLE, AIR INLET NO.2 | ||||
| 88561-BZ580 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 88561-BZ410 |
F653,654..SPO |
1 | ||
| 88561L - GRILLE, AIR INLET NO.4 | ||||
| 88561-BZ280 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88561-BZ280 |
F653..LHD..LO;F654..4AT..STD..TH;F654..MID..(GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-BZ560 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88711-BZ561 |
F653..LHD..LO;F65#..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 88711-BZ561 |
F653..LHD..LO;F65#..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
2 | ||
| 15188-87402 |
F653..LHD..LO;F65#..MID,SPO,STD |
2 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
2 | ||
| 15188-87402 |
F653..LHD..LO;F65#..MID,SPO,STD |
2 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
2 | ||
| 15188-87403 |
F653..LHD..LO;F65#..MID,SPO,STD |
2 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
2 | ||
| 15188-87403 |
F653..LHD..LO;F65#..MID,SPO,STD |
2 | ||
| 88712D - HOSE, SUCTION | ||||
| 88712-BZ590 |
F654..MID..SA;F653,654..IDN,MA |
1 | ||
| 88712-BZ591 |
F654..MID..SA;F65#..IDN,MA,TH |
1 | ||
| 88712-BZ591 |
F654..MID..SA;F65#..IDN,MA,TH |
1 | ||
| 88714B - RING, O(FOR COOLER REFRIGERANT LIQUID HOSE) | ||||
| 15188-87401 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
2 | ||
| 15188-87401 |
F653..LHD..LO;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA);F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
2 | ||
| 88714B - RING, O(FOR COOLER REFRIGERANT LIQUID HOSE) | ||||
| 15188-87401 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
2 | ||
| 15188-87401 |
F653..LHD..LO;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA);F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-BZB30 |
F654..MID..SA;F653,654..IDN,MA |
1 | ||
| 88716-BZB31 |
F653..IDN;F654..4AT..STD..TH;F654..MID..(IDN,SA,TH);F654..(SPO,STD)..(IDN,MA) |
1 | ||
| 88716-BZB32 |
F654..MID..SA;F65#..IDN,MA,TH |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-BZ730 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88716-BZ730 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-BZB70 |
F653..LHD..LO;F65#..MID,SPO,STD |
1 | ||
| 88716-BZB70 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 15188-87401 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL |
2 | ||
| 15188-87401 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 15188-87401 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL |
2 | ||
| 15188-87401 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) | ||||
| 15188-87402 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL |
2 | ||
| 15188-87402 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) | ||||
| 15188-87402 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL |
2 | ||
| 15188-87402 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-BZ620 |
F653,654..(MID,SPO,STD)..(IDN,MA,SA) |
1 | ||
| 88718-BZ620 |
F65#..RHD..(MID,SPO,STD) |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-BZ280 |
F653..LHD..LO;F65#..MID,SPO,STD |
1 | ||
| 88718-BZ280 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-BZ720 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88718-BZ720 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
2 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-BZ720 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88718-BZ720 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
2 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-BZ030 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
2 | ||
| 88718-BZ030 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-BZ030 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
2 | ||
| 88718-BZ030 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
2 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-BZ040 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
1 | ||
| 88718-BZ040 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-BZ550 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88718-BZ550 |
F653..LHD..LO;F65#..MID,SPO,STD |
1 | ||
| 88718J - CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-BZ660 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88718-BZ660 |
F653..LHD..LO;F65#..MID,SPO,STD |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-B2020 |
F653..LHD..LO;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA);F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
1 | ||
| 88719-B2010 |
F653..LHD..LO;F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-BZ750 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
1 | ||
| 88716-BZ750 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88727 - TUBE, SUCTION, NO.2 | ||||
| 88717-BZ400 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL TYPE A |
1 | ||
| 88717-BZ401 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH TYPE B |
1 | ||
| 88717-BZ401 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH TYPE B |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-BZ300 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
1 | ||
| 88717-BZ300 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 15188-87401 | ||||
| 15188-87402 | ||||
| 9004A-10112 | ||||
| 9004A-11212 | ||||
| 9004A-11266 | ||||
| 9004A-11331 | ||||
| 9004A-11340 | ||||
| 9004A-46323 | ||||
| 91551-80616 | ||||
| 91621-60618 | ||||
| 91651-G0616 | ||||
