F654RM-GMSFJ (2015)
Toyota Avanza
ILLUST NO. 1 OF 2(1111-1508)F651,652..RHD ; (1111-1904)F653,654..MA,SA,TH ; (1507-1901)IDN
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-BZ061 |
F653,654..RHD |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 81936-BZ020 |
F653,654 |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-BZ362C1 |
F653..STD..(MA,PHL);F654..RHD..4AT..MID;F653..(LO,SPO)..(IDN,PHL);F654..(SPO,STD)..(IDN,MA,PHL,TH) BLACK,TRIM1# |
1 | ||
| 55910-BZ630 |
F653..STD..PHL;F654..MID..(PHL,TH);F654..(SPO,STD)..(IDN,MA,PHL,TH) |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-BZ750 |
F653,654..IDN,MA,PHL,TH |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-BZ770 |
F653,654..IDN,MA,PHL,TH |
1 | ||
| 84732H - SWITCH, HEATER BLOWER | ||||
| 88470-BZ050 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88470-BZ050 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
1 | ||
| 84732H - SWITCH, HEATER BLOWER | ||||
| 88470-BZ050 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88470-BZ050 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-BZ080B0 |
F653..STD..PHL;F654..MID..(SA,TH);F653..(LO,SPO)..(IDN,PHL);F654..(SPO,STD)..(IDN,MA,PHL,TH) LT.GRAY,TRIM1# |
1 | ||
| 88611-BZ080B0 |
F653..STD..(MA,PHL);F654..MID..(MA,SA,TH);F653..(LO,SPO)..(IDN,PHL);F654..(SPO,STD)..(IDN,MA,PHL,TH) LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 93269-54012 | ||||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 1 OF 2(1901- )IDN ; (1904- )GCC,GEN,MA,MXC,PHL,SA,TH
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-BZ362C1 |
F653..STD..(MA,PHL);F654..RHD..4AT..MID;F653..(LO,SPO)..(IDN,PHL);F654..(SPO,STD)..(IDN,MA,PHL,TH) BLACK,TRIM1# |
1 | ||
| 55910-BZ630 |
F653..STD..PHL;F654..MID..(PHL,TH);F654..(SPO,STD)..(IDN,MA,PHL,TH) |
1 | ||
| 84732H - SWITCH, HEATER BLOWER | ||||
| 88470-BZ050 |
F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH |
1 | ||
| 88470-BZ050 |
F654..MID..(GEN,SA);F653,654..GCC,IDN,MA,PHL,TH |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-BZ080B0 |
F653..STD..PHL;F654..MID..(SA,TH);F653..(LO,SPO)..(IDN,PHL);F654..(SPO,STD)..(IDN,MA,PHL,TH) LT.GRAY,TRIM1# |
1 | ||
| 88611-BZ080B0 |
F653..STD..(MA,PHL);F654..MID..(MA,SA,TH);F653..(LO,SPO)..(IDN,PHL);F654..(SPO,STD)..(IDN,MA,PHL,TH) LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 9004A-16036 | ||||
| 93269-54012 | ||||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 2 OF 2(1901- )IDN ; (1904- )GCC,GEN,MA,MXC,PHL,SA,TH
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-BZ200 |
F653,654..IDN |
1 | ||
| 55086-BZ200 |
F65#..IDN |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-BZ291 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 87220-BZ291 |
F65#..RHD |
1 | ||
| 87220-BZ290 |
F653,654..RHD |
1 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.3 |
2 | ||
| 87223-BZ130 |
F653,654..IDN NO.1 |
1 | ||
| 87223-BZ110 |
F65#..IDN |
4 | ||
| 87223-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.2 |
3 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.3 |
2 | ||
| 87223-BZ130 |
F653,654..IDN NO.1 |
1 | ||
| 87223-BZ110 |
F65#..IDN |
4 | ||
| 87223-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.2 |
3 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.3 |
2 | ||
| 87223-BZ130 |
F653,654..IDN NO.1 |
1 | ||
| 87223-BZ110 |
F65#..IDN |
4 | ||
| 87223-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.2 |
3 | ||
| 87223B - PAD, AIR DUCT, NO.2 | ||||
| 87223-BZ550 |
F65#..IDN |
1 | ||
| Common parts | ||||
| 9004A-11342 | ||||
| 9004A-16036 | ||||

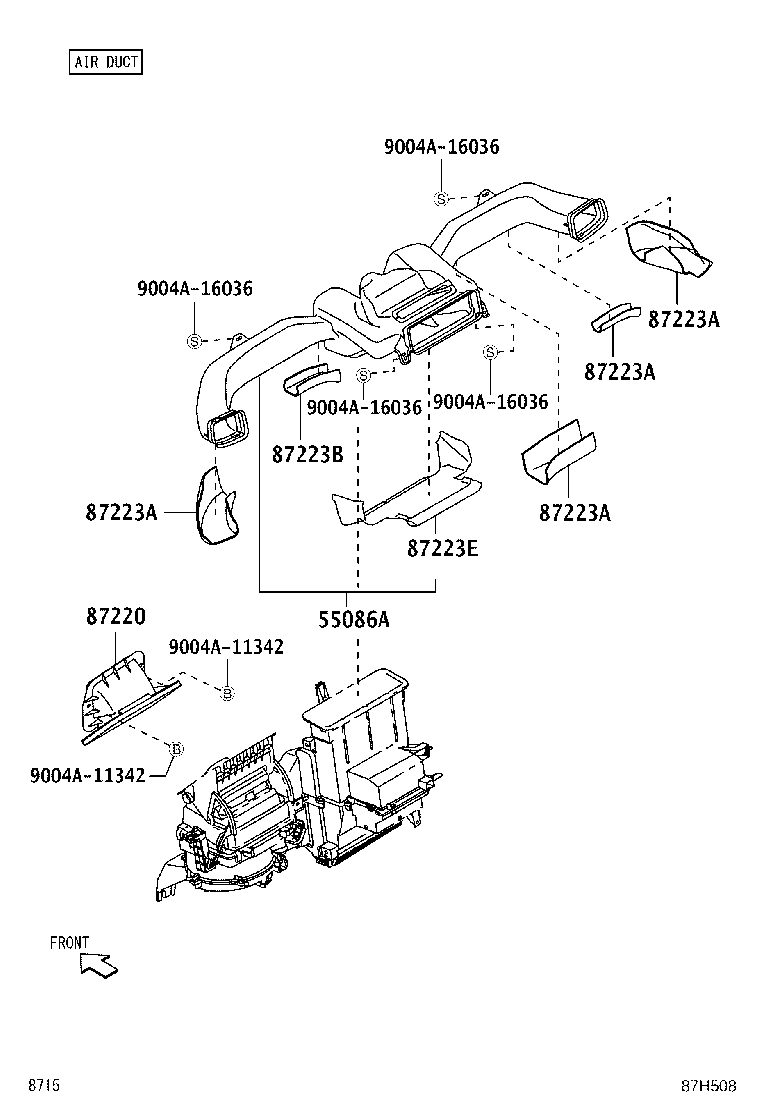

ILLUST NO. 2 OF 2(1901- )IDN
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-BZ200 |
F653,654..IDN |
1 | ||
| 55086-BZ200 |
F65#..IDN |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-BZ291 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 87220-BZ291 |
F65#..RHD |
1 | ||
| 87220-BZ290 |
F653,654..RHD |
1 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.3 |
2 | ||
| 87223-BZ130 |
F653,654..IDN NO.1 |
1 | ||
| 87223-BZ110 |
F65#..IDN |
4 | ||
| 87223-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.2 |
3 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.3 |
2 | ||
| 87223-BZ130 |
F653,654..IDN NO.1 |
1 | ||
| 87223-BZ110 |
F65#..IDN |
4 | ||
| 87223-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.2 |
3 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.3 |
2 | ||
| 87223-BZ130 |
F653,654..IDN NO.1 |
1 | ||
| 87223-BZ110 |
F65#..IDN |
4 | ||
| 87223-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.2 |
3 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.3 |
2 | ||
| 87223-BZ130 |
F653,654..IDN NO.1 |
1 | ||
| 87223-BZ110 |
F65#..IDN |
4 | ||
| 87223-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.2 |
3 | ||
| 87223B - PAD, AIR DUCT, NO.2 | ||||
| 87223-BZ550 |
F65#..IDN |
1 | ||
| 87223E - PAD, AIR DUCT, NO.5 | ||||
| 87223-BZ130 |
F65#..IDN |
1 | ||
| Common parts | ||||
| 9004A-11342 | ||||
| 9004A-16036 | ||||
