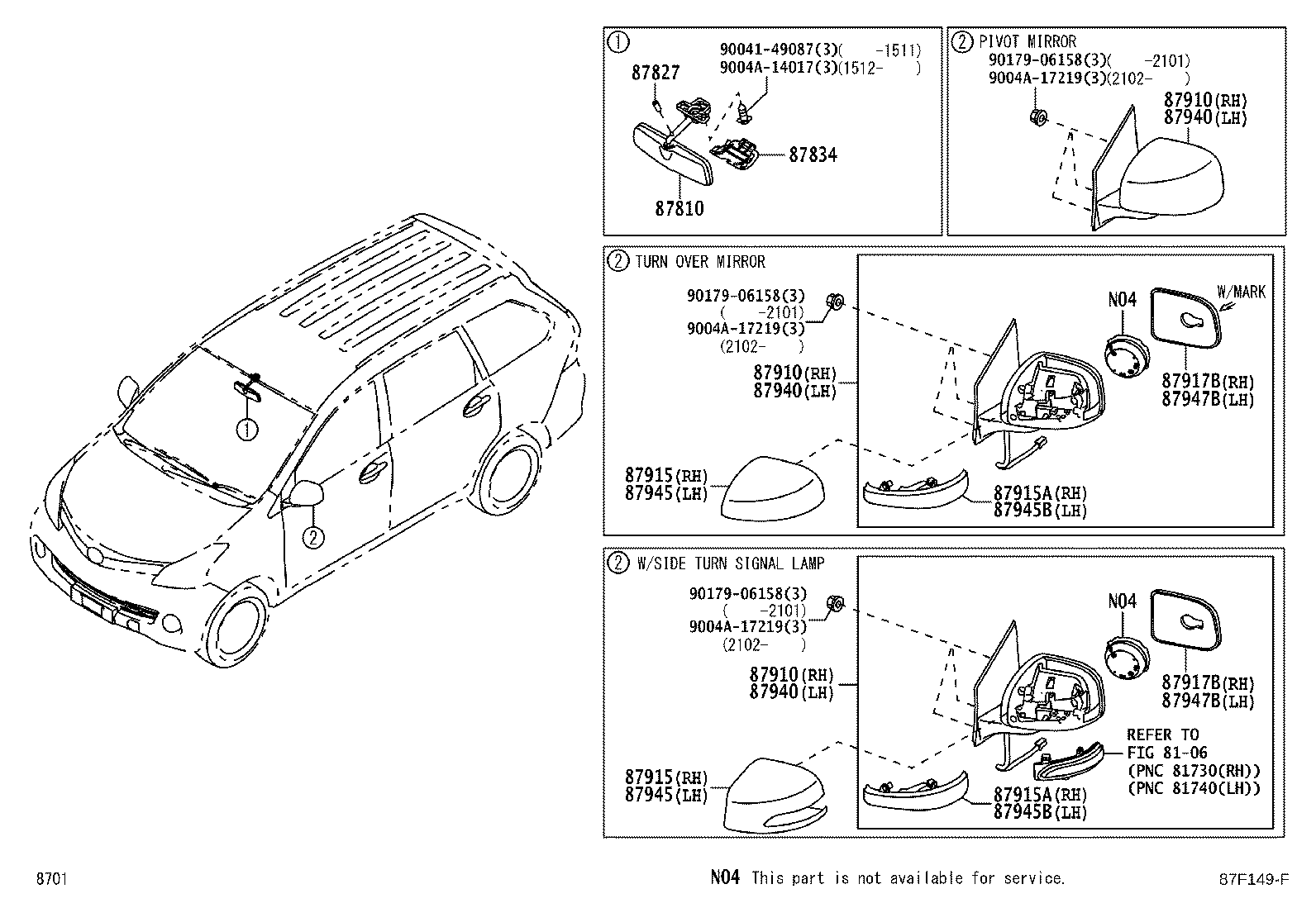

F654RM-GMSFJ (2015)
Toyota Avanza
(1507-1901)IDN ; (1508-1904)GCC,GEN,MA,MXC,PHL,SA,TH ; (1901- )5F..STD..IDN ; (1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-BZ070 |
F653,654..IDN;F653..LO..PHL;F654..STD..GCC |
1 | ||
| 87810-BZ070 |
F653,654..IDN;F653..LO..PHL;F654..STD..GCC |
1 | ||
| 87810-BZ070 |
F65#..IDN;F653..LO..PHL;F654..STD..GCC |
1 | ||
| 87810-BZ070 |
F65#..IDN;F653..LO..PHL;F654..STD..GCC |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-BZ010 |
F65# |
1 | ||
| 87828-BZ010 |
F65# |
1 | ||
| 87828-BZ010 |
F653,654 |
1 | ||
| 87828-BZ010 |
F653,654 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-BZ051B1 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 87834-BZ051B1 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 87834-BZ051B1 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 87834-BZ051B1 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-BZ471 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87910-BZ471 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87910-BZE70 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87910-BZE70 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-BZ471 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87910-BZ471 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87910-BZE70 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87910-BZE70 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-BZ471 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87910-BZ471 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87910-BZE70 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87910-BZE70 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-BZ310 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87915-BZ310 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87915-BZ520 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87915-BZ520 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-BZ310 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87915-BZ310 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87915-BZ520 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87915-BZ520 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87915A - COVER, OUTER MIRROR, RH | ||||
| 87915-BZ290 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87915-BZ290 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 8791B-BZ020 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 8791B-BZ020 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87915A - COVER, OUTER MIRROR, RH | ||||
| 87915-BZ290 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87915-BZ290 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 8791B-BZ020 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 8791B-BZ020 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-BZ120 |
F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 87917-BZ120 |
F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 87917-BZ180 |
F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL) |
1 | ||
| 87917-BZ180 |
F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL) |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-BZ120 |
F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 87917-BZ120 |
F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 87917-BZ180 |
F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL) |
1 | ||
| 87917-BZ180 |
F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-BZ411 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87940-BZ411 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87940-BZE50 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87940-BZE50 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-BZ411 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87940-BZ411 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87940-BZE50 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87940-BZE50 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-BZ411 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87940-BZ411 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87940-BZE50 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87940-BZE50 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-BZ310 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87945-BZ310 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87945-BZ530 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87945-BZ530 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-BZ310 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87945-BZ310 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87945-BZ530 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87945-BZ530 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 87945-BZ290 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87945-BZ290 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 8794B-BZ020 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 8794B-BZ020 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 87945-BZ290 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87945-BZ290 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 8794B-BZ020 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 8794B-BZ020 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-BZ180 |
F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL) |
1 | ||
| 87947-BZ180 |
F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL) |
1 | ||
| 87947-BZ120 |
F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 87947-BZ120 |
F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-BZ180 |
F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL) |
1 | ||
| 87947-BZ180 |
F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL) |
1 | ||
| 87947-BZ120 |
F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 87947-BZ120 |
F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| Common parts | ||||
| 90041-49087 | ||||
| 9004A-14017 | ||||
| 9004A-17219 | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 8106 | ||||
(1901- )IDN ; (1904- )MID..SA ; (1904-)STD..PHL ; (1904- )F653..MID..G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-BZ070 |
F653,654..IDN;F653..LO..PHL;F654..STD..GCC |
1 | ||
| 87810-BZ070 |
F65#..IDN;F653..LO..PHL;F654..STD..GCC |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-BZ010 |
F65# |
1 | ||
| 87828-BZ010 |
F653,654 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-BZ051B1 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 87834-BZ051B1 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-BZ471 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87910-BZE70 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-BZ310 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87915-BZ520 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87915A - COVER, OUTER MIRROR, RH | ||||
| 87915-BZ290 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 8791B-BZ020 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-BZ120 |
F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 87917-BZ180 |
F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL) |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791A-BZ040 |
F654..IDN,MA,PHL;F654..MID..(GCC,TH);F653..(MID,SPO)..IDN |
1 | ||
| 8791A-BZ010 |
F65#..(MID,SPO)..IDN |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-BZ411 |
F654..STD..TH;F653,654..(MID,SPO,STD)..(IDN,SA) |
1 | ||
| 87940-BZE50 |
F65#..SPO..IDN TYPE D |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-BZ310 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 87945-BZ530 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 87945-BZ290 |
F654..IDN,MXC,PHL,SA;F654..STD..(GCC,GEN,TH);F653..(MID,SPO,STD)..(GEN,IDN,PHL,SA) |
1 | ||
| 8794B-BZ020 |
F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL) |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-BZ180 |
F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL) |
1 | ||
| 87947-BZ120 |
F653,654..(MID,SPO,STD)..(GEN,IDN,MA,MXC,PHL,SA,TH) |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-BZ010 |
F65#..(MID,SPO)..IDN |
1 | ||
| 8794A-BZ040 |
F654..IDN,MA,PHL;F654..MID..(GCC,TH);F653..(MID,SPO)..IDN |
1 | ||
| Common parts | ||||
| 9004A-14017 | ||||
| 9004A-17219 | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8420 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
