F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )F653,654..RHD

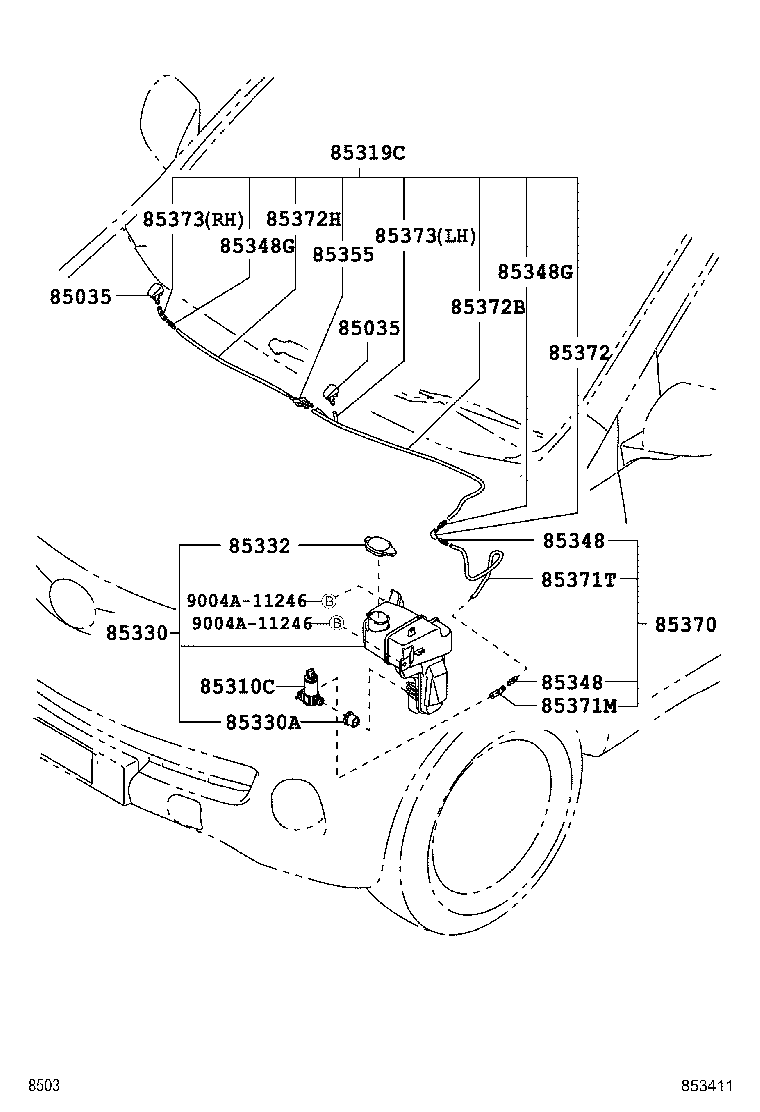

Click highlighted areas on diagram

diagram 85035 85035 85310C 85319C 85330 85330A 85332 85348 85348 85348G 85348G 85355 85370 85371M 85371T 85372 85372B 85372H 85373 85373 9004A11246 9004A11246
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-BZ220

F65#

 2
85381-BZ220

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-BZ220

F65#

 2
85381-BZ220

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
85310C - MOTOR & PUMP ASSY, WASHER
85330-BZ120

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,MA,SA;F654..GEN,IDN,MA,PHL,SA,TH

 1
85330-BZ180

F653..STD..PHL;F654..MID..GCC;F653..GEN,IDN,SA;F654..GEN,IDN,MA,PHL,SA,TH

 1
85330-BZ180

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85319C - HOSE, WASHER
85370-BZ880

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85370-BZ880

F65#..RHD

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-BZ160

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85315-BZ160

F65#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90044-80454

F65#

 1
90044-80454

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-97202

F65#

 1
85332-97202

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85317-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
85317-BZ080

F65#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85317-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
85317-BZ080

F65#

 2
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85317-BZ080

F65#..RHD

 2
85317-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85317-BZ080

F65#..RHD

 2
85317-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85376-B1010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85376-B1010

F65#

 1
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-BZ890

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85370-BZ890

F65#

 1
85371M - HOSE, WINDSHIELD WASHER (FROM JOINT TO TANK)
85355-87701

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85355-87701

F65#

 1
85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
85374-BZ880

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

*H,L=470

 1
85374-BZ880

F65#

*H,L=470

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85355-87701

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85355-87701

F65#

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85374-BZB10

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

*H,L=600

 1
85374-BZB10

F65#..RHD

*H,L=600

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85374-BZB00

F65#..RHD

*H,L=380

 1
85374-BZB00

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

*H,L=380

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85355-87701

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

RH

 1
85355-87701

F65#..RHD

RH

 1
85374-BZ440

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

*H,L=180,LH

 1
85374-BZ440

F65#..RHD

*H,L=180,LH

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85355-87701

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

RH

 1
85355-87701

F65#..RHD

RH

 1
85374-BZ440

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

*H,L=180,LH

 1
85374-BZ440

F65#..RHD

*H,L=180,LH

 1
Common parts
9004A-11246
