F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )SPO..IDN

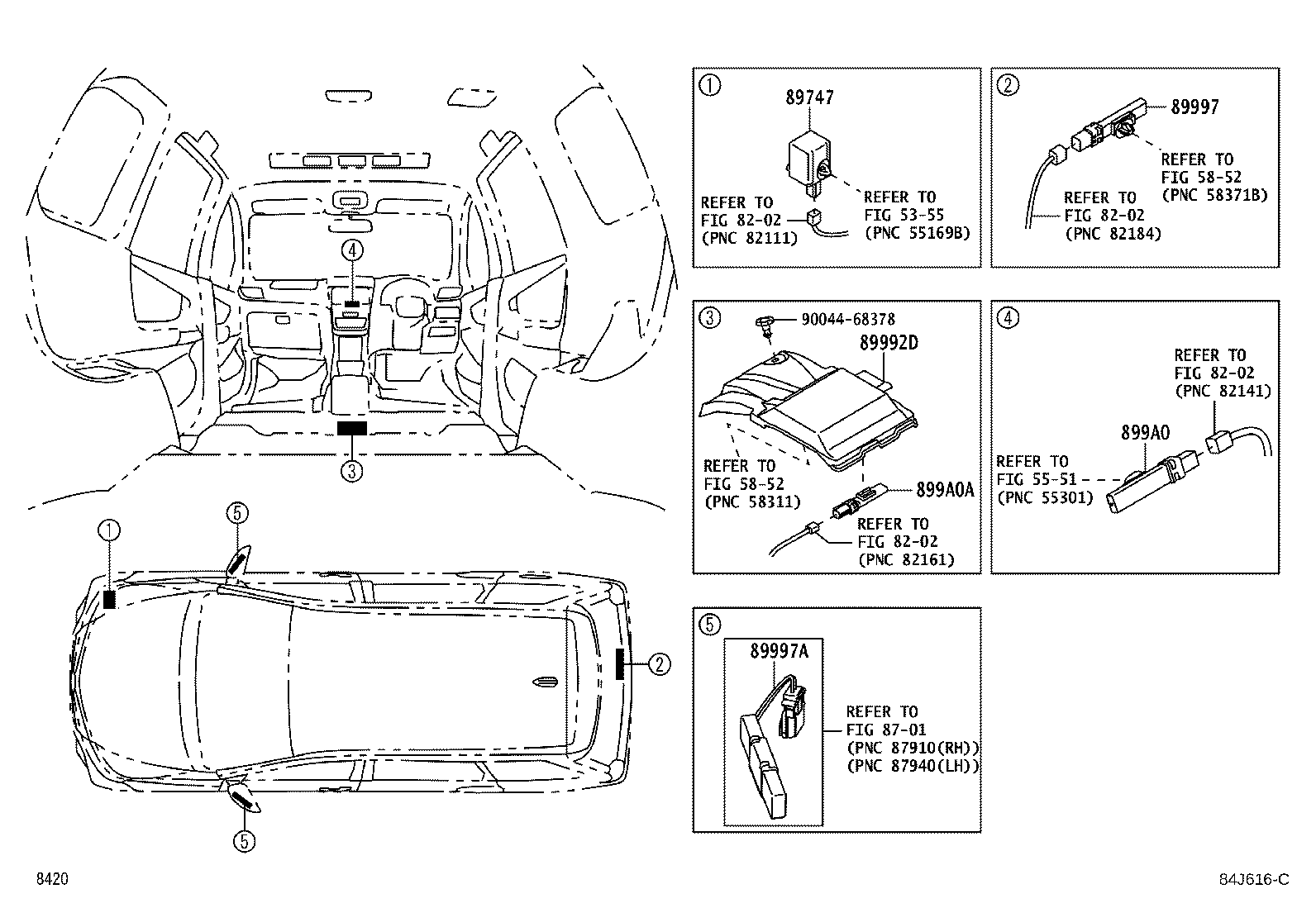

Click highlighted areas on diagram

diagram 5355 5551 5852 5852 8202 8202 8202 8202 8701 89747 89992D 89997 89997A 899A0 899A0A 9004468378
Part # Description Qty Price
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

F653..SPO;F654..(SPO,STD)..(IDN,MA)

 1
89992D - OSCILLATOR, INDOOR ELECTRICAL KEY, NO.3
89992-BZ020

F65#..SPO..IDN

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-BZ060

F65#..SPO..IDN

 1
89997-B1100

F65#..SPO..IDN

 1
89997A - ANTENNA, ELECTRICAL KEY, NO.2
89997-BZ020

F65#..SPO..IDN

 2
89997-B2380

F65#..SPO..IDN

 2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
89997-BZ010

F65#..SPO..IDN

 1
89997-B2360

F65#..SPO..IDN

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
89997-B0010

F65#..SPO..IDN

 1
89997-BZ080

F65#..SPO..IDN

 1
Common parts
90044-68378
Linked diagrams
5355
5551
5852
8202
8701
