F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 6(1111-1901)IDN ; (1111-1904)MA,SA,TH

Click highlighted areas on diagram

SWITCH

diagram 84330 84330 84790 84870A 84986 85500 85530 85533 85535E 88660C
Part # Description Qty Price
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
83950-BZ040

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
83950-BZ040

F65#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
83950-BZ040

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
83950-BZ040

F65#

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-BZ060

F653..MA;F654..MID..MA;F654..4AT..SPO..(IDN,TH);F654..5F..(SPO,STD)..(IDN,TH)

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-BZ071

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84870-BZ200

F65#..(MID,SPO)..(GCC,IDN,MA,TH)

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

TYPE B

 1
85530-33020

F653,654

TYPE A

 1
85530-BZ080

F65#

 2
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-BZ071

F65#

 1
85535-BZ040

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

TYPE B

 1
85535-47020

F653,654

TYPE A

 1

ILLUST NO. 1 OF 6(1507-1807)IDN ; (1508-1512)PHL

Click highlighted areas on diagram

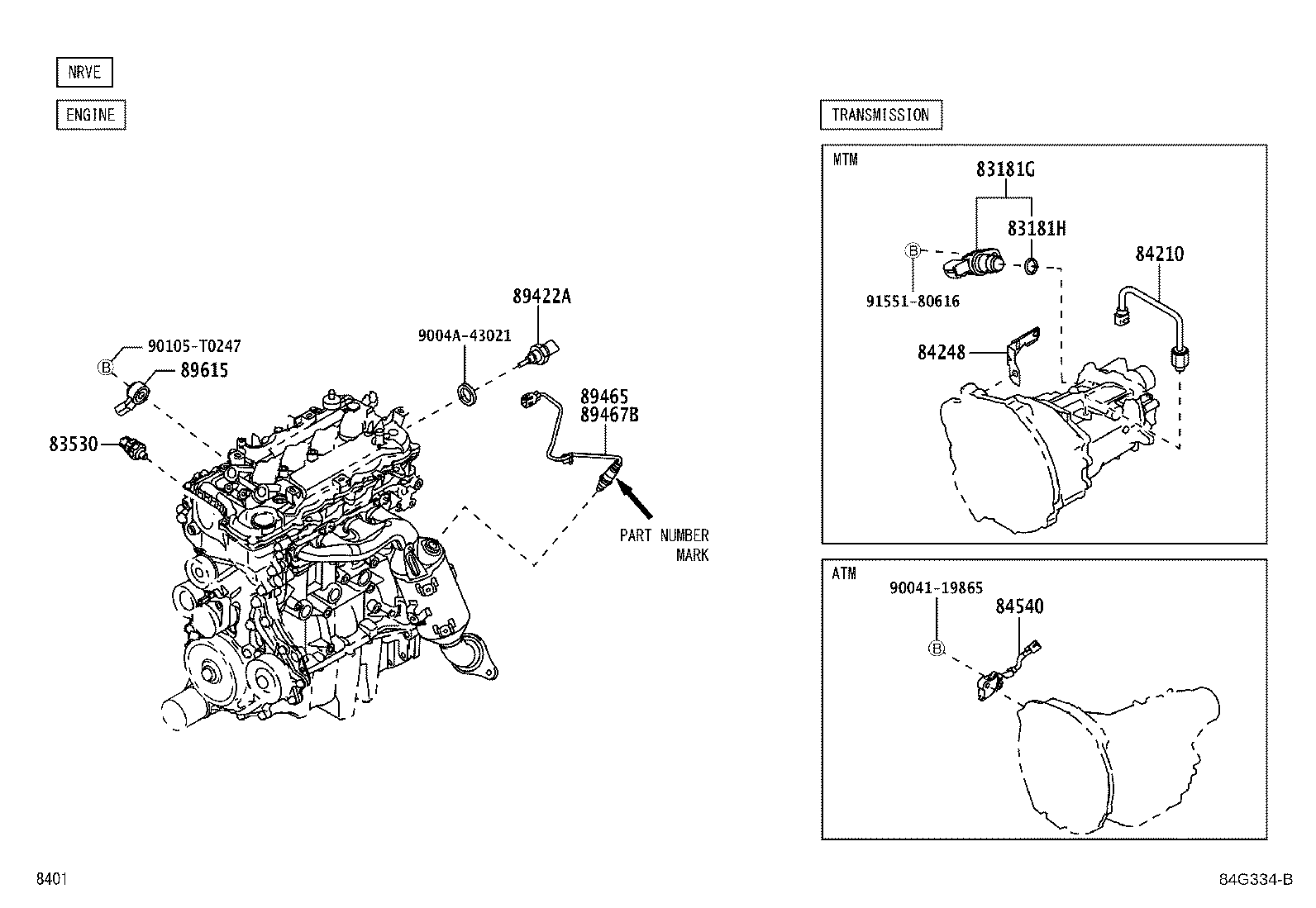

ENGINE & TRANSMISSION

diagram 83181G 83181H 83530 84210 84248 84540 89422A 89465 89467B 89615 9004119865 9004A43021 90105T0247 9155180616
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-52050

F65#

 1
83530-B0010

F653,654

 1
83530-52050

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-BZ110

F653,654..5F

 1
84210-BZ110

F65#..5F..(IDN,MA,TH)

 1
84210-BZ110

F65#..5F

 1
84248 - CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS
84248-BZ041

F653,654..5F..(IDN,MA,TH)

 1
84248-BZ041

F65#..5F

 1
89422A - SENSOR, WATER TEMPERATURE
89422-BZ030

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
89422-BZ030

F65#

 1
89465 - SENSOR, OXYGEN
89465-BZ430

F653,654..IDN

W/PART NUMBER MARK

 1
89467B - SENSOR, AIR FUEL RATIO
89467-BZ010

F65#..IDN

W/PART NUMBER MARK

 1
89467-BZ010

F65#..GCC,IDN,MXC,PHL;F654..4AT..(MID,STD)..TH

W/PART NUMBER MARK

 1
89615 - SENSOR, KNOCK CONTROL
89615-BZ040

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
89615-BZ040

F65#

 1
Common parts
90041-19865
9004A-43021
90105-T0247
91551-80616

ILLUST NO. 2 OF 6(1507-1901)IDN ; (1508-1904)GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

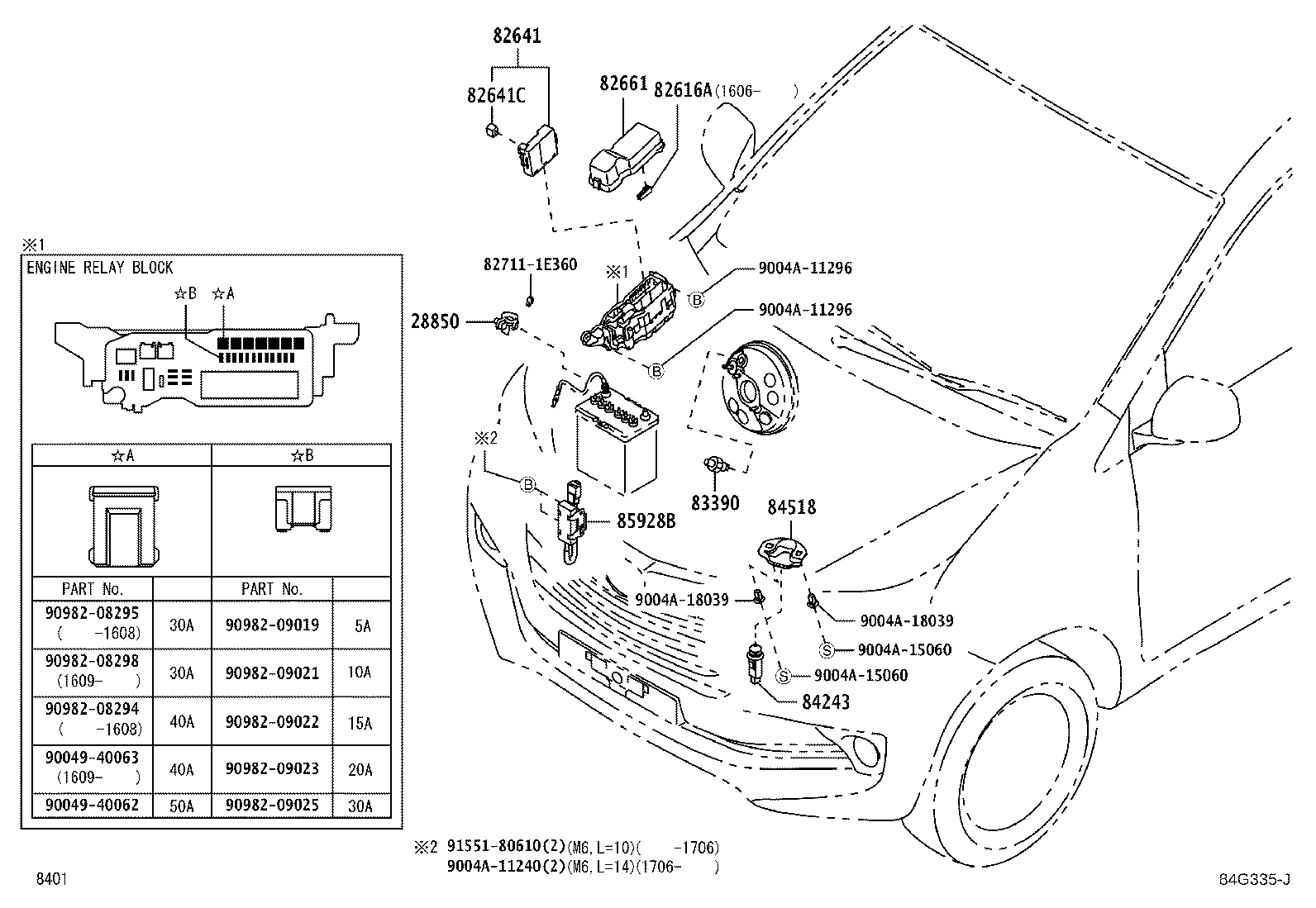

ENGINE ROOM

diagram 28850 82616A 82641 82641C 82661 827111E360 83390 84243 84518 85928B 9004940062 9004940063 9004A11240 9004A11296 9004A11296 9004A15060 9004A15060 9004A18039 9004A18039 9098208294 9098208295 9098208298 9098209019 9098209021 9098209022 9098209023 9098209025 9155180610
Part # Description Qty Price
28850 - SENSOR ASSY, BATTERY CURRENT
28850-B2041

1NRVE,2NRVE..F65#

 1
28850-BZ010

1NRVE,2NRVE..F653,654

 1
28850-B2041

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
82641 - RELAY, INTEGRATION NO.1
82641-BZ010

F65#

 1
82641-BZ010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
82641C - RELAY, INTEGRATION NO.2
9004A-98006

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
9004A-98006

F65#

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-BZ140

F653,654..IDN

 1
82661-BZ141

F65#..IDN

 1
82661-BZ141

F65#

 1
Common parts
82711-1E360
90049-40062
90049-40063
9004A-11240
9004A-11296
9004A-15060
9004A-18039
90982-08294
90982-08295
90982-08298
90982-09019
90982-09021
90982-09022
90982-09023
90982-09025
91551-80610

ILLUST NO. 1 OF 6(1508- )GCC,GEN,MA,MXC,SA,TH ; (1512- )PHL; (1807- )IDN

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 82715 82715 83181G 83181H 83530 84210 84248 84540 89422A 89465 89465A 89467B 89615 9004119865 9004A11240 9004A11240 9004A43021 90105T0247 9155180616
Part # Description Qty Price
82715 - BRACKET,WIRING HARNESS CLAMP
82715-BZD60

F65#..5F..IDN

 1
82715-BZD60

F65#..5F..(GCC,IDN,MXC,PHL)

 1
82715 - BRACKET,WIRING HARNESS CLAMP
82715-BZD60

F65#..5F..IDN

 1
82715-BZD60

F65#..5F..(GCC,IDN,MXC,PHL)

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-52050

F65#

 1
83530-B0010

F653,654

 1
83530-52050

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-BZ110

F653,654..5F

 1
84210-BZ110

F65#..5F..(IDN,MA,TH)

 1
84210-BZ110

F65#..5F

 1
84248 - CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS
84248-BZ041

F653,654..5F..(IDN,MA,TH)

 1
84248-BZ041

F65#..5F

 1
89422A - SENSOR, WATER TEMPERATURE
89422-BZ030

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
89422-BZ030

F65#

 1
89465 - SENSOR, OXYGEN
89465-BZ430

F653,654..IDN

W/PART NUMBER MARK

 1
89465A - SENSOR, OXYGEN NO.2
89465-BZ340

F65#..IDN

 1
89465-BZ340

F65#..GCC,IDN,MXC,PHL,TH

 1
89467B - SENSOR, AIR FUEL RATIO
89467-BZ010

F65#..IDN

W/PART NUMBER MARK

 1
89467-BZ010

F65#..GCC,IDN,MXC,PHL;F654..4AT..(MID,STD)..TH

W/PART NUMBER MARK

 1
89615 - SENSOR, KNOCK CONTROL
89615-BZ040

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
89615-BZ040

F65#

 1
Common parts
90041-19865
9004A-11240
9004A-43021
90105-T0247
91551-80616

ILLUST NO. 3 OF 6(1507-1901)IDN ; (1508-1904)MA,SA,TH

Click highlighted areas on diagram

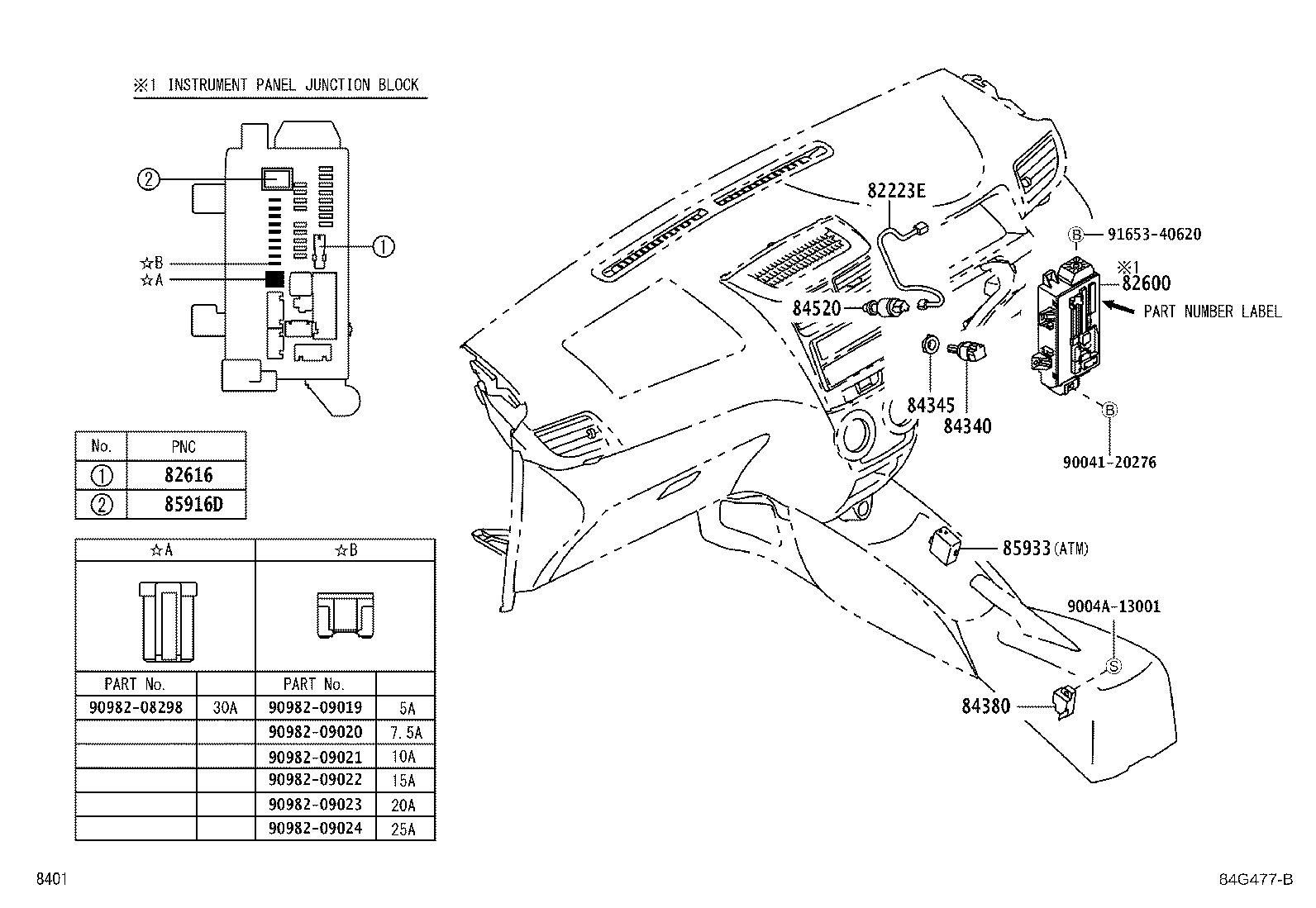

INSTRUMENT PANEL

diagram 82223E 82600 82616 84340 84345 84380 84520 85916D 85933 9004120276 9004A13001 9098208298 9098209019 9098209020 9098209021 9098209022 9098209023 9098209024 9165340620
Part # Description Qty Price
82223E - WIRE, CLUTCH START SWITCH
82223-BZ020

F654..5F..(IDN,TH)

 1
82223-BZ050

F654..5F..SPO

 1
82600 - BLOCK ASSY, FUSE
82600-BZ110

F654..SPO..IDN

 1
82600-BZ710

F654..SPO..IDN

 1
82600-BZ830

F65#..SPO..IDN

 1
82600-BZ831

F65#..SPO..IDN

 1
82616 - PULLER, FUSE
82616-58010

F653,654

 1
82616-58010

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
84340 - SWITCH ASSY, STOP LAMP
84340-BZ040

F65#

 1
84340-BZ040

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-BZ010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84345-BZ010

F65#

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-87Z06

F65#

 1
84380-87Z06

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84520 - SWITCH ASSY, CLUTCH START
84520-B4010

F653,654..5F..(IDN,MA,TH)

 1
85916D - RELAY, FOG LAMP
9004A-98006

F653..(MID,SPO)..IDN;F654..(MID,SPO)..(GCC,GEN,IDN,MA,PHL,SA,TH)

 1
9004A-98006

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

 1
Common parts
90041-20276
9004A-13001
90982-08298
90982-09019
90982-09020
90982-09021
90982-09022
90982-09023
90982-09024
91653-40620

ILLUST NO. 6 OF 6(1507- )F653,654..RHD

Click highlighted areas on diagram

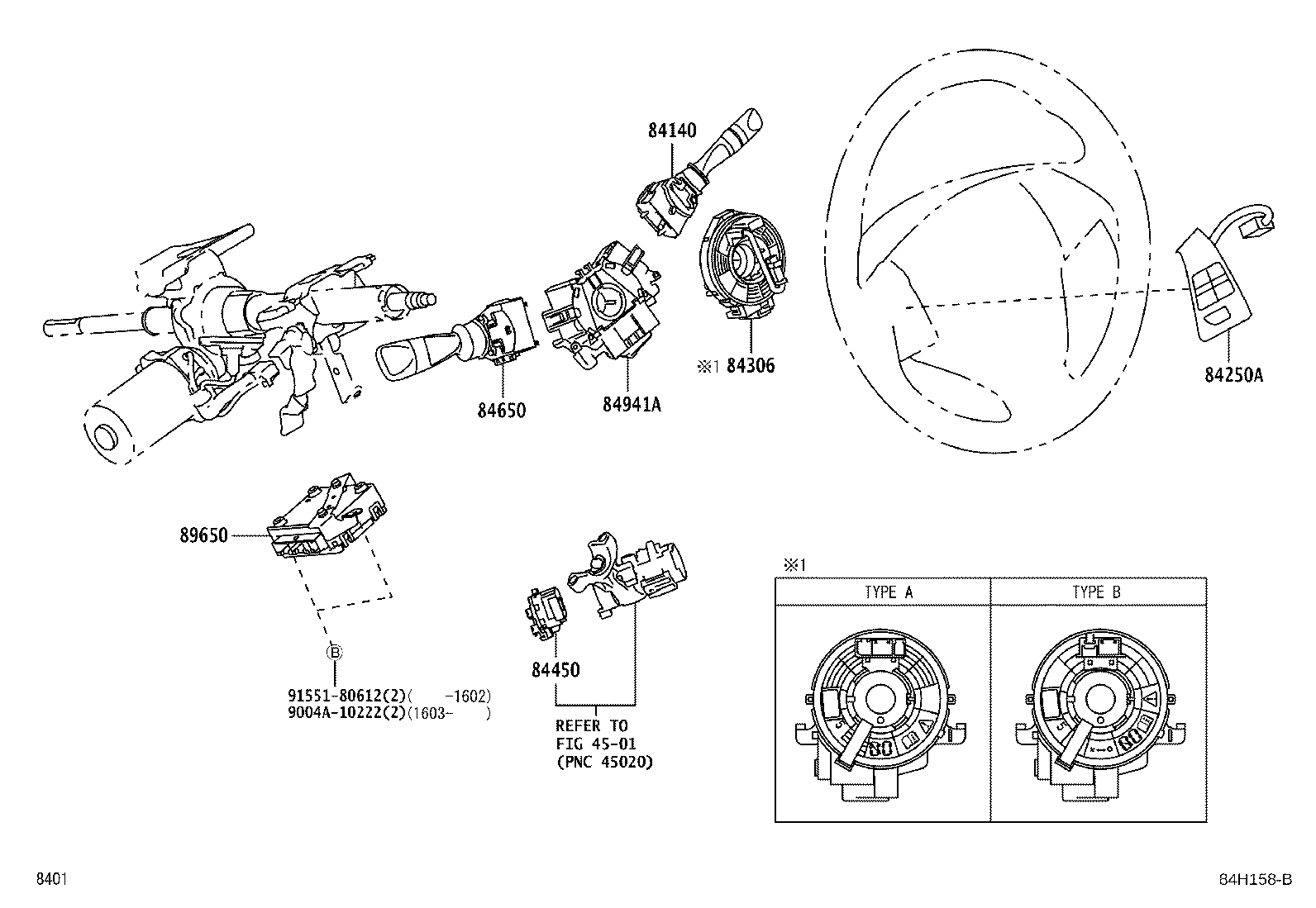

STEERING

diagram 4501 84140 84250A 84306 84450 84650 84941A 89650 9004A10222 9155180612
Part # Description Qty Price
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-BZ180

F654..SPO..TH;F654..MID..MA;F653,654..(MID,SPO)..IDN

W/FOG LAMP SWITCH

 1
84140-BZ180

F654..IDN,MA;F654..MID..(SA,TH);F653..(MID,SPO)..IDN

W/FOG LAMP SWITCH

 1
84250A - SWITCH ASSY, STEERING PAD
84250-BZ080C0

F654..SPO;F654..MID..(MA,SA)

BLACK,TRIM1#

 1
84250-BZ080B0

F654..MID..MA;F654..SPO..(IDN,TH)

SILVER,TRIM1#

 1
84250-BZ080B0

F654..5F..PHL;F654..MID..(MXC,SA,TH);F65#..SPO..(IDN,MA,PHL)

SILVER,TRIM1#

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-BZ160

F654..MID,SPO;F653..(MID,SPO)..IDN

TYPE A

 1
84306-BZ160

F654..MID..MA;F654..SPO..(IDN,TH)

TYPE A

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-BZ040

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-BZ250

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84652-BZ250

F65#..RHD

 1
84941A - BASE, SWITCH
84941-BZ010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84941-BZ010

F65#..IDN,MA,TH

 1
89650 - COMPUTER ASSY, POWER STEERING
89650-BZ290

F65#..RHD

DENSO

 1
89650-BZ100

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
Common parts
9004A-10222
91551-80612
Linked diagrams
4501

ILLUST NO. 2 OF 6(1901- )IDN ; (1904- )GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

ENGINE ROOM

diagram 28850 8202 8202 8202 82616A 82641 82641C 82661 827111E360 83390 84243 84518 85928B 85930G 9004940062 9004940063 9004A11240 9004A11296 9004A11296 9004A15060 9004A15060 9004A18039 9098208298 9098209019 9098209021 9098209022 9098209023 9098209025
Part # Description Qty Price
28850 - SENSOR ASSY, BATTERY CURRENT
28850-B2041

1NRVE,2NRVE..F65#

 1
28850-BZ010

1NRVE,2NRVE..F653,654

 1
28850-B2041

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
82641 - RELAY, INTEGRATION NO.1
82641-BZ010

F65#

 1
82641-BZ010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
82641C - RELAY, INTEGRATION NO.2
9004A-98006

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
9004A-98006

F65#

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-BZ140

F653,654..IDN

 1
82661-BZ141

F65#..IDN

 1
82661-BZ141

F65#

 1
85930G - RELAY, ACC
9004A-98006

F65#

 1
Common parts
82711-1E360
90049-40062
90049-40063
9004A-11240
9004A-11296
9004A-15060
9004A-18039
90982-08298
90982-09019
90982-09021
90982-09022
90982-09023
90982-09025
Linked diagrams
8202

ILLUST NO. 3 OF 6(1901- )IDN ; (1904- )MA,SA,TH

Click highlighted areas on diagram

INSTRUMENT PANEL 1/2

diagram 8202 82223E 82600 82616 82673B 84340 84345 84520 84520 84520E 85916D 88630Y 9004120276 9004120276 9004120276 9004170330 9004170330 9098208298 9098209019 9098209020 9098209021 9098209022 9098209023 9098209024 9165340620
Part # Description Qty Price
82223E - WIRE, CLUTCH START SWITCH
82223-BZ020

F654..5F..(IDN,TH)

 1
82223-BZ050

F654..5F..SPO

 1
82600 - BLOCK ASSY, FUSE
82600-BZ110

F654..SPO..IDN

 1
82600-BZ710

F654..SPO..IDN

 1
82600-BZ830

F65#..SPO..IDN

 1
82600-BZ831

F65#..SPO..IDN

 1
82616 - PULLER, FUSE
82616-58010

F653,654

 1
82616-58010

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
82673B - BRACKET, JUNCTION BLOCK
82673-BZ050

F65#..RHD

 1
84340 - SWITCH ASSY, STOP LAMP
84340-BZ040

F65#

 1
84340-BZ040

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-BZ010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84345-BZ010

F65#

 1
84520 - SWITCH ASSY, CLUTCH START
84520-B4010

F653,654..5F..(IDN,MA,TH)

 1
84520 - SWITCH ASSY, CLUTCH START
84520-B4010

F653,654..5F..(IDN,MA,TH)

 1
84520E - SWITCH ASSY, CLUTCH START, NO.2
84520-97202

F654..5F..SPO

 2
85916D - RELAY, FOG LAMP
9004A-98006

F653..(MID,SPO)..IDN;F654..(MID,SPO)..(GCC,GEN,IDN,MA,PHL,SA,TH)

 1
9004A-98006

F654..IDN,MA,PHL;F653..(MID,SPO)..IDN;F654..MID..(GCC,GEN,SA,TH)

 1
88630Y - RELAY, REAR COOLER
9004A-98006

F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH

 1
Common parts
90041-20276
90041-70330
90982-08298
90982-09019
90982-09020
90982-09021
90982-09022
90982-09023
90982-09024
91653-40620
Linked diagrams
8202

ILLUST NO. 5 OF 6(1901- )IDN ; (1904- )MA,SA,TH

Click highlighted areas on diagram

SWITCH

diagram 8202 84330 84870A 84986 85530 85535B 89611
Part # Description Qty Price
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
83950-BZ040

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
83950-BZ040

F65#

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-BZ071

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
84870-BZ200

F65#..(MID,SPO)..(GCC,IDN,MA,TH)

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

TYPE B

 1
85530-33020

F653,654

TYPE A

 1
85530-BZ080

F65#

 2
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-BZ061

F65#

 1
89611 - SWITCH, PUSH START
89611-B2061

F65#..SPO..IDN

 1
89611-B0010

F65#..SPO..IDN

 1
89611-B0031

F65#..SPO..IDN

 1
Linked diagrams
8202

ILLUST NO. 3 OF 6(2012- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL 2/2

diagram 5851 74710BZ030 74711BZ020 8202 8202 84380 85530 85535E 85933 9004A10168 9004A13001
Part # Description Qty Price
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-87Z06

F65#

 1
84380-87Z06

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

TYPE B

 1
85530-33020

F653,654

TYPE A

 1
85530-BZ080

F65#

 2
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-BZ071

F65#

 1
85535-BZ040

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

TYPE B

 1
85535-47020

F653,654

TYPE A

 1
Common parts
74710-BZ030
74711-BZ020
9004A-10168
9004A-13001
Linked diagrams
5851
8202

ILLUST NO. 3 OF 6(1901-2012)IDN ; (1904-2012)MA,SA,TH

Click highlighted areas on diagram

INSTRUMENT PANEL 2/2

diagram 8202 8202 84380 85530 85535E 85933 9004A13001
Part # Description Qty Price
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-87Z06

F65#

 1
84380-87Z06

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

TYPE B

 1
85530-33020

F653,654

TYPE A

 1
85530-BZ080

F65#

 2
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-BZ071

F65#

 1
85535-BZ040

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

TYPE B

 1
85535-47020

F653,654

TYPE A

 1
Common parts
9004A-13001
Linked diagrams
8202
