F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )F653,654..RHD

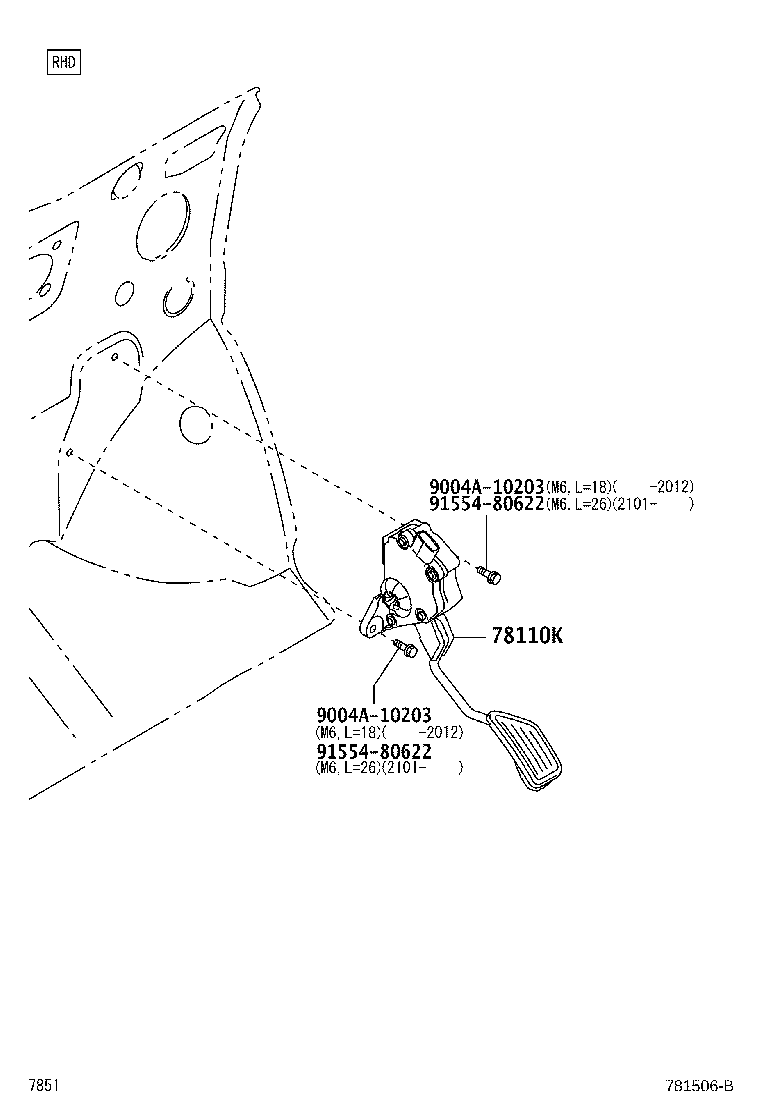

Click highlighted areas on diagram

diagram 78110K 9004A10203 9004A10203 9155480622 9155480622
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-BZ030

F653,654..RHD

 1
78110-BZ031

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
78110-BZ031

F65#..RHD

 1
Common parts
9004A-10203
91554-80622
