F654RM-GMSFJ (2015)
Toyota Avanza
(1507- )F653,654

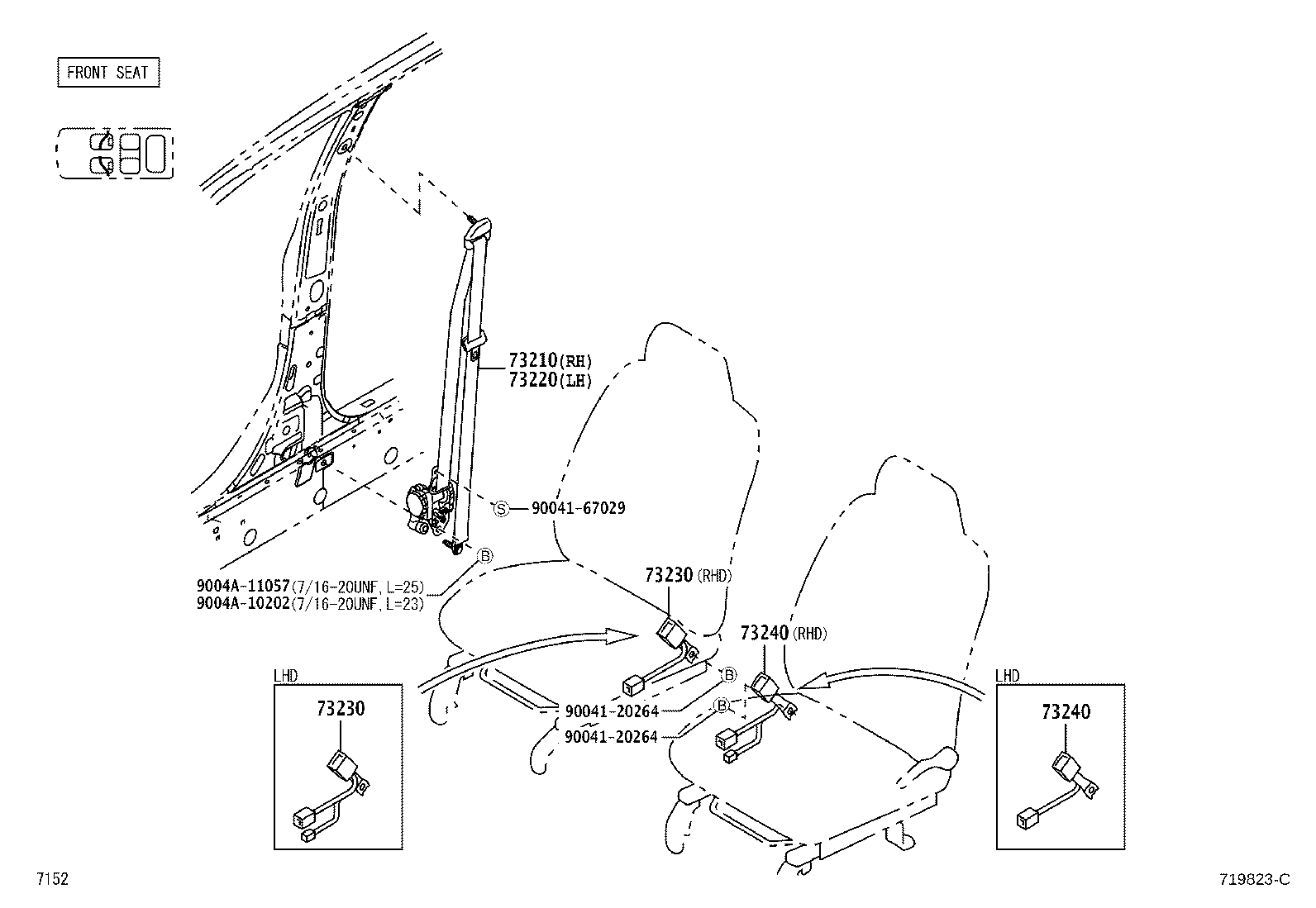

FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-BZ361B0 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD) LT.GRAY,TRIM1# |
1 | ||
| 73210-BZ361B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-BZ341B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 73220-BZ341B0 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD) LT.GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-BZ471B0 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD) DK.GRAY,TRIM1# |
1 | ||
| 73230-BZ471B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-BZ471B0 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD) DK.GRAY,TRIM1# |
1 | ||
| 73230-BZ471B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-BZ580B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 73230-BZ580B0 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD) DK.GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-BZ580B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 73230-BZ580B0 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90041-20264 | ||||
| 90041-67029 | ||||
| 9004A-10202 | ||||
| 9004A-11057 | ||||
(1507- )F653,654

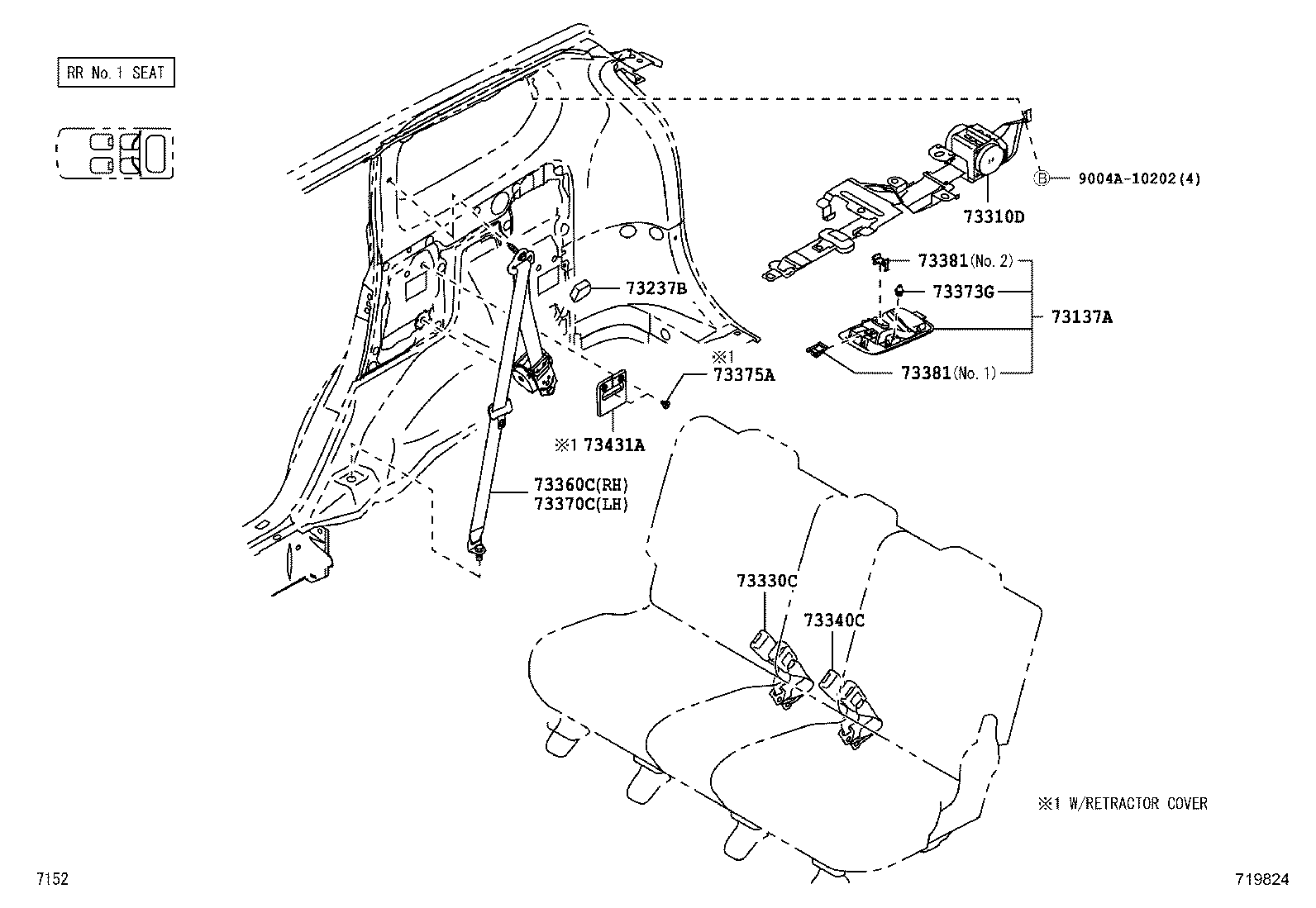

RR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73137A - COVER, SHOULDER BELT ANCHOR, UPR | ||||
| 73137-BZ010B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 73137-BZ010B0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 73237B - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-BZ010B2 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73237-BZ010B2 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73310D - BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER | ||||
| 73350-BZ120B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) SHADOW GRAY,TRIM1# |
1 | ||
| 73350-BZ120B1 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) SHADOW GRAY,TRIM1# |
1 | ||
| 73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH | ||||
| 73330-BZ160B0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) SHADOW GRAY,TRIM1# |
1 | ||
| 73330-BZ160B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) SHADOW GRAY,TRIM1# |
1 | ||
| 73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH | ||||
| 73340-BZ151B0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) SHADOW GRAY,TRIM1# |
1 | ||
| 73340-BZ151B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) SHADOW GRAY,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-BZ270B0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 73360-BZ270B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-BZ270B0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 73370-BZ270B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 73373G - CLIP, REAR SEAT SHOULDER BELT COVER | ||||
| 90467-09240 |
F653,654..LO,MID,SPO,STD |
3 | ||
| 90467-09240 |
F65#..LO,MID,SPO,STD |
3 | ||
| 73381 - HOLDER, REAR SEAT BELT | ||||
| 73381-0K020 |
F65#..LO,MID,SPO,STD NO.1 |
1 | ||
| 73381-KK010 |
F65#..LO,MID,SPO,STD NO.2 |
1 | ||
| 73381-KK010 |
F653,654..LO,MID,SPO,STD NO.2 |
1 | ||
| 73381-0K020 |
F653,654..LO,MID,SPO,STD NO.1 |
1 | ||
| 73381 - HOLDER, REAR SEAT BELT | ||||
| 73381-0K020 |
F65#..LO,MID,SPO,STD NO.1 |
1 | ||
| 73381-KK010 |
F65#..LO,MID,SPO,STD NO.2 |
1 | ||
| 73381-KK010 |
F653,654..LO,MID,SPO,STD NO.2 |
1 | ||
| 73381-0K020 |
F653,654..LO,MID,SPO,STD NO.1 |
1 | ||
| Common parts | ||||
| 9004A-10202 | ||||
