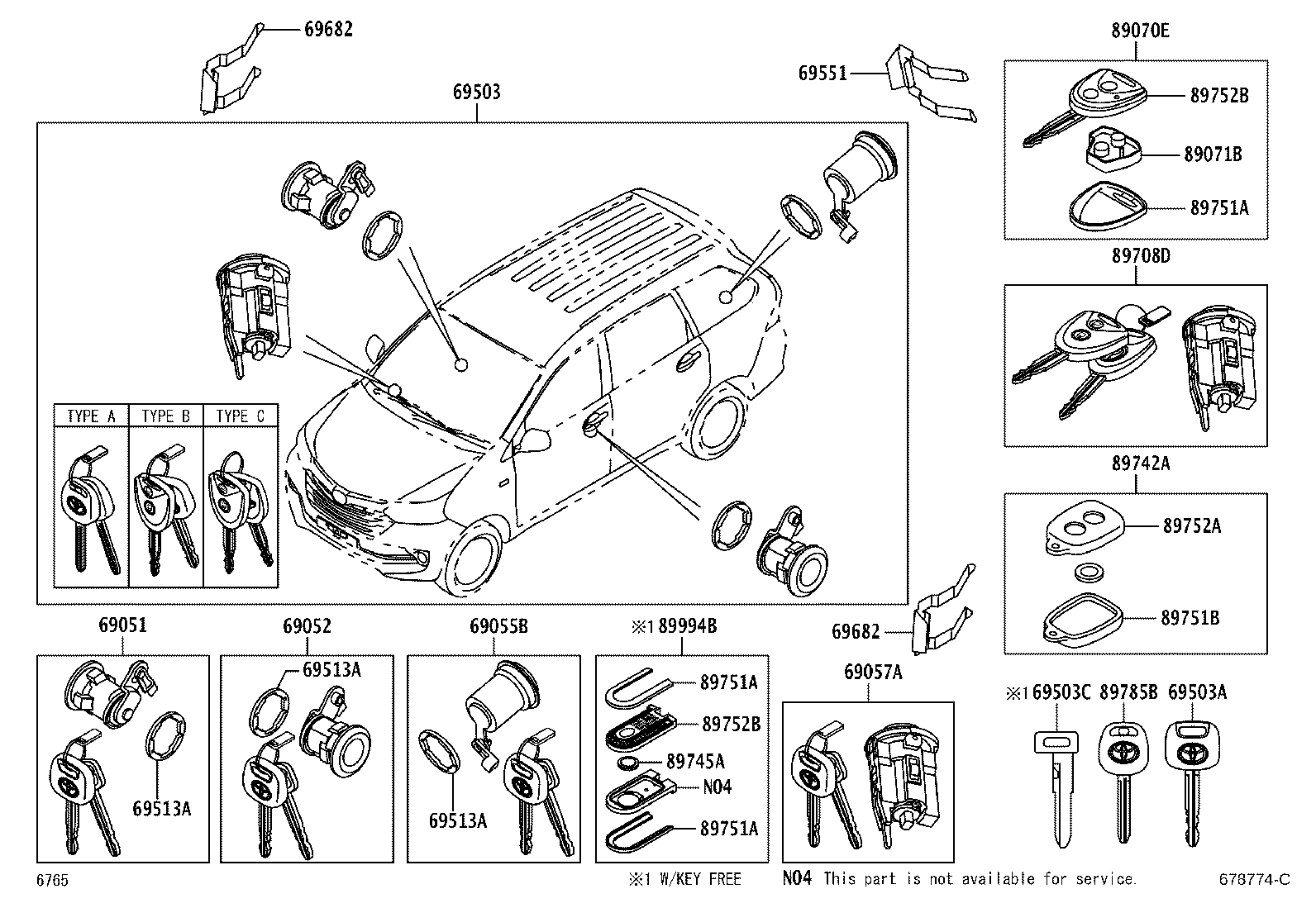

F654RM-GMSFJ (2015)
Toyota Avanza
(1507- )IDN ; (1507- )SPO..PHL ; (1508-)MID..PHL ; (1508- )F653..GEN,M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-BZ021 |
F653,654 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-BZ021 |
F653,654 |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-BZ180 |
F653,654 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-BZ730 |
F654..5F..(IDN,TH);F653..(MID,SPO)..IDN;F654..4AT..SPO..(IDN,TH) TYPE C |
1 | ||
| 69005-BZ620 |
F65#..SPO..IDN |
1 | ||
| 69503C - KEY, SUB | ||||
| 69516-BZ130 |
F65#..SPO..IDN |
1 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-BZ010 |
F653,654 |
3 | ||
| 69513-BZ010 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-BZ010 |
F653,654 |
3 | ||
| 69513-BZ010 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-BZ010 |
F653,654 |
3 | ||
| 69513-BZ010 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
3 | ||
| 69551 - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 61317-BZ020 |
F65# |
1 | ||
| 61317-BZ020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69682-B2010 |
F65# |
2 | ||
| 69682-B2010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69682-B2010 |
F65# |
2 | ||
| 69682-B2010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-BZ230 |
F654..SPO..PHL;F654..GCC,IDN,TH;F653..(MID,SPO)..IDN |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-BZ050 |
F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 89708D - CYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER | ||||
| 89708-BZ100 |
F654..SPO..PHL;F654..GCC,IDN,TH;F653..(MID,SPO)..IDN |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-B2060 |
F65#..SPO..IDN CR2032 |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-B2120 |
F65#..SPO..IDN |
2 | ||
| 89751-BZ080 |
F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MXC,PHL,TH) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-B2120 |
F65#..SPO..IDN |
2 | ||
| 89751-BZ080 |
F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MXC,PHL,TH) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-B2120 |
F65#..SPO..IDN |
2 | ||
| 89751-BZ080 |
F653,654..(MID,SPO,STD)..(GCC,GEN,IDN,MXC,PHL,TH) |
1 | ||
| 89752B - CASE, TRANSMITTER HOUSING | ||||
| 89752-BZ120 |
F654..SPO..PHL;F654..GCC,IDN,MXC,TH;F653..(MID,SPO)..IDN |
1 | ||
| 89752-B1030 |
F65#..SPO..IDN |
1 | ||
| 89752B - CASE, TRANSMITTER HOUSING | ||||
| 89752-BZ120 |
F654..SPO..PHL;F654..GCC,IDN,MXC,TH;F653..(MID,SPO)..IDN |
1 | ||
| 89752-B1030 |
F65#..SPO..IDN |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-B0020 |
F65#..SPO..IDN |
1 | ||
