F654RM-GMSFJ (2015)
Toyota Avanza

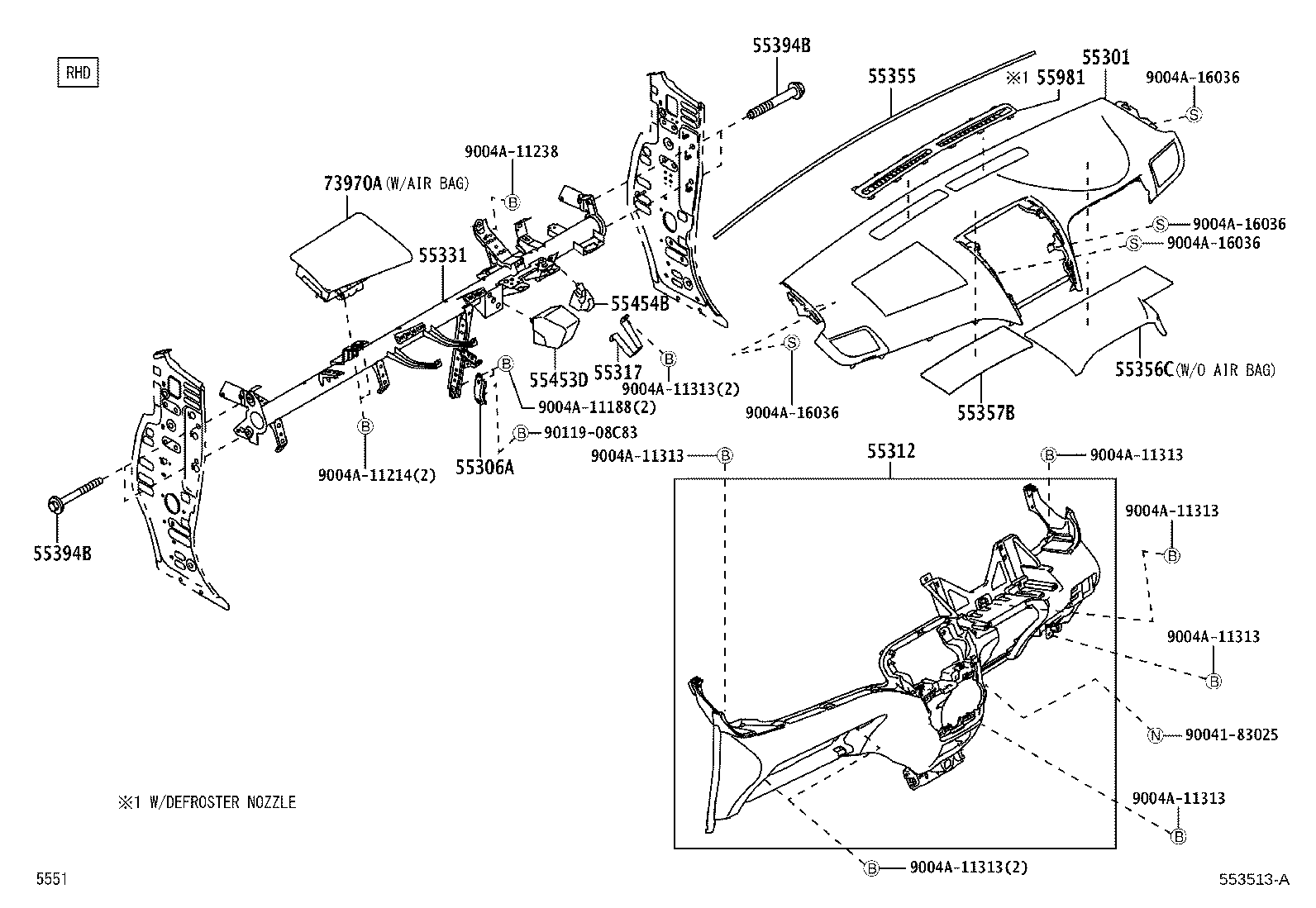

ILLUST NO. 1 OF 2(1507-1901)IDN ; (1508-1904)MA,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-BZ350B0 |
F653..MA;F653..SPO;F654..RHD..4AT..MID;F654..(SPO,STD)..(IDN,MA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55311-BZ351B0 |
F653..MA;F653..SPO;F654..RHD..4AT..MID;F654..(SPO,STD)..(IDN,MA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55311-BZ351B0 |
F653..SPO;F654..4AT..(MID,STD)..TH;F654..(SPO,STD)..(IDN,MA) DK.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55306-BZ110 |
F65#..RHD |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-BZ080B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55312-BZ081B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55312-BZ100B0 |
F653..SPO;F653..5F..STD..IDN;F654..4AT..(MID,STD)..TH;F654..(SPO,STD)..(IDN,MA) DK.GRAY,TRIM1# |
1 | ||
| 55312-BZ101B0 |
F653..4AT..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD);F653..RHD..5F..(LO,SPO,STD,VB) DK.GRAY,TRIM1# |
1 | ||
| 55317 - PATCH, INSTRUMENT PANEL | ||||
| 55315-BZ110 |
F65#..RHD |
1 | ||
| 55315-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55305-BZ480 |
F653..IDN;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55305-BZ600 |
F65#..IDN,TH |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-BZ100 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55349-BZ140 |
F65# |
1 | ||
| 55355-BZ100 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-BZ130 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55356-BZ130 |
F65#..RHD |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-BZ072 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55357-BZ072 |
F65# |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-BZ020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
4 | ||
| 55394-BZ020 |
F65# |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-BZ020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
4 | ||
| 55394-BZ020 |
F65# |
4 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-B0010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55453-B0010 |
F65#..RHD |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-B0040 |
F65#..RHD |
1 | ||
| 55454-B0040 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-BZ170B0 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD) DK.GRAY,TRIM1# |
1 | ||
| 73970-BZ170B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90041-83025 | ||||
| 9004A-11188 | ||||
| 9004A-11214 | ||||
| 9004A-11238 | ||||
| 9004A-11313 | ||||
| 9004A-16036 | ||||
| 90119-08C83 | ||||

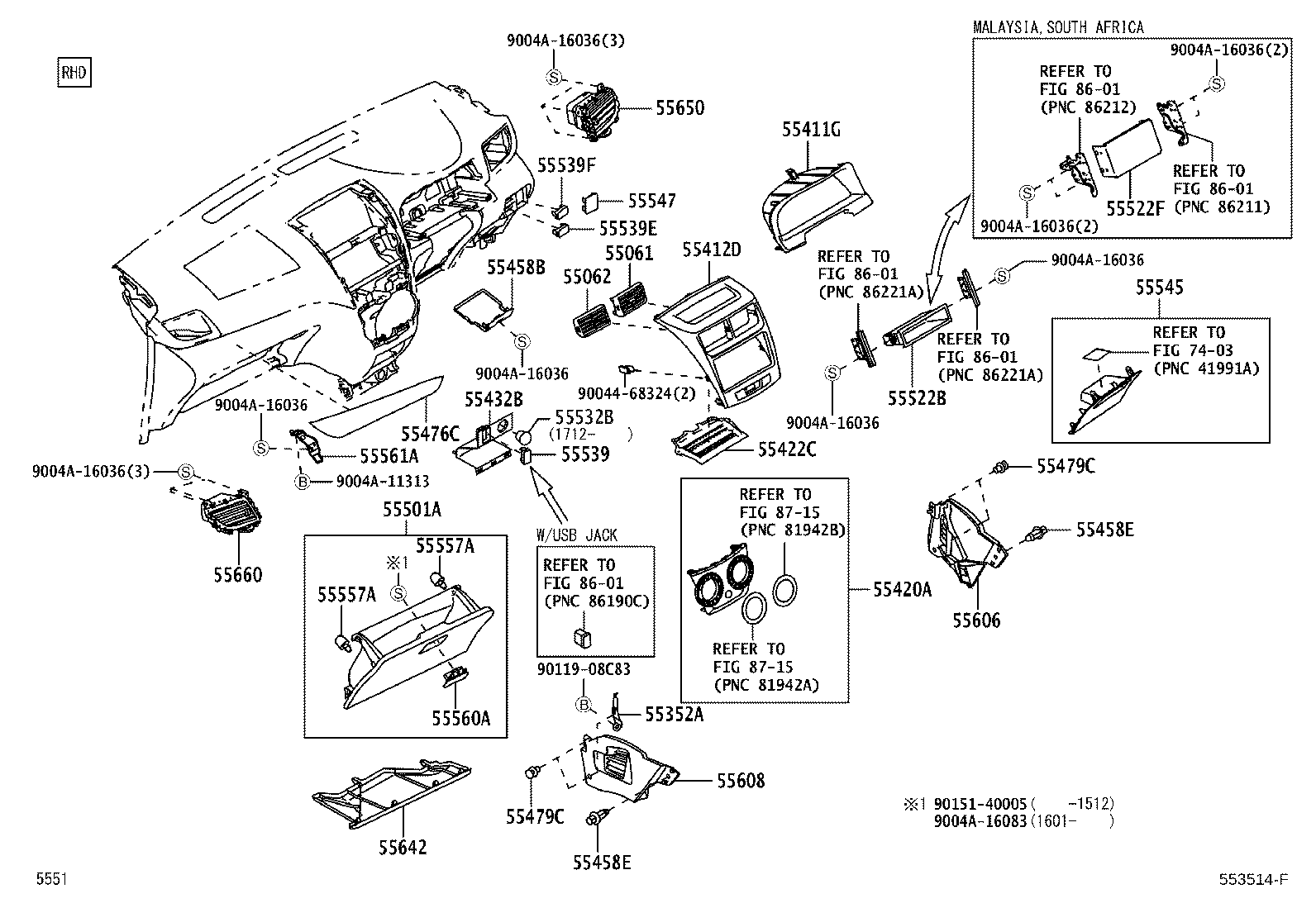

ILLUST NO. 2 OF 2(1507-1901)IDN ; (1508-1904)MA,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-BZ210C0 |
F653..SA;F653..SPO;F654..MID..(MXC,SA);F654..(SPO,STD)..(IDN,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55061-BZ210C0 |
F653..SA;F653..SPO;F654..SPO..TH;F654..MID..(MXC,SA);F654..(SPO,STD)..(IDN,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-BZ040C0 |
F653..SA;F653..SPO;F654..SPO..TH;F654..MID..(MXC,SA);F654..(SPO,STD)..(IDN,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55062-BZ040C0 |
F653..SA;F653..SPO;F654..MID..(MXC,SA);F654..(SPO,STD)..(IDN,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2 | ||||
| 55352-BZ040 |
F653,654..RHD |
1 | ||
| 55352-BZ040 |
F65#..RHD |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-BZ220C0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55411-BZ220C0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-BZB30C1 |
F653..SPO;F654..5F..PHL;F654..(SPO,STD)..(IDN,MA,PHL) BLACK METALLIC,TRIM1# |
1 | ||
| 55412-BZ730C0 |
F653,654..SPO..(IDN,PHL,TH) BLACK METALLIC,TRIM1# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-BZ190C1 |
F653,654..SPO..(IDN,PHL,TH) BLACK METALLIC,TRIM1# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-BZ040C0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55422-BZ040C0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-BZ080B0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55432-BZ080B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-BZ020C0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55458-BZ020C0 |
F653..SPO;F654..5F..PHL;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90044-67579B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,SA,TH) DK.GRAY,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90044-67579B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,SA,TH) DK.GRAY,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-BZ010B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) SILVER,TRIM1# |
1 | ||
| 55476-BZ010B0 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(IDN,MA,SA) SILVER,TRIM1# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07215 |
F653,654 |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07215 |
F653,654 |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-BZ050B1 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55501-BZ050B1 |
F653..4AT..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD);F653..RHD..5F..(LO,SPO,STD,VB) DK.GRAY,TRIM1# |
1 | ||
| 55501-BZ050B2 |
F653..4AT..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD);F653..RHD..5F..(LO,SPO,STD,VB) DK.GRAY,TRIM1# |
1 | ||
| 55532B - COVER, CIGAR LIGHTER HOLE | ||||
| 55532-BZ010C1 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-B2030B2 |
F653;F654..MID..(IDN,MA,MXC,PHL,TH);F654..(SPO,STD)..(GEN,IDN,MA,SA,TH) DK.GRAY |
1 | ||
| 55539-BZ090C0 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) BLACK |
1 | ||
| 55539-B2030C1 |
F653;F654..MID..(IDN,MA,MXC,PHL,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK |
1 | ||
| 55539-BZ090C0 |
F65#..GCC,GEN,IDN,MXC,PHL,SA,TH BLACK |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-BZ020B0 |
F654..MID..(MA,MXC,TH);F653..STD..(GEN,MA,PHL);F653..(LO,SPO)..(GEN,IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL,TH) DK.GRAY,TRIM1# |
1 | ||
| 55539-BZ090C0 |
F653..SPO;F654..MID..TH;F654..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-BZ010B0 |
F653..4AT..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD);F653..RHD..5F..(LO,SPO,STD,VB) DK.GRAY,TRIM1# |
1 | ||
| 55540-BZ010B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-B2040 |
F65# |
2 | ||
| 55557-B2040 |
F653,654 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-B2040 |
F65# |
2 | ||
| 55557-B2040 |
F653,654 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-BZ050C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55560-BZ050B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55560-BZ050B0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-BZ080 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55561-BZ081 |
F65#..RHD |
1 | ||
| 55561-BZ080 |
F653..IDN,SA;F654..4AT..STD..TH;F654..MID..(IDN,SA,TH);F654..(SPO,STD)..(IDN,MA,SA) |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-BZ170C0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55641-BZ170C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55646-BZ110C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55646-BZ110C0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55642 - COVER, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55642-BZ121C1 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) BLACK,TRIM1# |
1 | ||
| 55642-BZ120C0 |
F653,654..SPO BLACK,TRIM1# |
1 | ||
| 55642-BZ121C0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) BLACK,TRIM1# |
1 | ||
| 55642-BZ122C1 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD) BLACK,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-BZ180C2 |
F653,654..SPO..IDN BLACK,TRIM1# |
1 | ||
| 55650-BZ180C2 |
F65#..SPO..IDN BLACK,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-BZ100C2 |
F653,654..SPO..IDN BLACK,TRIM1# |
1 | ||
| 55660-BZ100C2 |
F65#..SPO..IDN BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90044-68324 | ||||
| 9004A-11313 | ||||
| 9004A-16036 | ||||
| 9004A-16083 | ||||
| 90119-08C83 | ||||
| 90151-40005 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8601 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(1901- )IDN ; (1904- )MA,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-BZ350B0 |
F653..MA;F653..SPO;F654..RHD..4AT..MID;F654..(SPO,STD)..(IDN,MA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55311-BZ351B0 |
F653..MA;F653..SPO;F654..RHD..4AT..MID;F654..(SPO,STD)..(IDN,MA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55311-BZ351B0 |
F653..SPO;F654..4AT..(MID,STD)..TH;F654..(SPO,STD)..(IDN,MA) DK.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55306-BZ110 |
F65#..RHD |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-BZ080B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55312-BZ081B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55312-BZ100B0 |
F653..SPO;F653..5F..STD..IDN;F654..4AT..(MID,STD)..TH;F654..(SPO,STD)..(IDN,MA) DK.GRAY,TRIM1# |
1 | ||
| 55312-BZ101B0 |
F653..4AT..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD);F653..RHD..5F..(LO,SPO,STD,VB) DK.GRAY,TRIM1# |
1 | ||
| 55317 - PATCH, INSTRUMENT PANEL | ||||
| 55315-BZ110 |
F65#..RHD |
1 | ||
| 55315-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55305-BZ480 |
F653..IDN;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55305-BZ600 |
F65#..IDN,TH |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-BZ100 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55349-BZ140 |
F65# |
1 | ||
| 55355-BZ100 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-BZ130 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55356-BZ130 |
F65#..RHD |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-BZ072 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55357-BZ072 |
F65# |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-BZ020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
4 | ||
| 55394-BZ020 |
F65# |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-BZ020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
4 | ||
| 55394-BZ020 |
F65# |
4 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-B0010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55453-B0010 |
F65#..RHD |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-B0040 |
F65#..RHD |
1 | ||
| 55454-B0040 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-BZ170B0 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD) DK.GRAY,TRIM1# |
1 | ||
| 73970-BZ170B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90041-83025 | ||||
| 9004A-11188 | ||||
| 9004A-11214 | ||||
| 9004A-11238 | ||||
| 9004A-11313 | ||||
| 9004A-16036 | ||||
| 90119-08C83 | ||||
ILLUST NO. 2 OF 2(1901- )IDN ; (1904- )MA,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-BZ210C0 |
F653..SA;F653..SPO;F654..MID..(MXC,SA);F654..(SPO,STD)..(IDN,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55061-BZ210C0 |
F653..SA;F653..SPO;F654..SPO..TH;F654..MID..(MXC,SA);F654..(SPO,STD)..(IDN,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-BZ040C0 |
F653..SA;F653..SPO;F654..SPO..TH;F654..MID..(MXC,SA);F654..(SPO,STD)..(IDN,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55062-BZ040C0 |
F653..SA;F653..SPO;F654..MID..(MXC,SA);F654..(SPO,STD)..(IDN,PHL,SA) BLACK,TRIM1# |
1 | ||
| 55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2 | ||||
| 55352-BZ040 |
F653,654..RHD |
1 | ||
| 55352-BZ040 |
F65#..RHD |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-BZ220C0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55411-BZ220C0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-BZB30C1 |
F653..SPO;F654..5F..PHL;F654..(SPO,STD)..(IDN,MA,PHL) BLACK METALLIC,TRIM1# |
1 | ||
| 55412-BZ730C0 |
F653,654..SPO..(IDN,PHL,TH) BLACK METALLIC,TRIM1# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-BZ040C0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55422-BZ040C0 |
F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-BZ080B0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55432-BZ080B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-BZ020C0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55458-BZ020C0 |
F653..SPO;F654..5F..PHL;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55458D - COVER, INSTRUMENT LOWER, RH | ||||
| 55458-BZ040C0 |
F653..4AT..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD);F653..RHD..5F..(LO,SPO,STD,VB) BLACK,TRIM1# |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90044-67579B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,SA,TH) DK.GRAY,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90044-67579B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,SA,TH) DK.GRAY,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 90044-67579C2 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
2 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-BZ010B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) SILVER,TRIM1# |
1 | ||
| 55476-BZ010B0 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(IDN,MA,SA) SILVER,TRIM1# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07215 |
F653,654 |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07215 |
F653,654 |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 9004A-46388 |
F65# |
4 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-BZ050B1 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55501-BZ050B1 |
F653..4AT..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD);F653..RHD..5F..(LO,SPO,STD,VB) DK.GRAY,TRIM1# |
1 | ||
| 55501-BZ050B2 |
F653..4AT..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD);F653..RHD..5F..(LO,SPO,STD,VB) DK.GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-B2030B2 |
F653;F654..MID..(IDN,MA,MXC,PHL,TH);F654..(SPO,STD)..(GEN,IDN,MA,SA,TH) DK.GRAY |
1 | ||
| 55539-BZ090C0 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) BLACK |
1 | ||
| 55539-B2030C1 |
F653;F654..MID..(IDN,MA,MXC,PHL,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK |
1 | ||
| 55539-BZ090C0 |
F65#..GCC,GEN,IDN,MXC,PHL,SA,TH BLACK |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-BZ020B0 |
F654..MID..(MA,MXC,TH);F653..STD..(GEN,MA,PHL);F653..(LO,SPO)..(GEN,IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL,TH) DK.GRAY,TRIM1# |
1 | ||
| 55539-BZ090C0 |
F653..SPO;F654..MID..TH;F654..(SPO,STD)..(IDN,MA,TH) BLACK,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-BZ010B0 |
F653..4AT..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD);F653..RHD..5F..(LO,SPO,STD,VB) DK.GRAY,TRIM1# |
1 | ||
| 55540-BZ010B0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-B2040 |
F65# |
2 | ||
| 55557-B2040 |
F653,654 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-B2040 |
F65# |
2 | ||
| 55557-B2040 |
F653,654 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-BZ050C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55560-BZ050B0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55560-BZ050B0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-BZ080 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55561-BZ081 |
F65#..RHD |
1 | ||
| 55561-BZ080 |
F653..IDN,SA;F654..4AT..STD..TH;F654..MID..(IDN,SA,TH);F654..(SPO,STD)..(IDN,MA,SA) |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-BZ170C0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55641-BZ170C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55646-BZ110C0 |
F653..4AT..SPO;F653..4AT..PHL;F653..5F..(LO,SPO,STD,VB);F654..MID..(MXC,PHL,SA,TH);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55646-BZ110C0 |
F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH) BLACK,TRIM1# |
1 | ||
| 55642 - COVER, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55642-BZ121C1 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) BLACK,TRIM1# |
1 | ||
| 55642-BZ120C0 |
F653,654..SPO BLACK,TRIM1# |
1 | ||
| 55642-BZ121C0 |
F653..SPO;F653..MA,SA;F654..RHD..(SPO,STD);F654..MID..(MA,SA,TH) BLACK,TRIM1# |
1 | ||
| 55642-BZ122C1 |
F653..SA;F653..SPO;F654..MID..(SA,TH);F654..RHD..(SPO,STD) BLACK,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-BZ180C2 |
F653,654..SPO..IDN BLACK,TRIM1# |
1 | ||
| 55650-BZ180C2 |
F65#..SPO..IDN BLACK,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-BZ100C2 |
F653,654..SPO..IDN BLACK,TRIM1# |
1 | ||
| 55660-BZ100C2 |
F65#..SPO..IDN BLACK,TRIM1# |
1 | ||
| 74635 - HOLDER, CARD | ||||
| 74635-BZ090C0 |
F653..SPO;F654..MID..(SA,TH);F654..(SPO,STD)..(IDN,MA,PHL,TH) BLACK METALLIC,TRIM1# |
1 | ||
| Common parts | ||||
| 90044-68324 | ||||
| 9004A-11313 | ||||
| 9004A-11383 | ||||
| 9004A-16036 | ||||
| 9004A-16083 | ||||
| 90119-08C83 | ||||
| 90467-05171 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
