F654RM-GMSFJ (2015)
Toyota Avanza

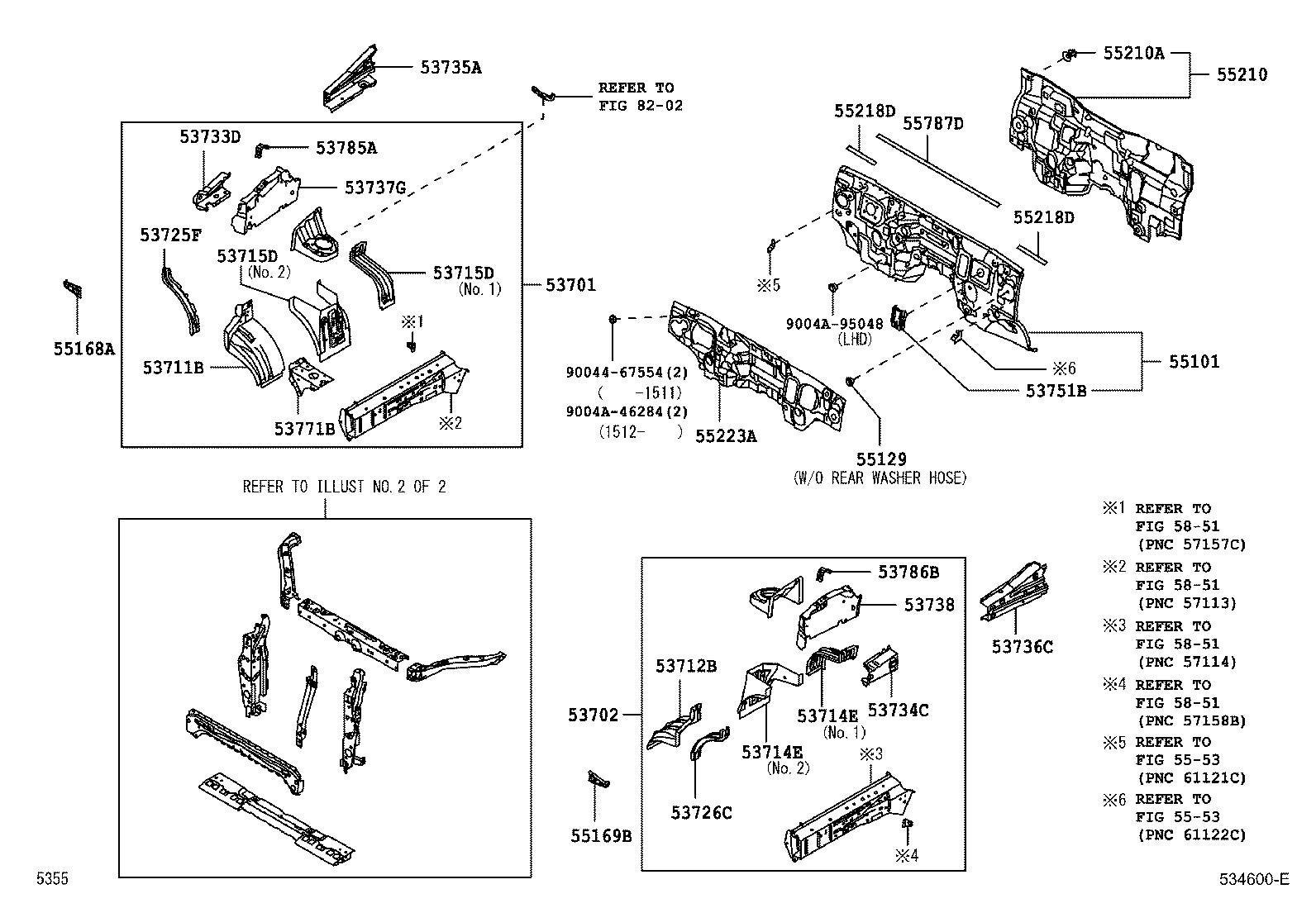

ILLUST NO. 1 OF 2(1507- )F653,654
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-BZ380 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53701-BZ380 |
F65# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-BZ200 |
F65# W/WELD NUT |
1 | ||
| 53702-BZ200 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) W/WELD NUT |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-BZ160 |
F65# |
1 | ||
| 53711-BZ160 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-BZ170 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53712-BZ170 |
F65# |
1 | ||
| 53714E - APRON, FRONT FENDER, REAR LH | ||||
| 53714-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.1 |
1 | ||
| 53714-BZ010 |
F65# NO.1 |
1 | ||
| 53718-BZ101 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.2 |
1 | ||
| 53718-BZ101 |
F65# NO.2 |
1 | ||
| 53718-BZ100 |
F653,654 NO.2 |
1 | ||
| 53714E - APRON, FRONT FENDER, REAR LH | ||||
| 53714-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.1 |
1 | ||
| 53714-BZ010 |
F65# NO.1 |
1 | ||
| 53718-BZ101 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.2 |
1 | ||
| 53718-BZ101 |
F65# NO.2 |
1 | ||
| 53718-BZ100 |
F653,654 NO.2 |
1 | ||
| 53715D - APRON, FENDER SIDE, RH | ||||
| 53717-BZ100 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.2 |
1 | ||
| 53713-BZ010 |
F65# NO.1 |
1 | ||
| 53717-BZ100 |
F65# NO.2 |
1 | ||
| 53713-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.1 |
1 | ||
| 53715D - APRON, FENDER SIDE, RH | ||||
| 53717-BZ100 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.2 |
1 | ||
| 53713-BZ010 |
F65# NO.1 |
1 | ||
| 53717-BZ100 |
F65# NO.2 |
1 | ||
| 53713-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) NO.1 |
1 | ||
| 53725F - APRON, FRONT FENDER NO.2 SIDE, RH | ||||
| 53725-BZ020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53725-BZ020 |
F65# |
1 | ||
| 53726C - APRON, FRONT FENDER NO.2 SIDE, LH | ||||
| 53726-BZ020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53726-BZ020 |
F65# |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-BZ070 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53733-BZ070 |
F65# |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-BZ070 |
F65# |
1 | ||
| 53734-BZ070 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH | ||||
| 57023-BZ020 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 57023-BZ020 |
F65# |
1 | ||
| 53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH | ||||
| 57024-BZ010 |
F65# |
1 | ||
| 57024-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53737G - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-BZ080 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53737-BZ080 |
F65# |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-BZ080 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53738-BZ080 |
F65# |
1 | ||
| 53751B - BRACKET, CHARCOAL CANISTER MOUNTING | ||||
| 53751-BZ140 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53751-BZ140 |
F65#..RHD |
1 | ||
| 53771B - SUPPORT, BATTERY CARRIER, RH | ||||
| 53703-BZ080 |
F65# |
1 | ||
| 53703-BZ080 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53785A - GUSSET, FRONT FENDER APRON, UPPER RH | ||||
| 53785-BZ010 |
F65# |
1 | ||
| 53785-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53786B - GUSSET, FRONT FENDER APRON, UPPER LH | ||||
| 53785-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53785-BZ010 |
F65# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-BZF20 |
F654..5F..(IDN,TH) |
1 | ||
| 55101-BZF20 |
F654..RHD..5F |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-BZ150 |
F653,654 |
1 | ||
| 55168-BZ151 |
F65# |
1 | ||
| 55168-BZ151 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-BZ120 |
F65# |
1 | ||
| 55169-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-BZ561 |
F65#..RHD |
1 | ||
| 55210-BZ450 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
F65# |
9 | ||
| 90467-11122 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
9 | ||
| 55218D - SEAL, DASH PANEL | ||||
| 55259-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 55259-BZ010 |
F65# |
2 | ||
| 55218D - SEAL, DASH PANEL | ||||
| 55259-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 55259-BZ010 |
F65# |
2 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-BZ130 |
F65#..RHD |
1 | ||
| 55223-BZ130 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 55787D - INSULATOR, COWL TOP PANEL, NO.1 | ||||
| 55787-BZ010 |
F65# |
1 | ||
| 55787-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| Common parts | ||||
| 90044-67554 | ||||
| 9004A-46284 | ||||
| 9004A-95048 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5851 | ||||
| 8202 | ||||

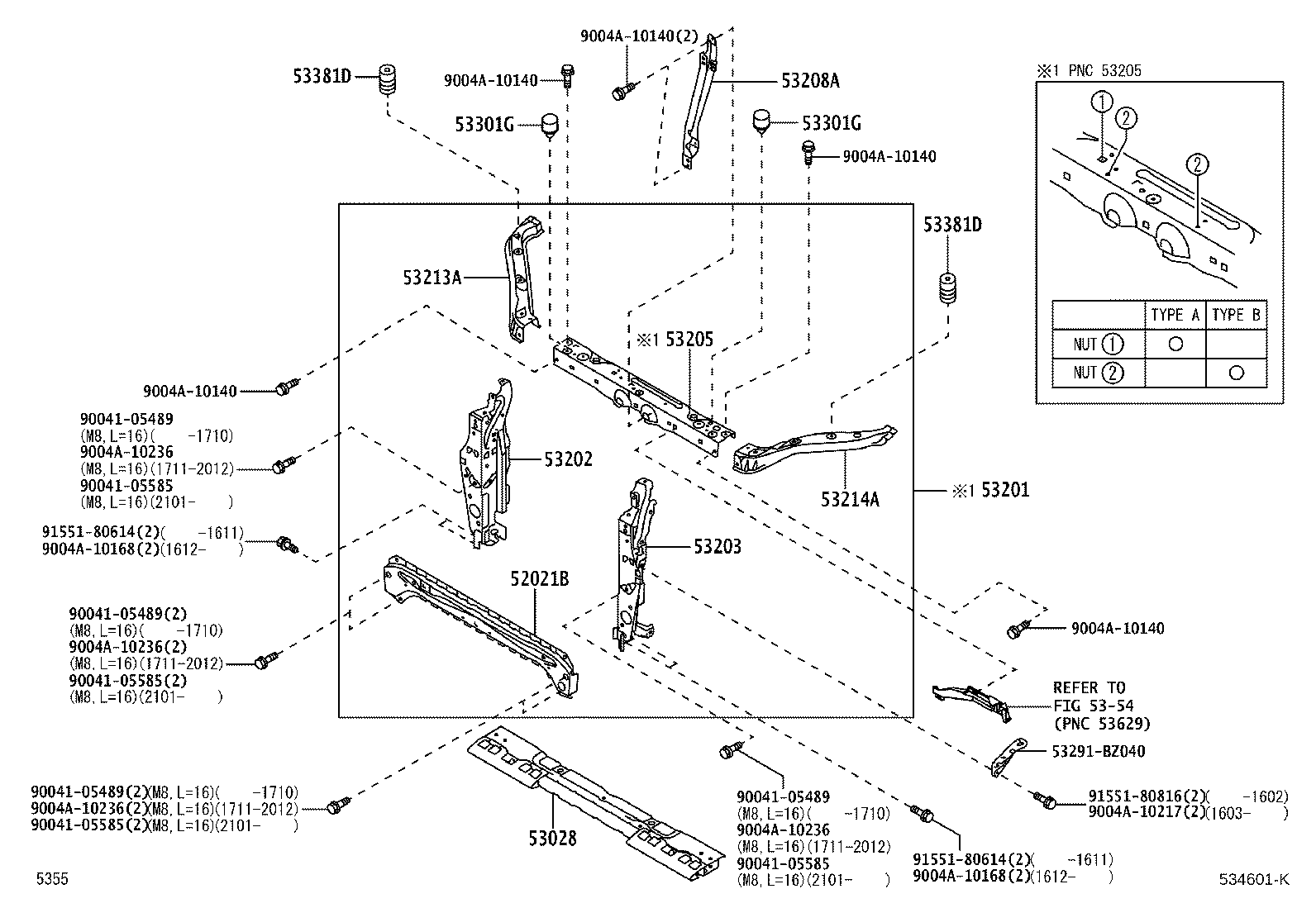

ILLUST NO. 2 OF 2(1507- )F653,654
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021B - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-BZ220 |
F65# |
1 | ||
| 52021-BZ220 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-BZ140 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53028-BZ140 |
F65# |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-BZ290 |
F653,654 TYPE A |
1 | ||
| 53201-BZ340 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) TYPE B |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-BZ100 |
F653,654 |
1 | ||
| 53202-BZ101 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53202-BZ101 |
F65# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-BZ170 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53203-BZ170 |
F65# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-BZ180 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) TYPE B |
1 | ||
| 53205-BZ160 |
F653,654 TYPE A |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-BZ110 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53208-BZ100 |
F65# |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-BZ120 |
F65# |
1 | ||
| 53213-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-BZ080 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53214-BZ080 |
F65# |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 9004A-54015 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-54015 |
F65# |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 9004A-54015 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-54015 |
F65# |
2 | ||
| 53381D - BUMPER, HOOD TO FRONT SHROUD | ||||
| 53381-BZ010 |
F65# |
2 | ||
| 53381-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 53381D - BUMPER, HOOD TO FRONT SHROUD | ||||
| 53381-BZ010 |
F65# |
2 | ||
| 53381-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| Common parts | ||||
| 53291-BZ040 | ||||
| 90041-05489 | ||||
| 90041-05585 | ||||
| 9004A-10140 | ||||
| 9004A-10168 | ||||
| 9004A-10217 | ||||
| 9004A-10236 | ||||
| 91551-80614 | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 5354 | ||||
