F654RM-GMSFJ (2015)
Toyota Avanza
(1507- )F653,654

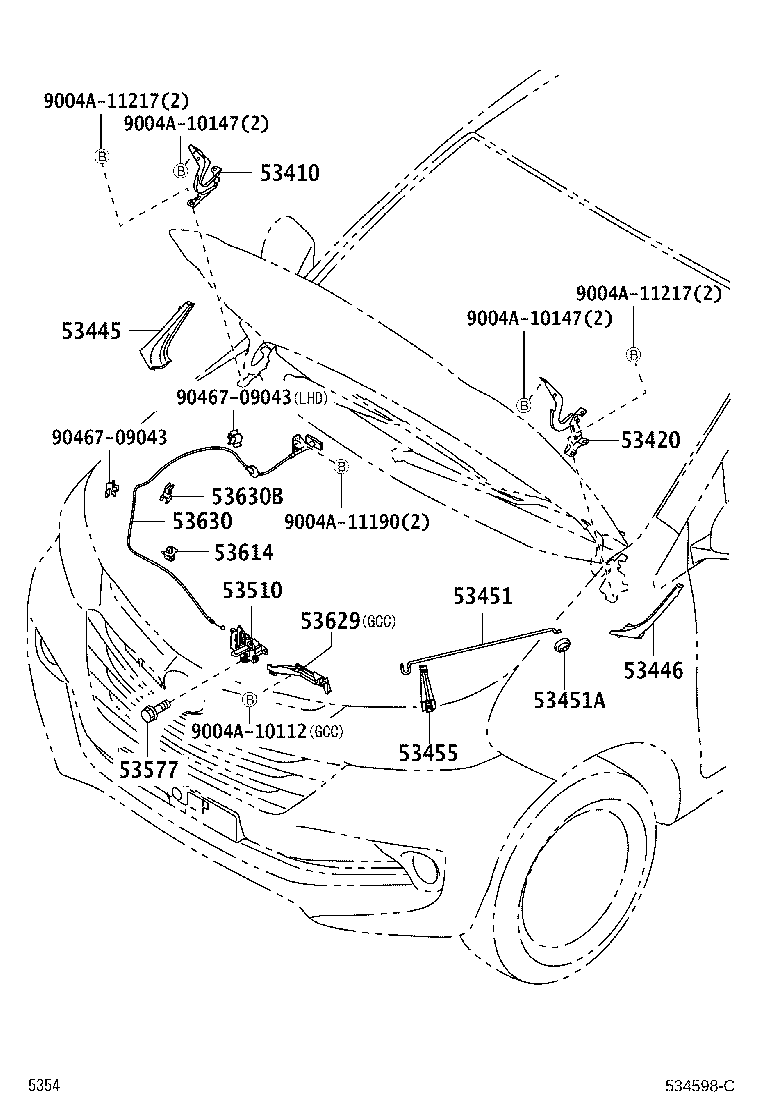

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-BZ060 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53410-BZ060 |
F65# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-BZ060 |
F65# |
1 | ||
| 53420-BZ060 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53445 - COVER, HOOD HINGE, RH | ||||
| 53445-BZ060 |
F65# |
1 | ||
| 53445-BZ060 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53446 - COVER, HOOD HINGE, LH | ||||
| 53446-BZ060 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53446-BZ060 |
F65# |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53451-BZ120 |
F65# |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90044-80667 |
F65# |
1 | ||
| 90044-80667 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-BZ130 |
F65# |
1 | ||
| 53455-BZ130 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-BZ250 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53510-BZ250 |
F65#..RHD |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 90041-05207 |
F653,654 M6,L=12 |
3 | ||
| 9004A-10091 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) M6,L=12 |
3 | ||
| 9004A-11235 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) M6,L=16 |
3 | ||
| 9004A-10091 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) M6,L=12 |
3 | ||
| 9004A-11235 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) M6,L=16 |
3 | ||
| 90041-05589 |
F65# M6,L=12 |
3 | ||
| 53614 - CLAMP, HOOD LOCK CONTROL CABLE | ||||
| 90044-64659 |
F65# |
1 | ||
| 90044-64659 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-BZ230 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 53630-BZ230 |
F65#..RHD |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 9004A-46333 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 90044-64879 |
F653,654 |
1 | ||
| 9004A-46333 |
F65# |
1 | ||
| Common parts | ||||
| 9004A-10112 | ||||
| 9004A-10147 | ||||
| 9004A-11190 | ||||
| 9004A-11217 | ||||
| 90467-09043 | ||||
