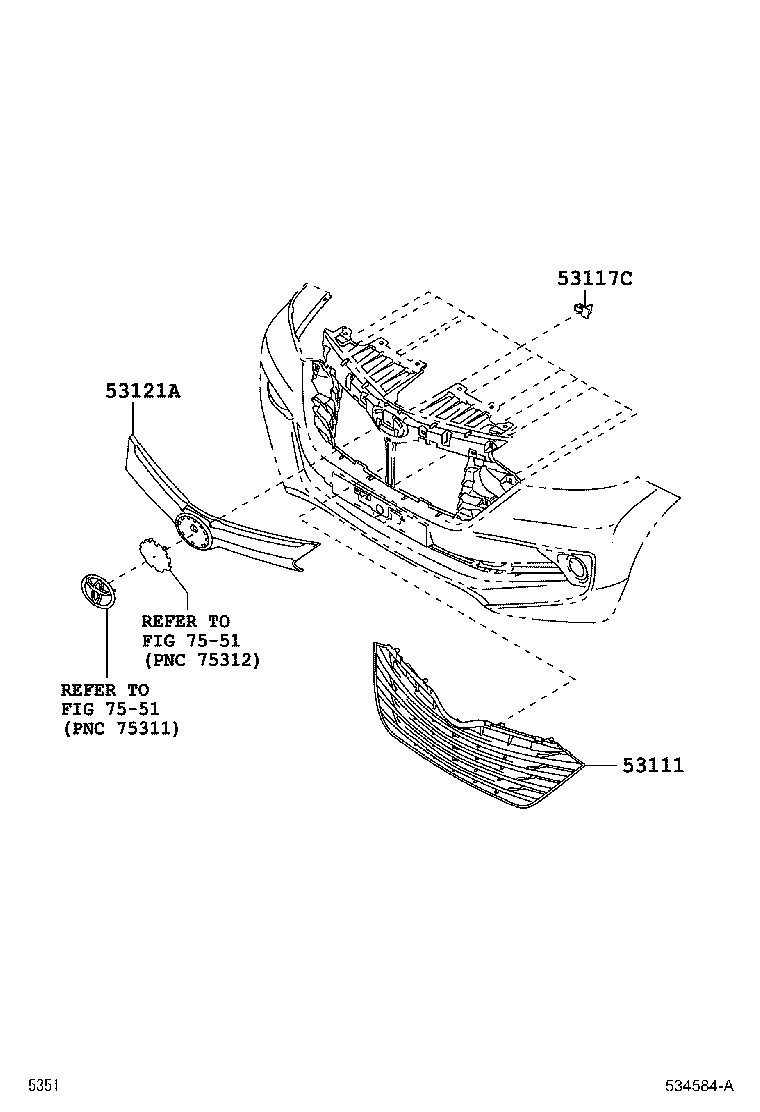

F654RM-GMSFJ (2015)
Toyota Avanza
(1507-1901)MID,STD..IDN ; (1507-1904)LO,MID,STD,VB..GCC,GEN,MA,MXC,PHL,SA,TH ; (190
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-BZ510 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 53111-BZ510 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-BZ010 |
F653,654..SPO |
10 | ||
| 76854-BZ010 |
F653,654..SPO |
10 | ||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
6 | ||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
6 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 53121-BZ220 |
F653..STD..GEN;F654..GEN,IDN,MXC,PHL,TH;F654..(MID,SPO)..(GCC,MA,SA);F653..(LO,MID,SPO)..(GEN,IDN) |
1 | ||
| 53121-BZ220 |
F653..STD..GEN;F654..GEN,IDN,MXC,PHL,TH;F654..(MID,SPO)..(GCC,MA,SA);F653..(LO,MID,SPO)..(GEN,IDN) |
1 | ||
| 53121-BZ550 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 53121-BZ550 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| Linked diagrams | ||||
| 7551 | ||||

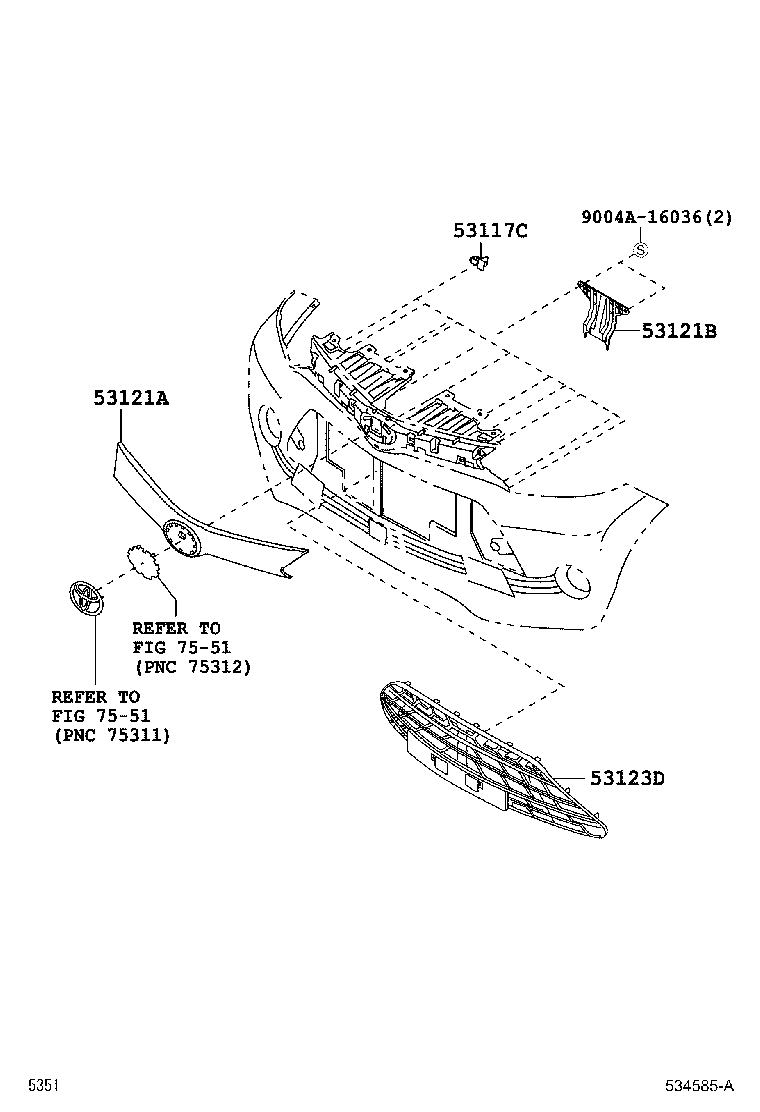

(1507-1901)SPO..IDN ; (1507-1904)F654..GCC,GEN,MA,MXC,PHL,SA,TH ; (1507-1904)F651,6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-BZ010 |
F653,654..SPO |
10 | ||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
6 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 53121-BZ220 |
F653..STD..GEN;F654..GEN,IDN,MXC,PHL,TH;F654..(MID,SPO)..(GCC,MA,SA);F653..(LO,MID,SPO)..(GEN,IDN) |
1 | ||
| 53121-BZ550 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 53121B - MOULDING, RADIATOR GRILLE, UPPER | ||||
| 52122-BZ010 |
F653,654..SPO..(IDN,TH) |
1 | ||
| 53123D - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53123-BZ100 |
F653,654..SPO..(IDN,TH) |
1 | ||
| Common parts | ||||
| 9004A-16036 | ||||
| Linked diagrams | ||||
| 7551 | ||||
(1901- )MID,STD..IDN ; (1904- )MID..SA ; (1904- )STD..PHL ; (1904- )F65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-BZ510 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-BZ010 |
F653,654..SPO |
10 | ||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
6 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-BZ010 |
F653,654..SPO |
10 | ||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
6 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-BZ010 |
F653,654..SPO |
10 | ||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
6 | ||
| 53118D - RETAINER, RADIATOR GRILLE, NO.2 | ||||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
3 | ||
| 53118D - RETAINER, RADIATOR GRILLE, NO.2 | ||||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
3 | ||
| 53118D - RETAINER, RADIATOR GRILLE, NO.2 | ||||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
3 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 53121-BZ220 |
F653..STD..GEN;F654..GEN,IDN,MXC,PHL,TH;F654..(MID,SPO)..(GCC,MA,SA);F653..(LO,MID,SPO)..(GEN,IDN) |
1 | ||
| 53121-BZ550 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| Common parts | ||||
| 90041-79134 | ||||
| Linked diagrams | ||||
| 7551 | ||||
(1901- )SPO..IDN ; (1904- )F654..SPO,STD..MA,PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-BZ510 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-BZ010 |
F653,654..SPO |
10 | ||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
6 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-BZ010 |
F653,654..SPO |
10 | ||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
6 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-BZ010 |
F653,654..SPO |
10 | ||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
6 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-BZ010 |
F653,654..SPO |
10 | ||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
6 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-BZ010 |
F653,654..SPO |
10 | ||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
6 | ||
| 53118D - RETAINER, RADIATOR GRILLE, NO.2 | ||||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
3 | ||
| 53118D - RETAINER, RADIATOR GRILLE, NO.2 | ||||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
3 | ||
| 53118D - RETAINER, RADIATOR GRILLE, NO.2 | ||||
| 76854-BZ010 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
3 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 53121-BZ220 |
F653..STD..GEN;F654..GEN,IDN,MXC,PHL,TH;F654..(MID,SPO)..(GCC,MA,SA);F653..(LO,MID,SPO)..(GEN,IDN) |
1 | ||
| 53121-BZ550 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| Common parts | ||||
| 90041-79134 | ||||
| Linked diagrams | ||||
| 7551 | ||||
