F654RM-GMSFJ (2015)
Toyota Avanza

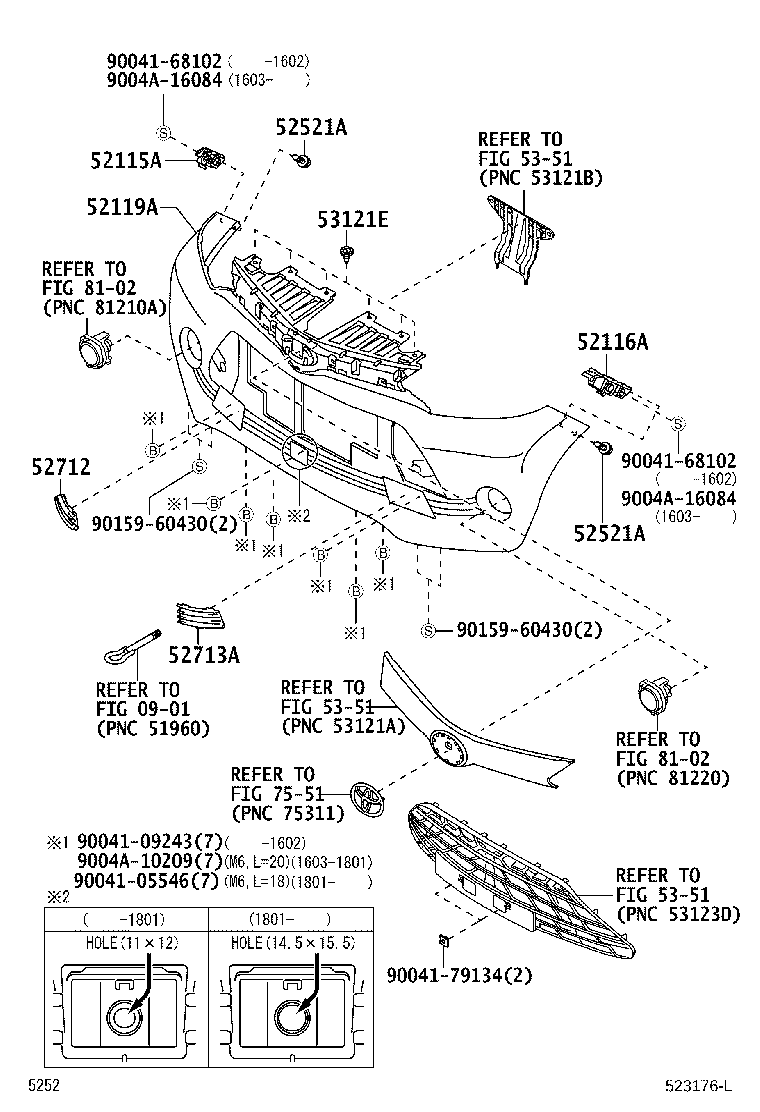

(1507-1901)MID,STD..IDN ; (1507-1904)LO,MID,STD,VB..GCC,GEN,MA,MXC,PHL,SA,TH ; (150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 52115-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 52115-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 52115-BZ120 |
F65# |
1 | ||
| 52115-BZ120 |
F65# |
1 | ||
| 52115-BZ120 |
F65# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-BZ150 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 52116-BZ150 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 52116-BZ150 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 52116-BZ150 |
F65# |
1 | ||
| 52116-BZ150 |
F65# |
1 | ||
| 52116-BZ150 |
F65# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-BZD50 |
F653,654..SPO |
1 | ||
| 52119-BZD50 |
F653,654..SPO |
1 | ||
| 52119-BZD50 |
F653,654..SPO |
1 | ||
| 52119-BZD51 |
F65#..SPO..(IDN,TH) |
1 | ||
| 52119-BZD51 |
F65#..SPO..(IDN,TH) |
1 | ||
| 52119-BZD51 |
F65#..SPO..(IDN,TH) |
1 | ||
| 52119-BZN70 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) L(FOG LAMP) |
1 | ||
| 52119-BZN70 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) L(FOG LAMP) |
1 | ||
| 52119-BZN70 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) L(FOG LAMP) |
1 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 9004A-46380 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46380 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46380 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46380 |
F65# |
2 | ||
| 9004A-46380 |
F65# |
2 | ||
| 9004A-46380 |
F65# |
2 | ||
| 90044-67555 |
F653,654 |
2 | ||
| 90044-67555 |
F653,654 |
2 | ||
| 90044-67555 |
F653,654 |
2 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 9004A-46380 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46380 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46380 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46380 |
F65# |
2 | ||
| 9004A-46380 |
F65# |
2 | ||
| 9004A-46380 |
F65# |
2 | ||
| 90044-67555 |
F653,654 |
2 | ||
| 90044-67555 |
F653,654 |
2 | ||
| 90044-67555 |
F653,654 |
2 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-BZ350 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 52712-BZ350 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 52712-BZ350 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 52712-BZ150 |
F653,654..SPO..(IDN,TH) |
1 | ||
| 52712-BZ150 |
F653,654..SPO..(IDN,TH) |
1 | ||
| 52712-BZ150 |
F653,654..SPO..(IDN,TH) |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-BZ150 |
F653,654..SPO |
1 | ||
| 52713-BZ150 |
F653,654..SPO |
1 | ||
| 52713-BZ150 |
F653,654..SPO |
1 | ||
| 52713-BZ340 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 52713-BZ340 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 52713-BZ340 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 9004A-46323 |
F65# |
6 | ||
| 9004A-46323 |
F65# |
6 | ||
| 9004A-46323 |
F65# |
6 | ||
| 9004A-46323 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
6 | ||
| 9004A-46323 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
6 | ||
| 9004A-46323 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
6 | ||
| Common parts | ||||
| 90041-05546 | ||||
| 90041-09243 | ||||
| 90041-68102 | ||||
| 90041-79134 | ||||
| 9004A-10209 | ||||
| 9004A-16084 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 5351 | ||||
| 7551 | ||||

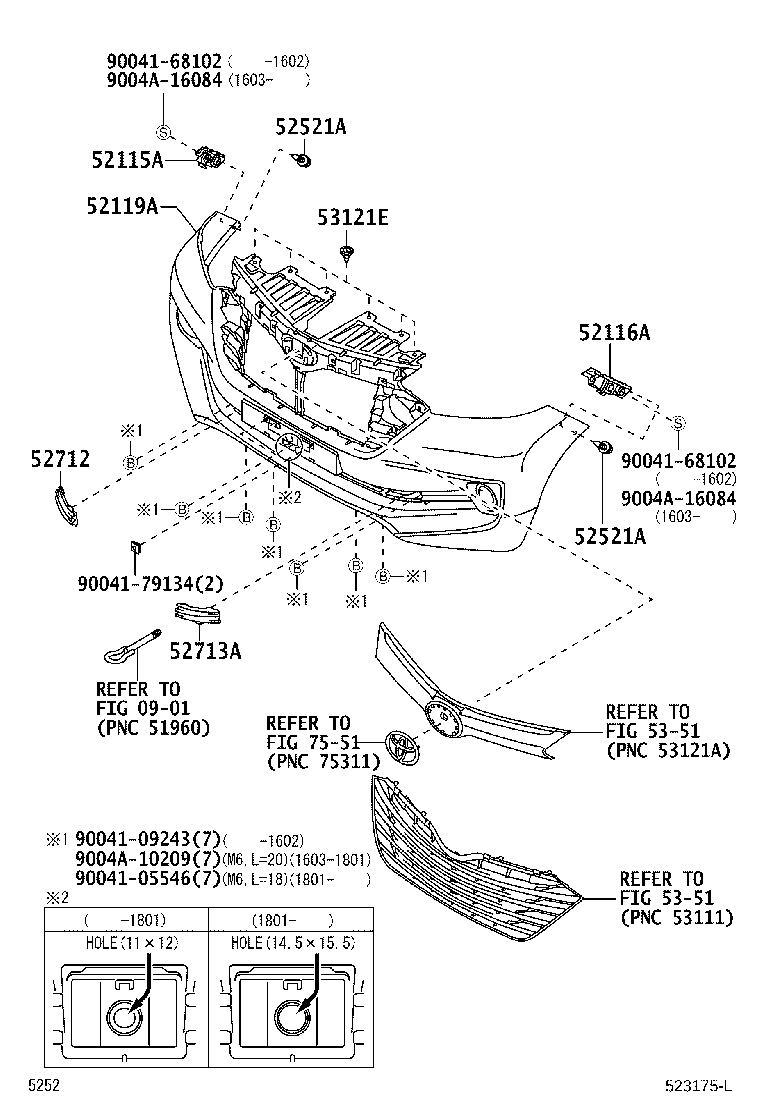

(1507-1901)SPO..IDN ; (1507-1904)F654..SPO..MA,PHL,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 52115-BZ120 |
F65# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-BZ150 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 52116-BZ150 |
F65# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-BZD50 |
F653,654..SPO |
1 | ||
| 52119-BZD51 |
F65#..SPO..(IDN,TH) |
1 | ||
| 52119-BZN70 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) L(FOG LAMP) |
1 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 9004A-46380 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46380 |
F65# |
2 | ||
| 90044-67555 |
F653,654 |
2 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 9004A-46380 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46380 |
F65# |
2 | ||
| 90044-67555 |
F653,654 |
2 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-BZ350 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 52712-BZ150 |
F653,654..SPO..(IDN,TH) |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-BZ150 |
F653,654..SPO |
1 | ||
| 52713-BZ340 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 9004A-46323 |
F65# |
6 | ||
| 9004A-46323 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
6 | ||
| Common parts | ||||
| 90041-05546 | ||||
| 90041-09243 | ||||
| 90041-68102 | ||||
| 90041-79134 | ||||
| 9004A-10209 | ||||
| 9004A-16084 | ||||
| 90159-60430 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 5351 | ||||
| 7551 | ||||
| 8102 | ||||

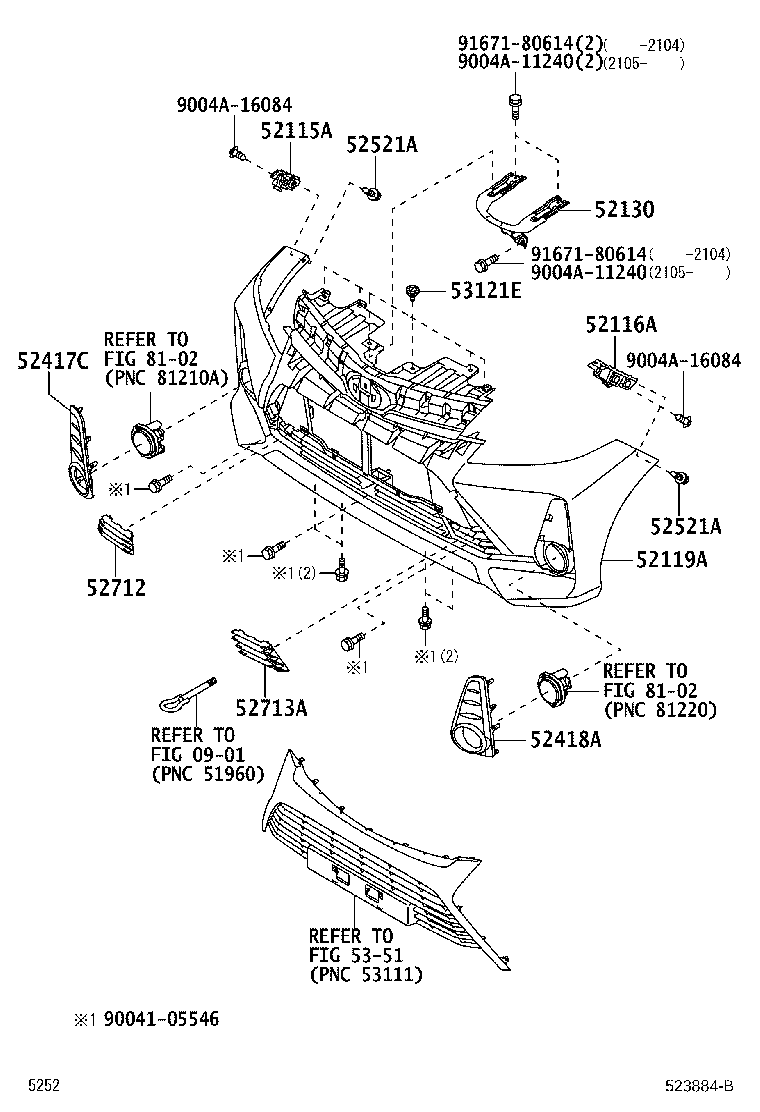

(1901- )SPO..IDN ; (1904- )F654..SPO,STD..MA,PHL
AERO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-BZ120 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 52115-BZ120 |
F65# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-BZ150 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 52116-BZ150 |
F65# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-BZD50 |
F653,654..SPO |
1 | ||
| 52119-BZD51 |
F65#..SPO..(IDN,TH) |
1 | ||
| 52119-BZN70 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) L(FOG LAMP) |
1 | ||
| 52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52130-BZ090 |
F654..MID..SA;F653..MID..GEN;F654..STD..GEN;F65#..(MID,SPO,STD)..(GCC,IDN,MA,MXC,PHL,TH) |
1 | ||
| 52417C - INSERT, FRONT BUMPER GUARD, LOWER RH | ||||
| 52715-BZ030 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 52418A - INSERT, FRONT BUMPER GUARD, LOWER LH | ||||
| 52716-BZ030 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 9004A-46380 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46380 |
F65# |
2 | ||
| 90044-67555 |
F653,654 |
2 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 9004A-46380 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46380 |
F65# |
2 | ||
| 90044-67555 |
F653,654 |
2 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-BZ350 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 52712-BZ150 |
F653,654..SPO..(IDN,TH) |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-BZ150 |
F653,654..SPO |
1 | ||
| 52713-BZ340 |
F653..SPO;F654..(SPO,STD)..(IDN,MA,PHL) |
1 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 9004A-46323 |
F65# |
6 | ||
| 9004A-46323 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
6 | ||
| Common parts | ||||
| 90041-05546 | ||||
| 9004A-11240 | ||||
| 9004A-16084 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 5351 | ||||
| 8102 | ||||
