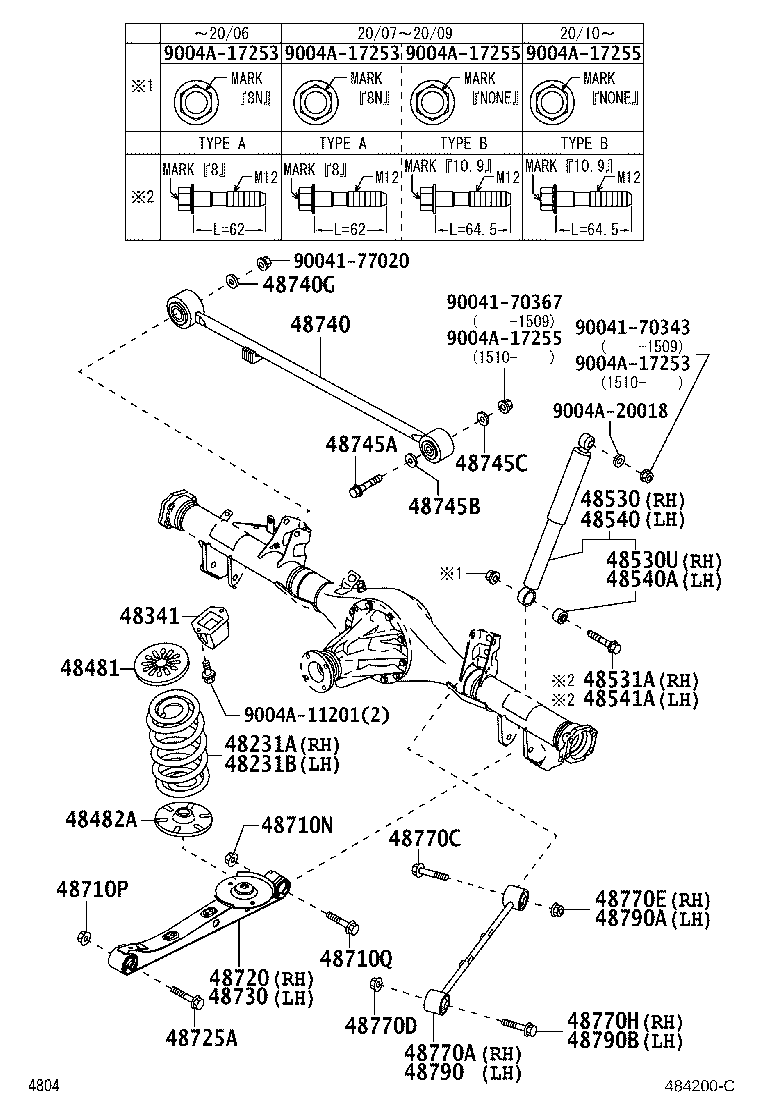

F654RM-GMSFJ (2015)
Toyota Avanza
(1507- )F653,654
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-BZ610 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 48231-BZ830 |
F65# |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-BZ610 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 48231-BZ830 |
F65# |
1 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-BZ130 |
F65# |
2 | ||
| 48341-BZ130 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-BZ010 |
F65# |
2 | ||
| 48481-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 48482A - SEAT, REAR SPRING, LOWER | ||||
| 48482-BZ010 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 48482-BZ010 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-BZ090 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) MARK 48530-BZ090 |
1 | ||
| 48530-BZ240 |
F65# MARK 48530-BZ240 |
1 | ||
| 48530U - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 48537-BZ040 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 48537-BZ040 |
F65# |
1 | ||
| 48531A - BOLT, UNION(FOR REAR SHOCK ABSORBER RH) | ||||
| 90041-05375 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) TYPE A |
1 | ||
| 9004A-10201 |
F65# TYPE B |
1 | ||
| 90041-05375 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-BZ090 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) MARK 48530-BZ090 |
1 | ||
| 48530-BZ240 |
F65# MARK 48530-BZ240 |
1 | ||
| 48540A - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 48537-BZ040 |
F65# |
1 | ||
| 48537-BZ040 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 48541A - BOLT, UNION(FOR REAR SHOCK ABSORBER LH) | ||||
| 9004A-10201 |
F65# TYPE B |
1 | ||
| 90041-05375 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 90041-05375 |
F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) TYPE A |
1 | ||
| 48710N - NUT, NO.1(FOR REAR LOWER CONTROL ARM) | ||||
| 9004A-17254 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 90041-70366 |
F653,654 |
2 | ||
| 9004A-17254 |
F65# |
2 | ||
| 48710P - NUT, NO.2(FOR REAR LOWER CONTROL ARM) | ||||
| 9004A-17257 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 90041-79318 |
F653,654 |
2 | ||
| 9004A-17257 |
F65# |
2 | ||
| 48710Q - BOLT(FOR REAR LOWER CONTROL ARM) | ||||
| 9004A-10159 |
F65# |
2 | ||
| 9004A-10159 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 90041-01664 |
F653,654 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-BZ070 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 48720-BZ070 |
F65# |
1 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90041-05378 |
F653,654 |
2 | ||
| 9004A-10149 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-10149 |
F65# |
2 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-BZ070 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 48720-BZ070 |
F65# |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-BZ130 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 48740-BZ130 |
F65# |
1 | ||
| 48740G - WASHER, PLATE, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 9004A-20017 |
F65# |
1 | ||
| 9004A-20017 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 9004A-10160 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 9004A-10160 |
F65# |
1 | ||
| 90041-05407 |
F653,654 |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 9004A-20039 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 9004A-20039 |
F65# |
1 | ||
| 48745C - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 9004A-20039 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 9004A-20039 |
F65# |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48710-BZ330 |
F65# W/ABS |
1 | ||
| 48710-BZ330 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) W/ABS |
1 | ||
| 48770C - BOLT(FOR REAR UPPER CONTROL ARM) | ||||
| 9004A-10157 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-10157 |
F65# |
2 | ||
| 90041-01662 |
F653,654 |
2 | ||
| 48770D - NUT(FOR REAR UPPER CONTROL ARM) | ||||
| 90041-79318 |
F653,654 |
2 | ||
| 9004A-17257 |
F65# |
2 | ||
| 9004A-17257 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
2 | ||
| 48770E - NUT, NO.1(FOR REAR UPPER CONTROL ARM RH) | ||||
| 9004A-17254 |
F65# |
1 | ||
| 90041-70366 |
F653,654 |
1 | ||
| 9004A-17254 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 48770H - BOLT(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90041-01661 |
F653,654 |
1 | ||
| 9004A-10152 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 9004A-10152 |
F65# |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48710-BZ330 |
F65# W/ABS |
1 | ||
| 48710-BZ330 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) W/ABS |
1 | ||
| 48790A - NUT, NO.1(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90041-70366 |
F653,654 |
1 | ||
| 9004A-17254 |
F65# |
1 | ||
| 9004A-17254 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 48790B - BOLT(FOR REAR UPPER CONTROL ARM LH) | ||||
| 9004A-10152 |
F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH) |
1 | ||
| 9004A-10152 |
F65# |
1 | ||
| 90041-01661 |
F653,654 |
1 | ||
| Common parts | ||||
| 90041-70343 | ||||
| 90041-70367 | ||||
| 90041-77020 | ||||
| 9004A-11201 | ||||
| 9004A-17253 | ||||
| 9004A-17255 | ||||
| 9004A-20018 | ||||
