F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1111-1508)MID..MA ; (1111-1508)F651..SA ; (1111-1508)F651..MID,STD..GEN ; (1111-15

Click highlighted areas on diagram

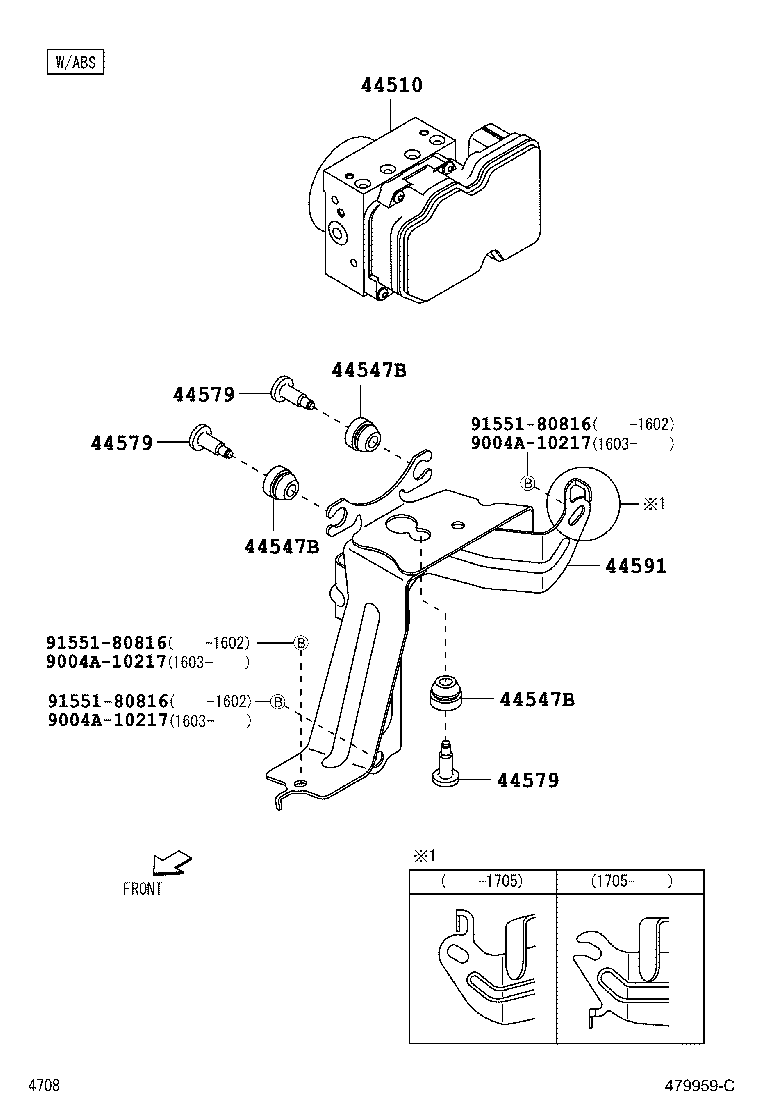

ABS ACTUATOR

diagram 3102 44510 44547B 44547B 44547B 44579 44579 44579 44591 9155180816 9155180816 9155180816 9155180816 9415180800
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-BZ040

F653,654..GEN,IDN,MA,MXC,PHL,TH

 1
44050-BZ040

F653,654..GEN,IDN,MA,MXC,PHL,TH

 1
44050-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
44050-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-BZ030

F653,654..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F653,654..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-BZ030

F653,654..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F653,654..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-BZ030

F653,654..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F653,654..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44579 - BOLT, BRAKE ACTUATOR BRACKET
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-B5020

F653,654

 3
44548-B5020

F653,654

 3
44579 - BOLT, BRAKE ACTUATOR BRACKET
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-B5020

F653,654

 3
44548-B5020

F653,654

 3
44579 - BOLT, BRAKE ACTUATOR BRACKET
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-B5020

F653,654

 3
44548-B5020

F653,654

 3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-BZ040

F653,654..GEN,IDN,MA,MXC,PHL,TH

 1
44590-BZ040

F653,654..GEN,IDN,MA,MXC,PHL,TH

 1
44590-BZ120

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
44590-BZ120

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
44590-BZ041

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
44590-BZ041

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
44590-BZ120

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
44590-BZ120

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
Common parts
91551-80816
94151-80800
Linked diagrams
3102

(1507- )F653,654..RHD

Click highlighted areas on diagram

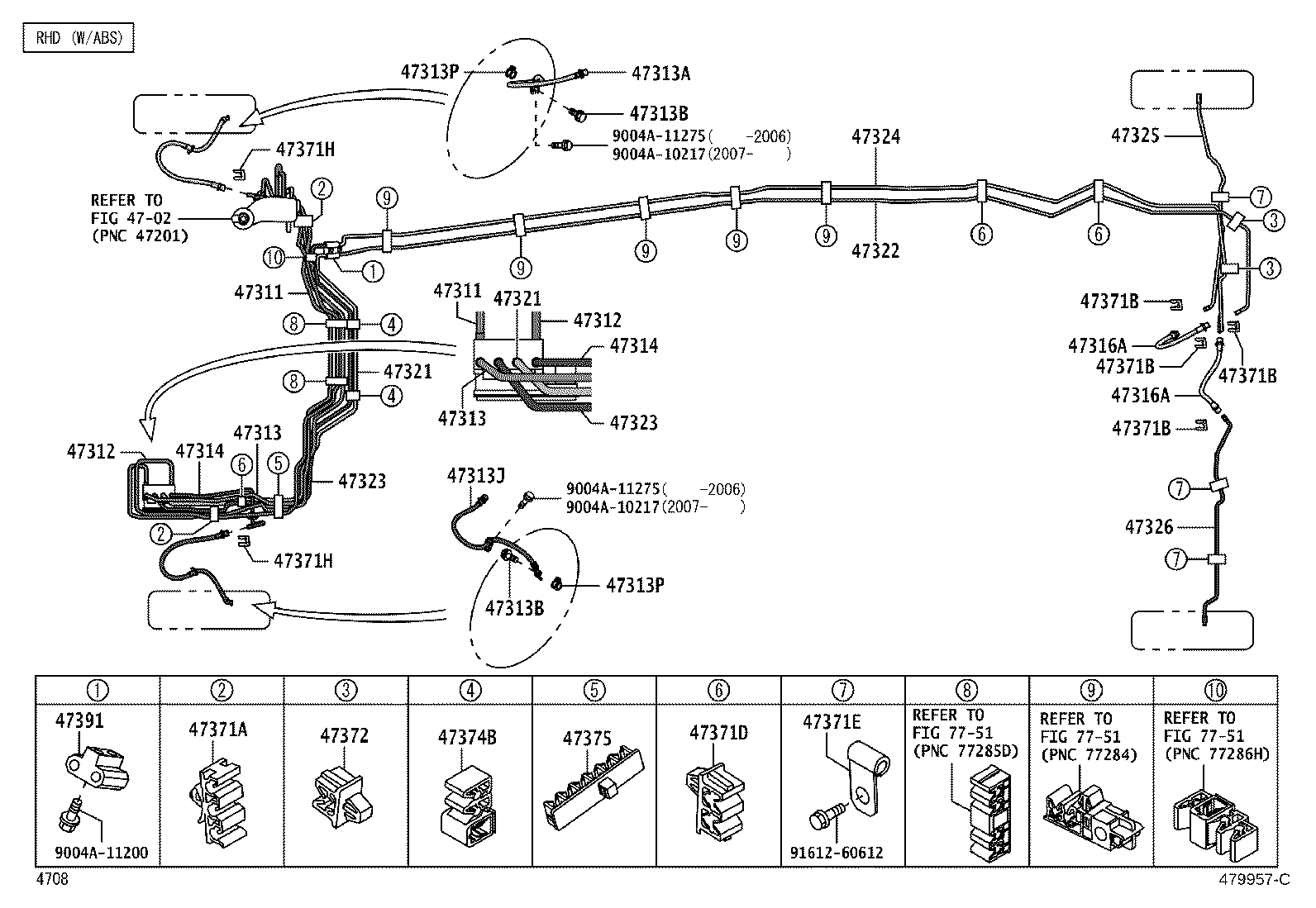

RHD W/ABS

diagram 4702 47311 47311 47312 47312 47313 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47314 47316A 47316A 47321 47321 47322 47323 47323 47324 47325 47326 47371A 47371B 47371B 47371B 47371B 47371D 47371E 47371H 47371H 47372 47374B 47375 47391 7751 7751 7751 9004A10217 9004A10217 9004A11200 9004A11275 9004A11275 9161260612
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-BZ450

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47311-BZ450

F65#..IDN,MA,TH

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-BZ450

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47311-BZ450

F65#..IDN,MA,TH

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-BZ480

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47312-BZ480

F65#..IDN,MA,TH

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-BZ480

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47312-BZ480

F65#..IDN,MA,TH

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-BZ440

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47313-BZ440

F65#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-BZ440

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47313-BZ440

F65#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
47330-BZ020

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47330-BZ020

F65#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
90401-10058

F65#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
90401-10058

F65#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
47330-BZ020

F65#

 1
47330-BZ020

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
47389-50020

F65#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
47389-50020

F65#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-BZ500

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47314-BZ500

F65#

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-BZ500

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47314-BZ500

F65#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
9004A-94118

F65#

 2
9004A-94118

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
9004A-94118

F65#

 2
9004A-94118

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
47321 - TUBE, REAR BRAKE, NO.1
47321-BZ260

F65#

 1
47321-BZ260

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-BZ260

F65#

 1
47321-BZ260

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-BZ280

F65#

 1
47322-BZ280

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-BZ190

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47323-BZ190

F65#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-BZ190

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47323-BZ190

F65#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-BZ400

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47324-BZ400

F65#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-BZ190

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47325-BZ190

F65#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-BZ220

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47326-BZ220

F65#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
9004A-46290

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
9004A-46290

F65#..GEN,IDN,MA,MXC,PHL,TH

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441

F65#

 4
90044-65441

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 4
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441

F65#

 4
90044-65441

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 4
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441

F65#

 4
90044-65441

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 4
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441

F65#

 4
90044-65441

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 4
47371D - CLAMP, BRAKE TUBE, NO.8
90044-64713

F653,654

 3
9004A-46321

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 3
9004A-46321

F65#

 3
47371E - CLAMP, BRAKE TUBE, NO.9
96221-30705

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 3
96221-30705

F65#

 3
47371H - CLAMP, BRAKE TUBE, NO.12
90044-65441

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
90044-65441

F65#

 2
47371H - CLAMP, BRAKE TUBE, NO.12
90044-65441

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
90044-65441

F65#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
9004A-46296

F65#

 2
9004A-46296

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
47374B - CLAMP, BRAKE TUBE, NO.4
90044-64710

F65#

 2
90044-64710

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64596

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
90044-64596

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
47391 - WAY, BRAKE TUBE
44589-B2010

F653,654

 1
44589-BZ020

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
44589-BZ020

F65#

 1
Common parts
9004A-10217
9004A-11200
9004A-11275
91612-60612
Linked diagrams
4702
7751

(1507-1609)F653,654..GCC,SA ; (1507- )F653,654..GEN,IDN,MA,MXC,PHL,TH ; (1609-

Click highlighted areas on diagram

ABS ACTUATOR

diagram 44510 44547B 44547B 44547B 44579 44579 44579 44591 9004A10217 9004A10217 9004A10217 9155180816 9155180816 9155180816
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-BZ040

F653,654..GEN,IDN,MA,MXC,PHL,TH

 1
44050-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-BZ030

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F653,654..GEN,IDN,MA,MXC,PHL,TH

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-BZ030

F653,654..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-BZ030

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44547-BZ030

F653,654..GEN,IDN,MA,MXC,PHL,TH

 3
44579 - BOLT, BRAKE ACTUATOR BRACKET
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-B5020

F653,654

 3
44579 - BOLT, BRAKE ACTUATOR BRACKET
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-B5020

F653,654

 3
44579 - BOLT, BRAKE ACTUATOR BRACKET
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-BZ040

F65#..GEN,IDN,MA,MXC,PHL,TH

 3
44548-B5020

F653,654

 3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-BZ040

F653,654..GEN,IDN,MA,MXC,PHL,TH

 1
44590-BZ120

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
44590-BZ041

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
44590-BZ120

F65#..GEN,IDN,MA,MXC,PHL,TH

 1
Common parts
9004A-10217
91551-80816
