F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )F653,654..RHD

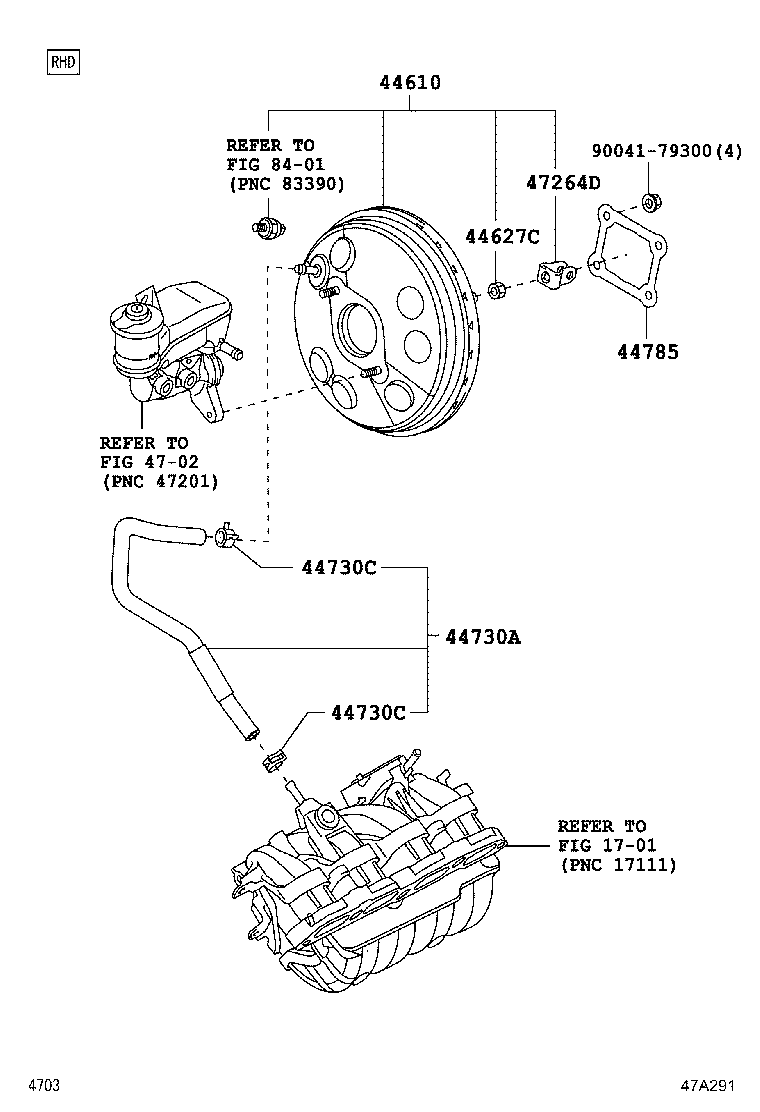

Click highlighted areas on diagram

RHD

diagram 1701 44610 44627C 44730A 44730C 44730C 44785 4702 47264D 8401 9004179300
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-BZ510

F653,654..5F..(IDN,MA,TH)

 1
44610-BZ510

F65#..RHD..5F

 1
44627C - NUT, BOOSTER SLEEVE CYLINDER
9004A-17229

F65#

 1
9004A-17229

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
44730A - HOSE, VACUUM, NO.1
44750-BZ250

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
44750-BZ250

F65#..RHD

 1
44730C - CLIP(FOR VACUUM HOSE)
90044-67161

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
90044-67161

F65#

 2
44730C - CLIP(FOR VACUUM HOSE)
90044-67161

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
90044-67161

F65#

 2
44785 - GASKET, BRAKE BOOSTER
47275-BZ010

F65#

 1
47275-BZ010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-BZ120

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47264-BZ120

F65#

 1
Common parts
90041-79300
Linked diagrams
1701
4702
8401
