F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )F653,654

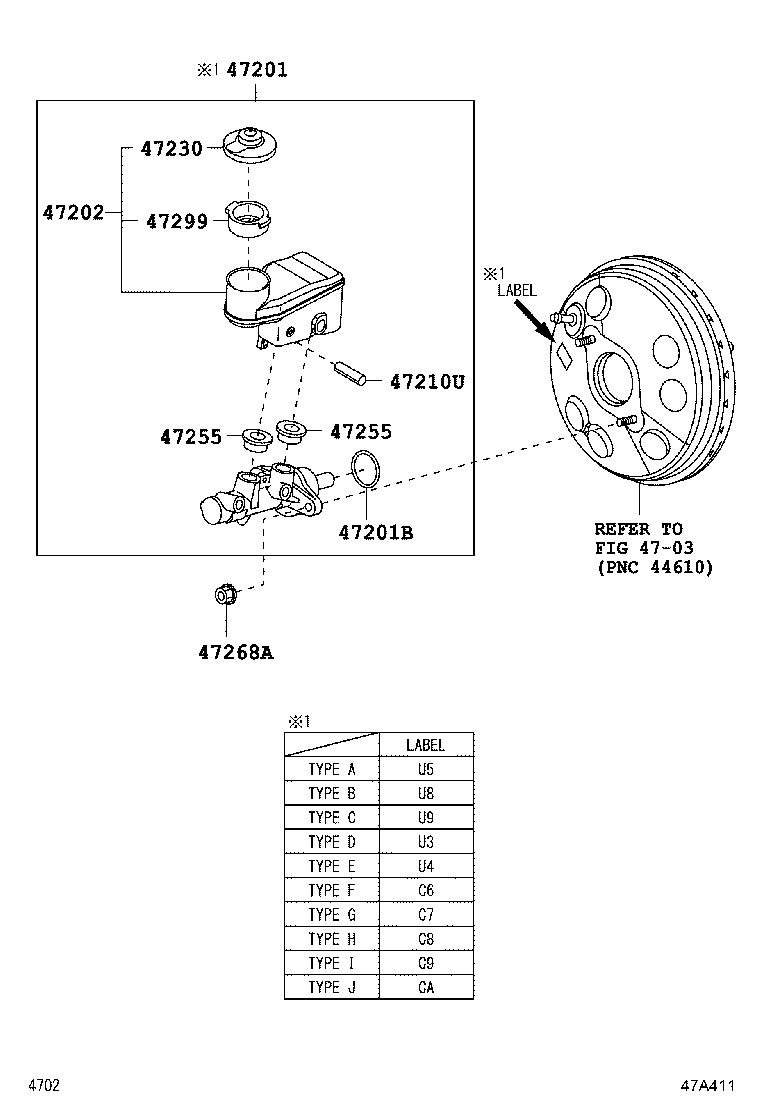

Click highlighted areas on diagram

diagram 4703 47201 47201B 47202 47210U 47230 47255 47255 47268A 47299
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-BZ560

F654..5F..(IDN,TH)

TYPE B

 1
47201-BZ560

F654..5F..IDN

TYPE B

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90043-01352

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
90043-01352

F65#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-BZ290

F654..5F..(IDN,TH)

 1
47220-BZ290

F654..RHD..5F

 1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90042-43029

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
90042-43029

F65#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-BZ130

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
47230-BZ130

F65#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-BZ110

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
47255-BZ110

F65#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-BZ110

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
47255-BZ110

F65#

 2
47268A - NUT, BRAKE MASTER CYLINDER
90041-79124

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
90041-79124

F65#

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-BZ090

F65#

 1
47299-BZ090

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
Linked diagrams
4703
