F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )SPO..IDN

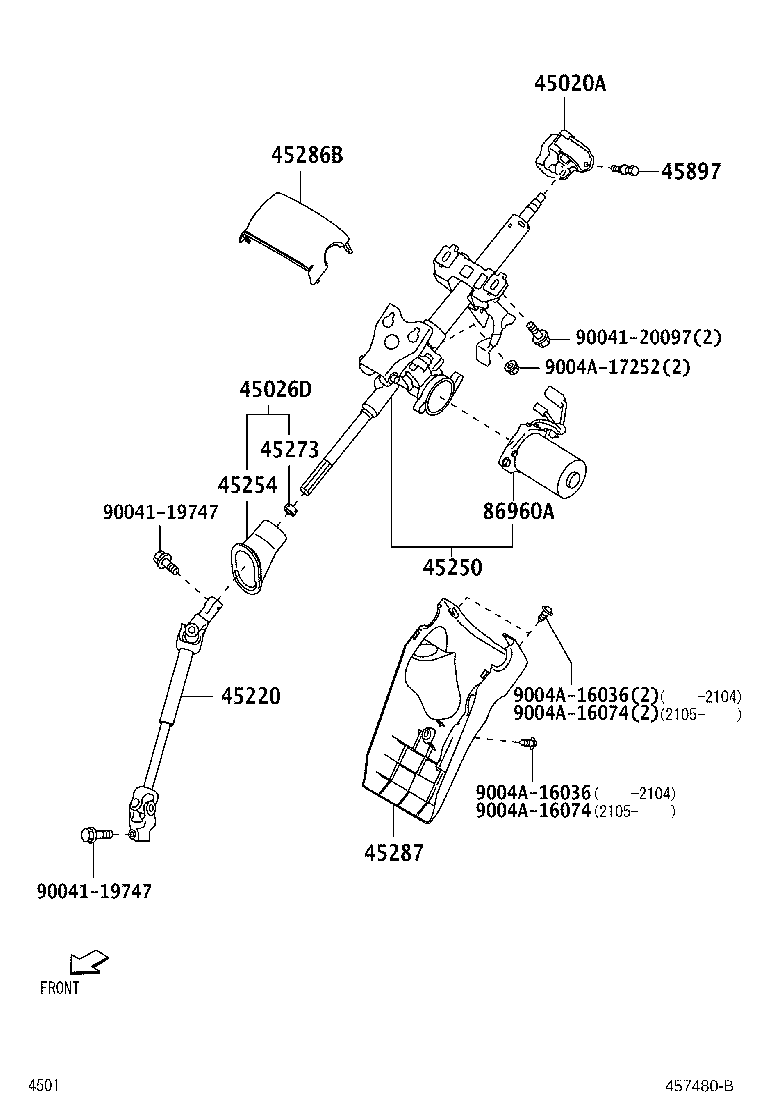

Click highlighted areas on diagram

PUSH START

diagram 45020A 45026D 45220 45250 45254 45273 45286B 45287 45897 86960A 9004119747 9004119747 9004120097 9004A16036 9004A16036 9004A16074 9004A16074 9004A17252
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-BZ370

F65#..SPO..IDN

 1
45020-BZ370

F65#..SPO..IDN

 1
45026D - COVER SUB-ASSY, STEERING COLUMN HOLE
45025-BZ010

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
45025-BZ010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-BZ170

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
45220-BZ170

F653..IDN,SA;F654..4AT..STD..TH;F654..MID..(IDN,SA,TH);F654..(SPO,STD)..(IDN,MA,SA)

 1
45220-BZ171

F65#..RHD

 1
45250 - COLUMN ASSY, STEERING
45250-BZ260

F653..IDN;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
45250-BZ470

F65#..SPO..IDN

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-BZ120

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
45254-BZ120

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-B0010

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
45273-B0010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
45286B - COVER, STEERING COLUMN, UPR
45286-BZ160C0

F653..SPO;F654..4AT..STD..TH;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA)

BLACK,TRIM1#

 1
45286-BZ160C0

F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-BZ200C0

F653..SPO;F654..MID..(MA,MXC,SA,TH);F653..(LO,STD)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

BLACK,TRIM1#

 1
45287-BZ400C0

F65#..SPO..IDN

BLACK,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-B2010

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 2
45897-B2010

F65#..SPO..IDN

 1
45897-B2010

F65#..SPO..IDN

 1
86960A - MOTOR SET, POWER STEERING
80960-B9090

F653..IDN,SA;F654..4AT..STD..TH;F654..MID..(IDN,SA,TH);F654..(SPO,STD)..(IDN,MA,SA)

 1
80960-B9090

F653,654..RHD

 1
Common parts
90041-19747
90041-20097
9004A-16036
9004A-16074
9004A-17252
