F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1507- )5F..IDN ; (1508- )5F..GCC,GEN,MA,MXC,PHL,SA,TH

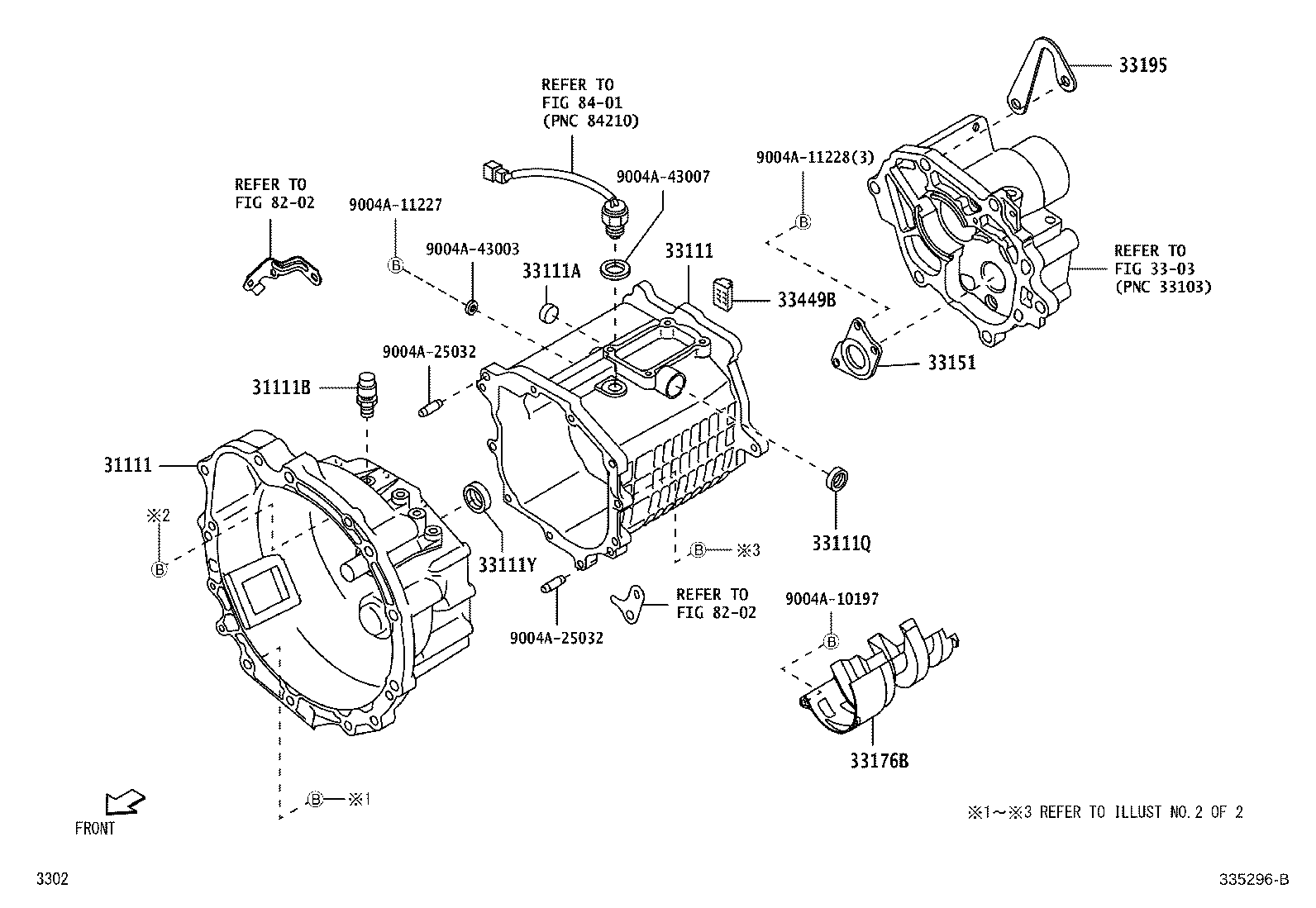

Click highlighted areas on diagram

diagram 9004105540 9004A11215 9004A11231 9004A11232 9004A11289
Part # Description Qty Price
Common parts
90041-05540
9004A-11215
9004A-11231
9004A-11232
9004A-11289

(1507- )F654..5F..IDN ; (1508- )F654..5F..GCC,GEN,MXC,PHL,SA,TH

Click highlighted areas on diagram

diagram 31111 31111B 3303 33111 33111A 33111Q 33111Y 33151 33176B 33195 33449B 8202 8202 8401 9004A10197 9004A11227 9004A11228 9004A25032 9004A25032 9004A43003 9004A43007
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-BZ050

F654..5F

 1
31111-BZ050

F654..5F..(IDN,TH)

 1
31111B - PLUG(FOR CLUTCH HOUSING)
9004A-93003

F653,654..5F..(IDN,MA,TH)

 1
9004A-93003

F65#..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33111-BZ090

F653,654..5F..(IDN,MA,TH)

 1
33111-BZ090

F65#..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
9004A-33016

F653,654..5F..(IDN,MA,TH)

 1
9004A-33016

F65#..5F

 1
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
9004A-31015

F653,654..5F..(IDN,MA,TH)

 1
9004A-31015

F65#..5F

 1
33111Y - SEAL, OIL(FOR TRANSMISSION CASE)
9004A-31013

F653,654..5F..(IDN,MA,TH)

 1
9004A-31013

F65#..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-BZ010

F65#..5F

 1
33151-BZ010

F653,654..5F..(IDN,MA,TH)

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-BZ010

F65#..5F

 1
33176-BZ010

F653,654..5F..(IDN,MA,TH)

 1
33195 - HANGER, TRANSMISSION CASE, NO.1
33195-BZ010

F65#..5F

 1
33195-BZ010

F653,654..5F..(IDN,MA,TH)

 1
33449B - MAGNET, TRANSMISSION
33449-BZ010

F653,654..5F

 1
33449-BZ060

F65#..5F..(IDN,MA,TH)

 1
33449-BZ060

F65#..5F

 1
Common parts
9004A-10197
9004A-11227
9004A-11228
9004A-25032
9004A-43003
9004A-43007
Linked diagrams
3303
8202
8401
