F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )F653,654..5F

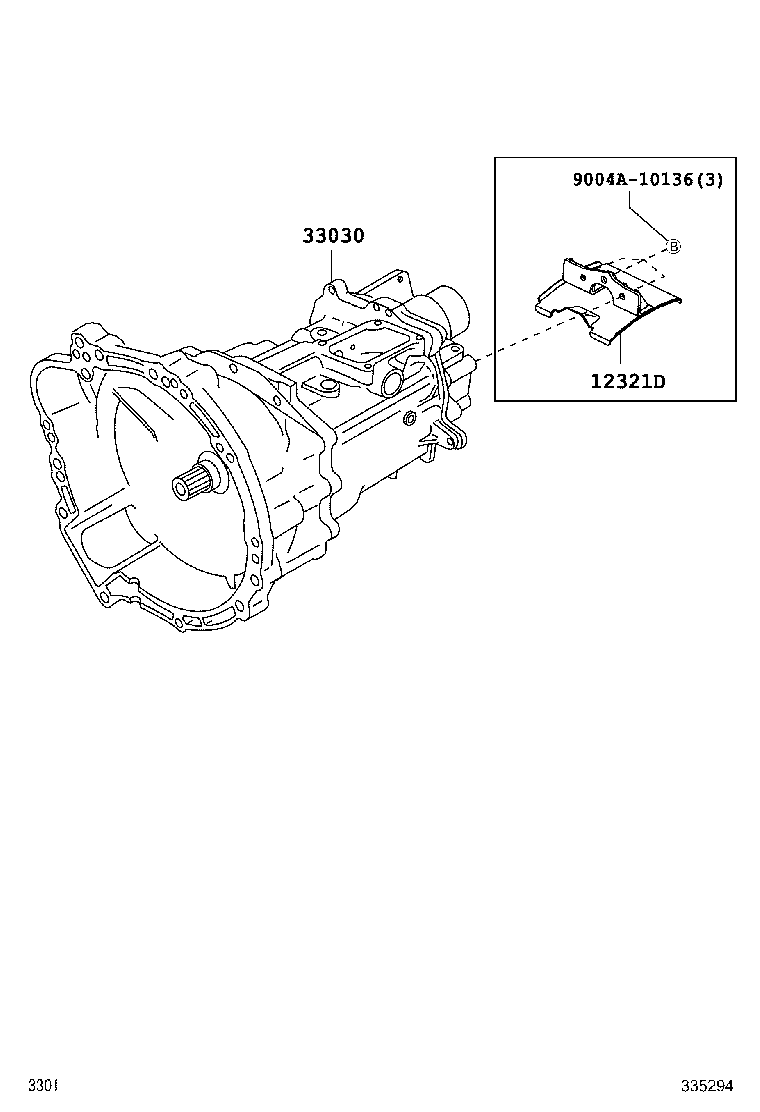

Click highlighted areas on diagram

diagram 12321D 33030 9004A10136
Part # Description Qty Price
12321D - BRACKET, ENGINE MOUNTING, REAR
12321-BZ250

1NRVE,2NRVE..F65#..5F

 1
12321-BZ250

1NRVE,2NRVE..F653,654..5F..(IDN,MA,TH)

 1
33030 - TRANSMISSION UNIT ASSY, MANUAL
33030-BZ340

F654..5F..(IDN,TH)

 1
33030-BZ340

F654..5F

 1
Common parts
9004A-10136
