Toyota Avanza F654 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
GR
AVANZA
F654RM-GMSFJ (2015)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999

Engine 2NRVE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

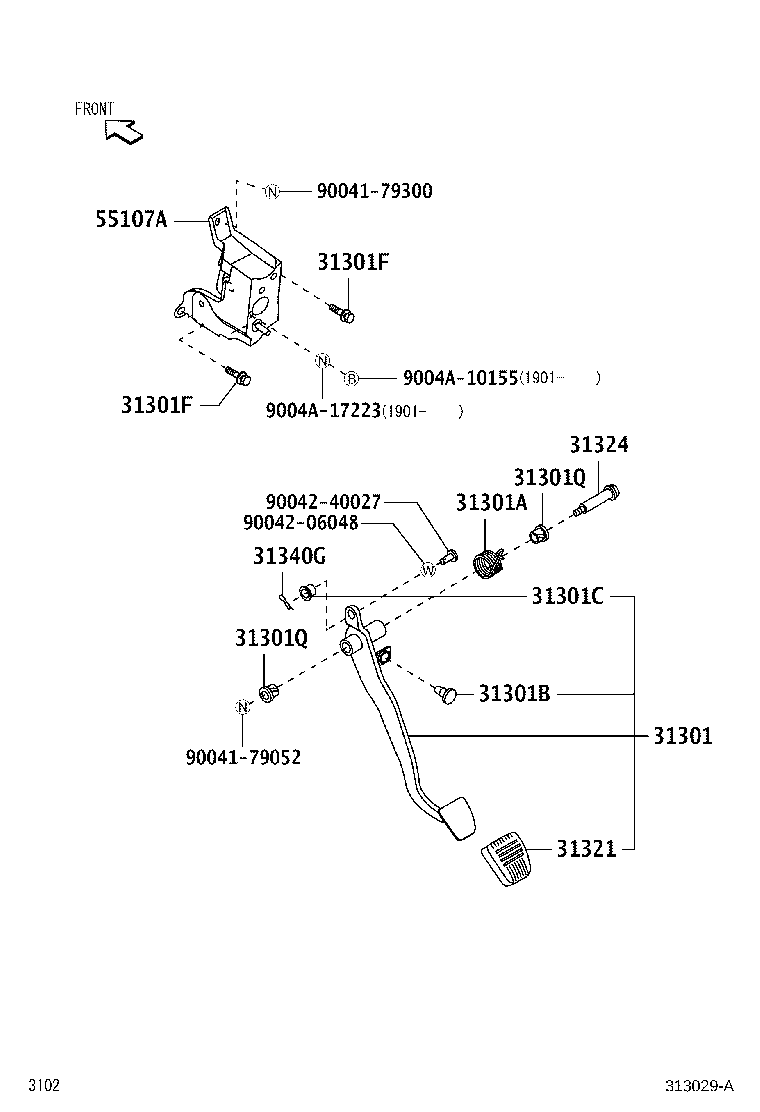

ILLUST NO. 1 OF 2(1507- )F654..5F..IDN ; (1508- )F654..5F..SA,TH

Click highlighted areas on diagram

RHD HYDRAULIC TYPE

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31310-BZ350	F654..5F..SPO	01/2019 - 12/2999	1
31310-BZ240	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
31301A - SPRING(FOR CLUTCH PEDAL)
31394-BZ080	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
31394-BZ080	F654..RHD..5F	01/2019 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
9004A-54003	F65#..5F	01/2019 - 12/2999	1
9004A-54003	F653,654..5F..(IDN,MA,TH)	07/2015 - 01/2019	1
31301C - BUSH(FOR CLUTCH PEDAL)
90043-86123	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
90043-86123	F654..5F	01/2019 - 12/2999	1
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
9004A-11219	F65#..5F..(IDN,SA)	01/2019 - 01/2021	2
9004A-11381	F65#..RHD..5F	02/2021 - 12/2999	2
9004A-11219	F653,654..5F..(IDN,MA,TH)	07/2015 - 01/2019	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
9004A-11219	F65#..5F..(IDN,SA)	01/2019 - 01/2021	2
9004A-11381	F65#..RHD..5F	02/2021 - 12/2999	2
9004A-11219	F653,654..5F..(IDN,MA,TH)	07/2015 - 01/2019	2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
9004A-38021	F653,654..5F..(IDN,MA,TH)	07/2015 - 01/2019	2
9004A-38021	F65#..5F..(GCC,GEN,IDN,MXC,PHL,SA)	01/2019 - 05/2021	2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
9004A-38021	F653,654..5F..(IDN,MA,TH)	07/2015 - 01/2019	2
9004A-38021	F65#..5F..(GCC,GEN,IDN,MXC,PHL,SA)	01/2019 - 05/2021	2
31321 - PAD, CLUTCH PEDAL
31321-BZ010	F653,654..5F..(IDN,MA,TH)	07/2015 - 01/2019	1
31321-BZ010	F65#..5F	01/2019 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
47124-BZ020	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
47124-BZ020	F654..5F;F653..LHD..5F	01/2019 - 12/2999	1
31340G - CLIP(FOR CLUTCH RELEASE CABLE)
90044-68076	F654..5F	01/2019 - 12/2999	1
90044-68076	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-BZ320	F654..5F..SPO	01/2019 - 12/2999	1
55107-BZ200	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
Common parts
90041-79052
90041-79300
90042-06048
90042-40027
9004A-10155
9004A-17223

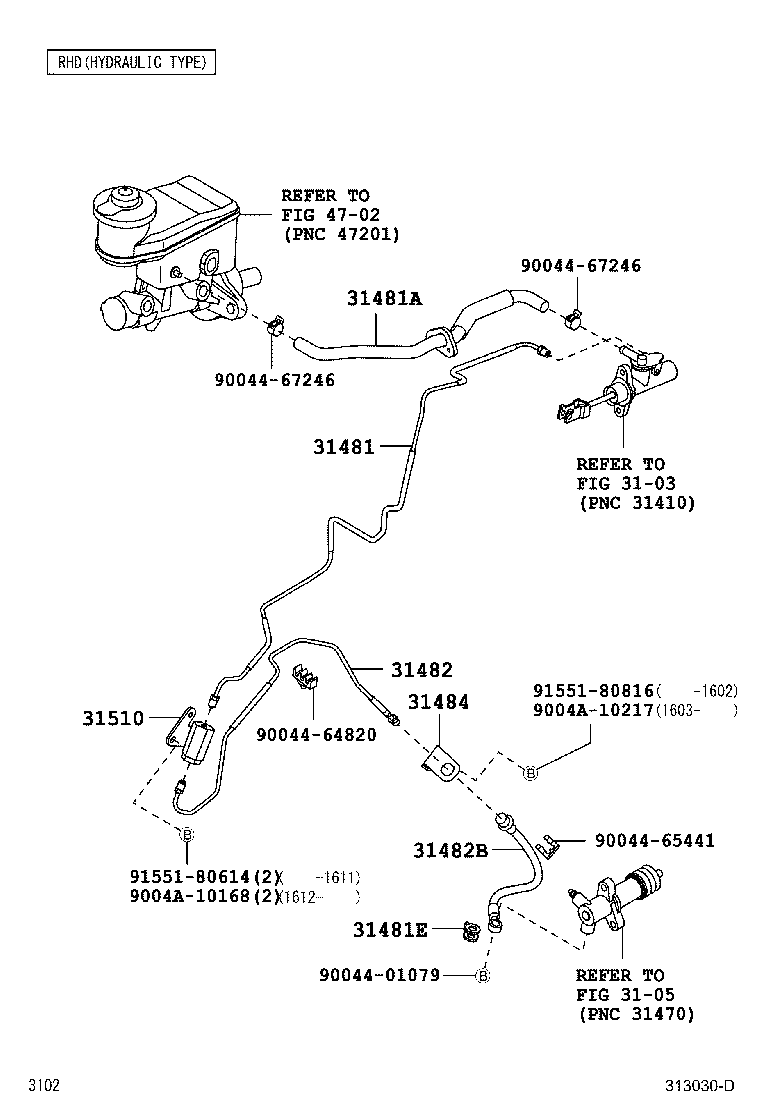

ILLUST NO. 2 OF 2(1507- )F654..5F..IDN ; (1508- )F654..5F..SA,TH

Click highlighted areas on diagram

RHD HYDRAULIC TYPE

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31482-BZ150	F654..RHD..5F	01/2019 - 12/2999	1
31482-BZ150	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
31481A - HOSE, CLUTCH, NO.1
31434-BZ100	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
31434-BZ100	F654..RHD..5F	01/2019 - 12/2999	1
31481E - GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE
47389-97201	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
47389-97201	F654..5F	01/2019 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-BZ170	F654..5F	01/2019 - 12/2999	1
31482-BZ170	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
31482B - HOSE, CLUTCH, NO.2
9004A-94079	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
9004A-94079	F654..5F	01/2019 - 12/2999	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-BZ010	F654..5F..(IDN,TH)	07/2015 - 01/2019	1
31484-BZ010	F654..5F	01/2019 - 12/2999	1
31510 - ORIFICE ASSY, CLUTCH
31510-B0021	F654..5F..(IDN,TH)	10/2016 - 01/2019	1
31510-B0021	F654..5F	01/2019 - 12/2999	1
31510-B0020	F654..5F	07/2015 - 09/2016	1
Common parts
90044-01079
90044-64820
90044-65441
90044-67246
9004A-10168
9004A-10217
91551-80614
91551-80816
