F654RM-GMSFJ (2015)
Toyota Avanza
(1507- )1NRVE,2NRVE

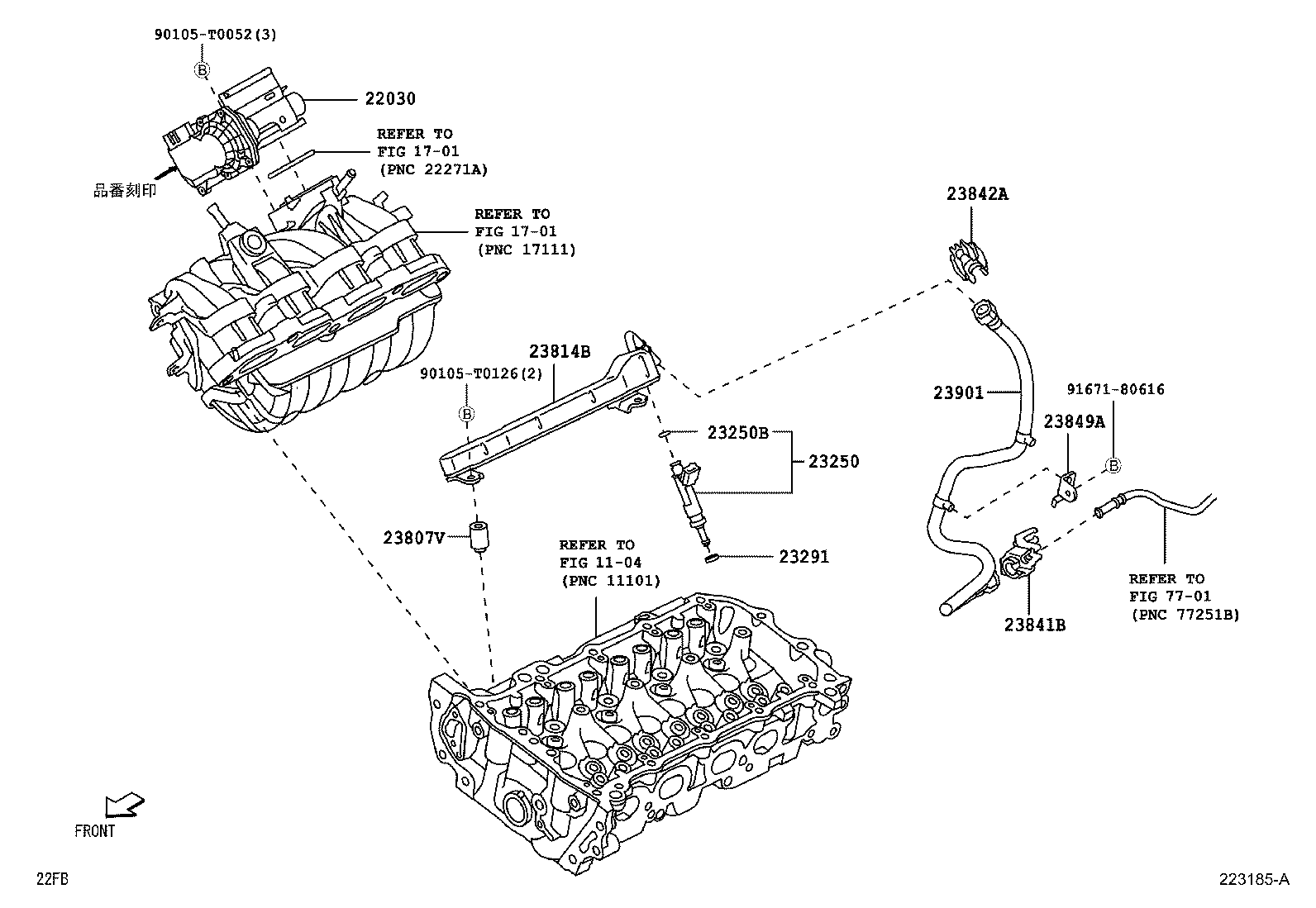

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-0Y020 |
1NRVE,2NRVE..F653,654..IDN,MA W/PART NUMBER MARK |
1 | ||
| 22030-BZ040 |
2NRVE..F654..IDN;1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA W/PART NUMBER MARK |
1 | ||
| 22030-BZ040 |
1NRVE..F653..IDN,PHL;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(IDN,PHL,TH);2NRVE..F654..(SPO,STD)..(IDN,MA,PHL) W/PART NUMBER MARK |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-BZ050 |
1NRVE,2NRVE..F65# |
4 | ||
| 23209-BZ050 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 90301-07037 |
1NRVE,2NRVE..F65# |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-0Y020 |
1NRVE,2NRVE..F65# |
4 | ||
| 23291-0Y020 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-47040 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 23891-47040 |
1NRVE,2NRVE..F65# |
2 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-BZ070 |
1NRVE,2NRVE..F65# |
1 | ||
| 23814-BZ070 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-BZ020 |
1NRVE,2NRVE..F65# |
1 | ||
| 23841-BZ020 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 23841-B1010 |
1NRVE,2NRVE..F653,654 |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-B0010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 23842-B0010 |
1NRVE,2NRVE..F65# |
1 | ||
| 23849A - SUPPORT, FUEL PIPE | ||||
| 23849-BZ030 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 23849-BZ030 |
1NRVE,2NRVE..F65# |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-BZ030 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 23901-BZ030 |
1NRVE,2NRVE..F65# |
1 | ||
| Common parts | ||||
| 90105-T0052 | ||||
| 90105-T0126 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 7701 | ||||
