F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )1NRVE,2NRVE

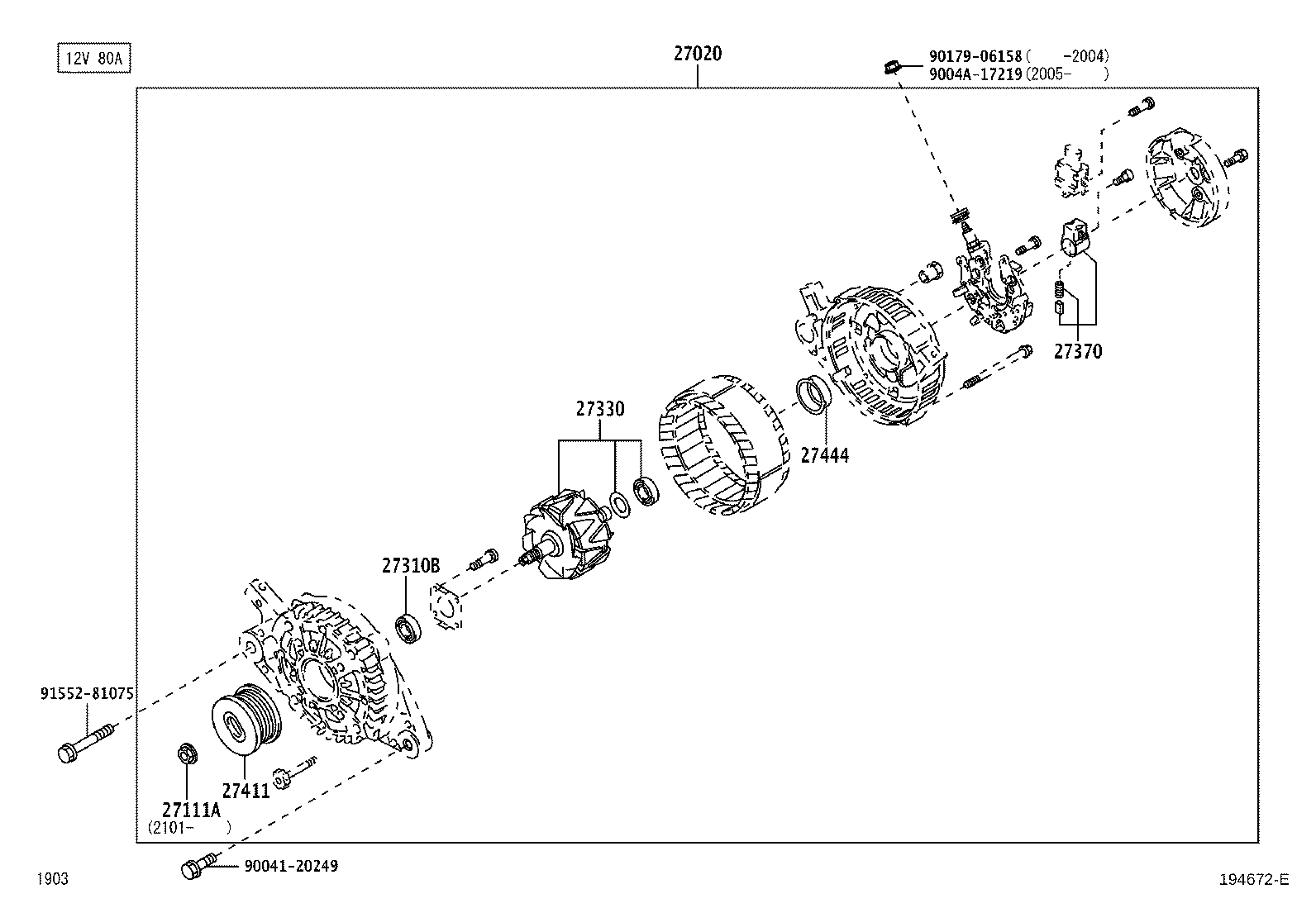

Click highlighted areas on diagram

diagram 27020 27111A 27310B 27330 27370 27411 27444 9004120249 9004A17219 9017906158 9155281075
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-BZ310

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

12V 80A

 1
27060-BZ310

1NRVE,2NRVE..F65#

12V 80A

 1
27111A - NUT, ALTERNATOR
90099-05171

1NRVE,2NRVE..F65#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
9004B-37012

1NRVE,2NRVE..F653,654

 1
9004B-37016

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
9004C-37008

1NRVE,2NRVE..F65#

 1
9004B-37016

2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-BZ060

1NRVE,2NRVE..F65#

 1
27330-BZ060

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-B1020

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
27370-B1020

1NRVE,2NRVE..F65#

 1
27411 - PULLEY, ALTERNATOR
27411-BZ100

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
27411-BZ100

1NRVE,2NRVE..F65#

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-BZ010

2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
27444-BZ010

1NRVE,2NRVE..F653,654

 1
Common parts
90041-20249
9004A-17219
90179-06158
91552-81075
