F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )1NRVE,2NRVE

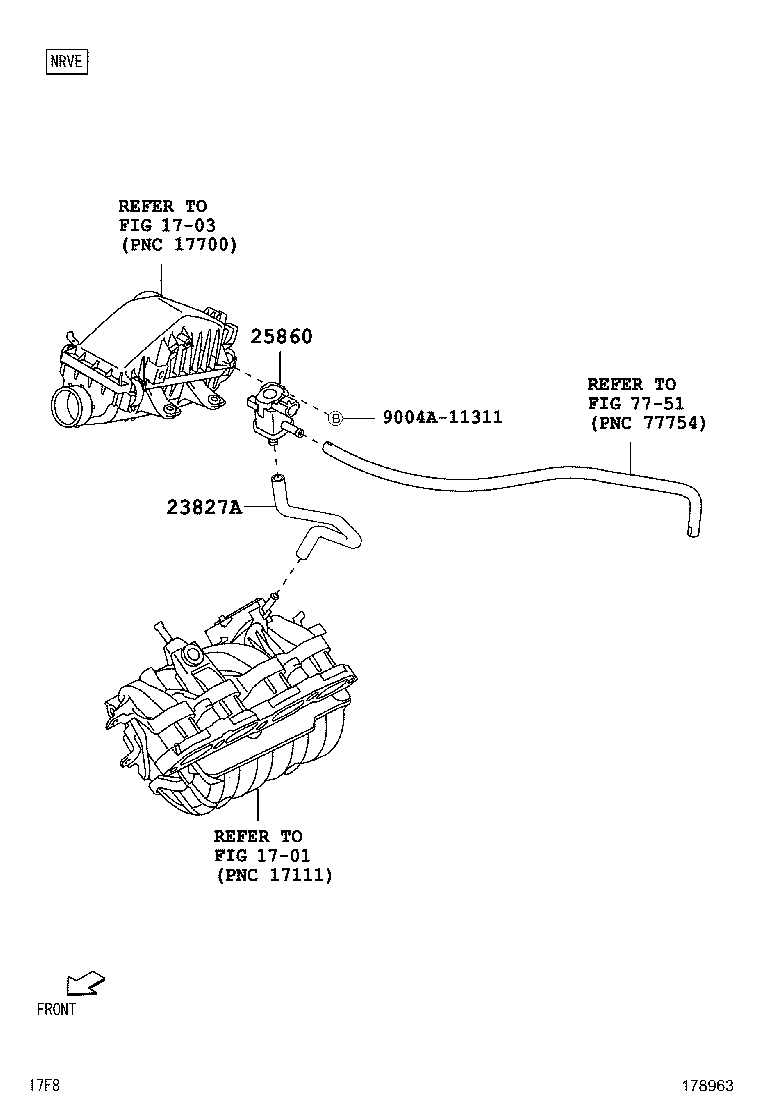

Click highlighted areas on diagram

diagram 1701 1703 23827A 25860 7751 9004A11311
Part # Description Qty Price
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-BZ020

1NRVE,2NRVE..F65#

 1
23827-BZ020

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
9004A-91069

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
9004A-91069

1NRVE,2NRVE..F65#

 1
Common parts
9004A-11311
Linked diagrams
1701
1703
7751
