F654RM-GMSFJ (2015)
Toyota Avanza
(1507- )1NRVE,2NRVE

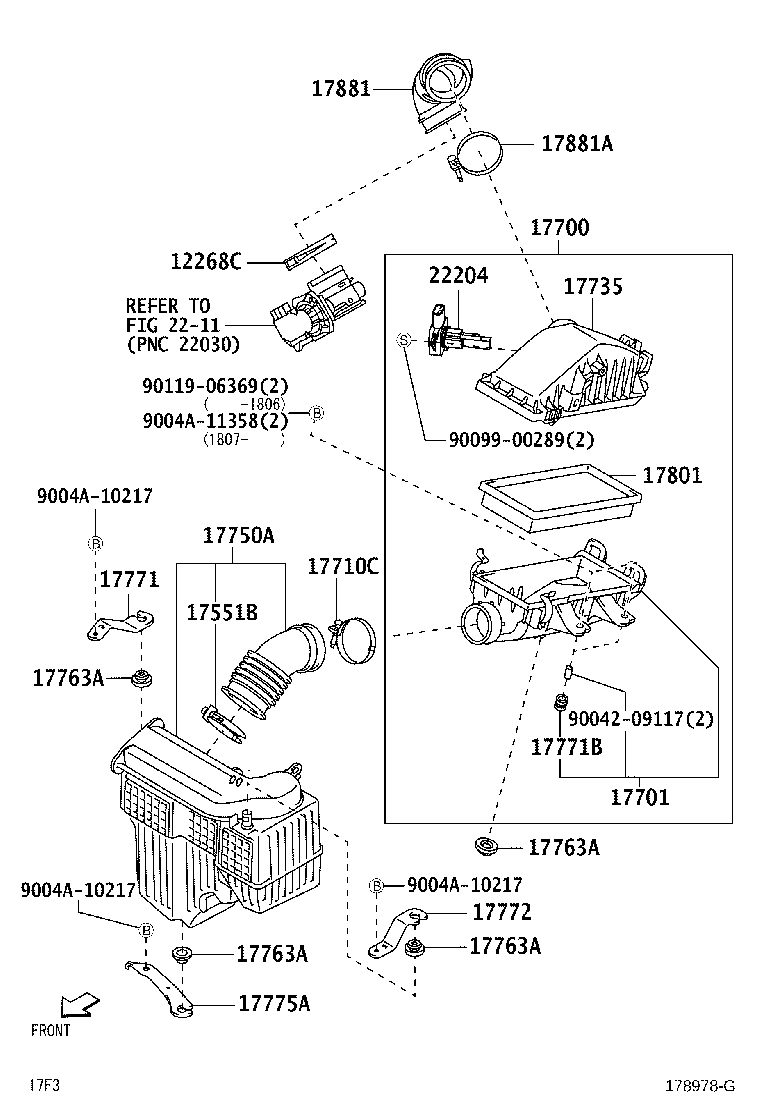

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12268C - CLIP, HOSE | ||||
| 90466-62002 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 90466-62002 |
1NRVE,2NRVE..F65# |
1 | ||
| 17551B - CLAMP(FOR AIR CLEANER INLET, NO.1) | ||||
| 9004A-46128 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 9004A-46128 |
1NRVE,2NRVE..F65# |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-BZ170 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 17700-BZ170 |
1NRVE,2NRVE..F65# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-BZ160 |
1NRVE,2NRVE..F653,654 |
1 | ||
| 17701-BZ160 |
2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
1 | ||
| 17710C - CLAMP(FOR AIR CLEANER INLET DUCT) | ||||
| 9004A-46128 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 9004A-46128 |
1NRVE,2NRVE..F65# |
1 | ||
| 17735 - CAP, AIR CLEANER | ||||
| 17735-BZ030 |
1NRVE,2NRVE..F653,654 |
1 | ||
| 17735-BZ030 |
2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-BZ010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 17750-BZ010 |
1NRVE,2NRVE..F65# |
1 | ||
| 17763A - GROMMET, AIR CLEANER INLET DUCT | ||||
| 9004A-48060 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 9004A-48060 |
1NRVE,2NRVE..F65# |
4 | ||
| 17763A - GROMMET, AIR CLEANER INLET DUCT | ||||
| 9004A-48060 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 9004A-48060 |
1NRVE,2NRVE..F65# |
4 | ||
| 17763A - GROMMET, AIR CLEANER INLET DUCT | ||||
| 9004A-48060 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 9004A-48060 |
1NRVE,2NRVE..F65# |
4 | ||
| 17763A - GROMMET, AIR CLEANER INLET DUCT | ||||
| 9004A-48060 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 9004A-48060 |
1NRVE,2NRVE..F65# |
4 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-BZ080 |
1NRVE,2NRVE..F65# |
1 | ||
| 17771-BZ080 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 17771B - GROMMET(FOR AIR CLEANER BRACKET) | ||||
| 90044-80392 |
1NRVE,2NRVE..F65# |
2 | ||
| 90044-80392 |
1NRVE,2NRVE..F653,654 |
2 | ||
| 17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17772-BZ030 |
1NRVE,2NRVE..F65# |
1 | ||
| 17772-BZ030 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 17775A - BRACKET, AIR CLEANER PIPE, NO.3 | ||||
| 17775-BZ020 |
1NRVE,2NRVE..F65# |
1 | ||
| 17775-BZ020 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-BZ150 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) W/PART NUMBER,W/ PART NUMBER |
1 | ||
| 17801-BZ150 |
1NRVE,2NRVE..F65# |
1 | ||
| 17801-BZ120 |
1NRVE,2NRVE..F653,654 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-BZ170 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 17881-BZ170 |
1NRVE,2NRVE..F65# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 9004A-46128 |
1NRVE,2NRVE..F65# |
1 | ||
| 9004A-46128 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-BZ010 |
1NRVE,2NRVE..F65# |
1 | ||
| 22204-BZ010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| Common parts | ||||
| 90042-09117 | ||||
| 9004A-10217 | ||||
| 9004A-11358 | ||||
| 90099-00289 | ||||
| 90119-06369 | ||||
| Linked diagrams | ||||
| 2211 | ||||
