F654RM-GMSFJ (2015)
Toyota Avanza
(1507- )1NRVE,2NRVE..IDN,MA,PHL,TH

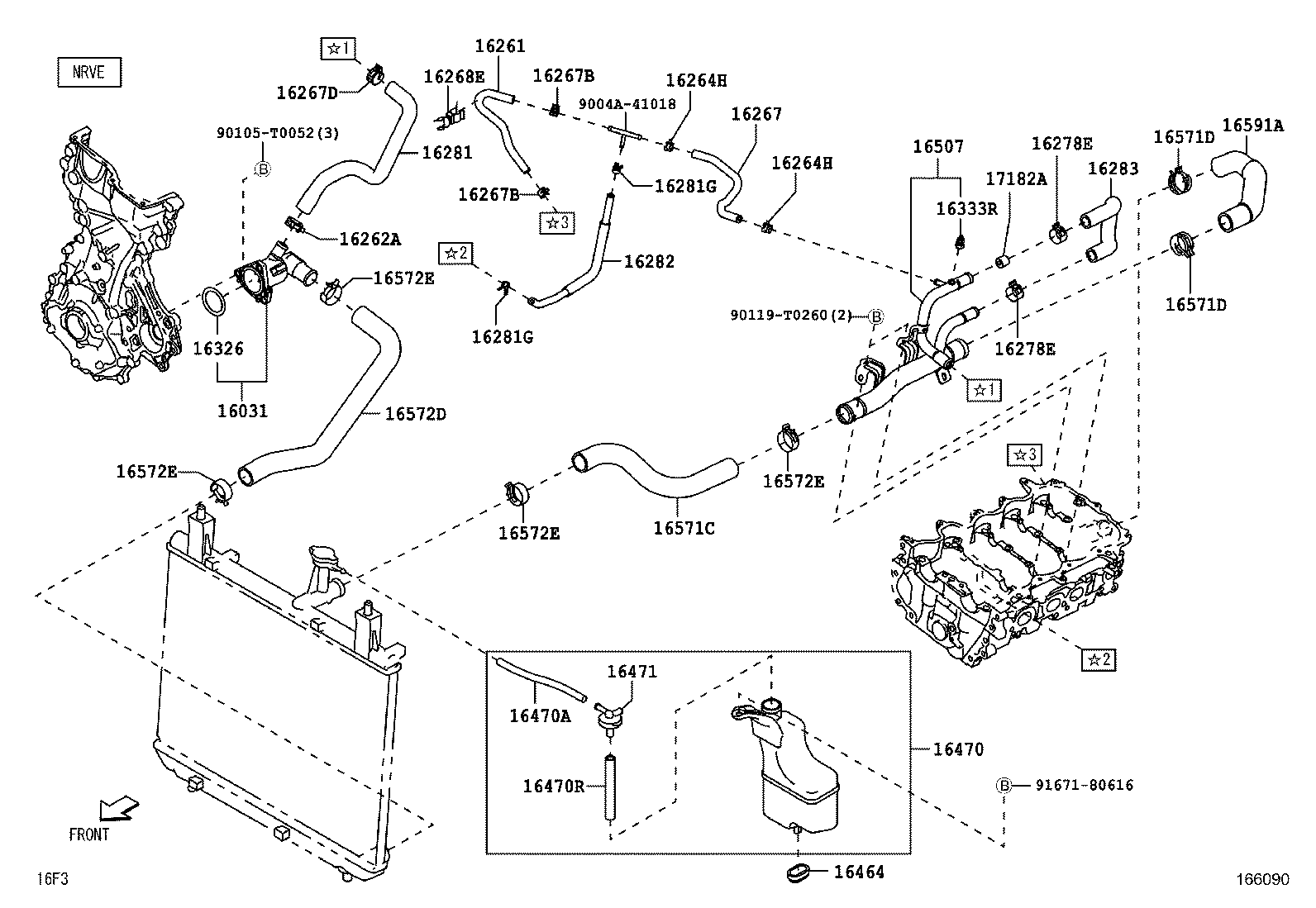

WATER HOSE(W/O HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-0Y010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16031-0Y010 |
1NRVE,2NRVE..F65# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-BZ310 |
1NRVE,2NRVE..F653,654..IDN,MA,PHL,TH |
1 | ||
| 16261-BZ310 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90466-T0050 |
1NRVE,2NRVE..F653,654 |
1 | ||
| 90044-66054 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 90044-66054 |
1NRVE,2NRVE..F65# |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-T0015 |
1NRVE,2NRVE..F65# |
2 | ||
| 90466-T0015 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-T0015 |
1NRVE,2NRVE..F65# |
2 | ||
| 90466-T0015 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-BZ050 |
1NRVE,2NRVE..F65# |
1 | ||
| 16267-BZ050 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
1NRVE,2NRVE..F653,654..IDN,MA,PHL,TH |
2 | ||
| 90466-T0015 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
1NRVE,2NRVE..F653,654..IDN,MA,PHL,TH |
2 | ||
| 90466-T0015 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 9004A-46348 |
1NRVE,2NRVE..F65# |
1 | ||
| 9004A-46348 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 9004A-46343 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 9004A-46343 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 9004A-46351 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46351 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
2 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 9004A-46351 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-46351 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
2 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-BZ030 |
1NRVE,2NRVE..F65# |
1 | ||
| 16281-BZ030 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 9004A-46345 |
1NRVE,2NRVE..F65# |
2 | ||
| 9004A-46345 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 9004A-46345 |
1NRVE,2NRVE..F65# |
2 | ||
| 9004A-46345 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-BZ010 |
1NRVE,2NRVE..F65# |
1 | ||
| 16282-BZ010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-BZ010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16283-BZ010 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-0Y010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16326-0Y010 |
1NRVE,2NRVE..F65# |
1 | ||
| 16333R - PLUG(FOR WATER OUTLET HOUSING) | ||||
| 9004A-93005 |
1NRVE,2NRVE..F65# |
1 | ||
| 47547-B2030 |
1NRVE,2NRVE..F65# |
1 | ||
| 9004A-93005 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 47546-87202 |
1NRVE,2NRVE..F653,654 |
1 | ||
| 16464 - BUSH, TANK LOWER | ||||
| 16464-BZ010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16464-BZ010 |
1NRVE,2NRVE..F65# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-BZ210 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16470-BZ210 |
1NRVE,2NRVE..F65# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-BZ090 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16472-BZ090 |
1NRVE,2NRVE..F65# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16477-BZ010 |
1NRVE,2NRVE..F65# |
1 | ||
| 16477-BZ010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-BZ100 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16471-BZ100 |
1NRVE,2NRVE..F65# |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-BZ030 |
1NRVE,2NRVE..F653,654 |
1 | ||
| 16507-BZ031 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16507-BZ031 |
1NRVE,2NRVE..F65# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-BZ280 |
1NRVE,2NRVE..F65#..GEN,IDN,MA,MXC,PHL,SA,TH |
1 | ||
| 16571-BZ280 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 9004A-46346 |
1NRVE,2NRVE..F65# |
2 | ||
| 9004A-46346 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 9004A-46346 |
1NRVE,2NRVE..F65# |
2 | ||
| 9004A-46346 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-BZ220 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16572-BZ220 |
1NRVE,2NRVE..F65# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-67482 |
1NRVE,2NRVE..F653,654 |
4 | ||
| 9004A-46395 |
1NRVE,2NRVE..F65# |
4 | ||
| 9004A-46395 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-67482 |
1NRVE,2NRVE..F653,654 |
4 | ||
| 9004A-46395 |
1NRVE,2NRVE..F65# |
4 | ||
| 9004A-46395 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-67482 |
1NRVE,2NRVE..F653,654 |
4 | ||
| 9004A-46395 |
1NRVE,2NRVE..F65# |
4 | ||
| 9004A-46395 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-67482 |
1NRVE,2NRVE..F653,654 |
4 | ||
| 9004A-46395 |
1NRVE,2NRVE..F65# |
4 | ||
| 9004A-46395 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 16591A - HOSE, RADIATOR(FOR RADIATOR PIPE) | ||||
| 16571-BZ260 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16571-BZ260 |
1NRVE,2NRVE..F65# |
1 | ||
| 17182A - ORIFICE, WATER | ||||
| 17182-BZ020 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 17182-BZ020 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 9004A-41018 | ||||
| 90105-T0052 | ||||
| 90119-T0260 | ||||
| 91671-80616 | ||||
(1507- )1NRVE,2NRVE..GCC,GEN,MXC,SA ; (1801-)1NRVE..STD..PHL ; (1801- )2N

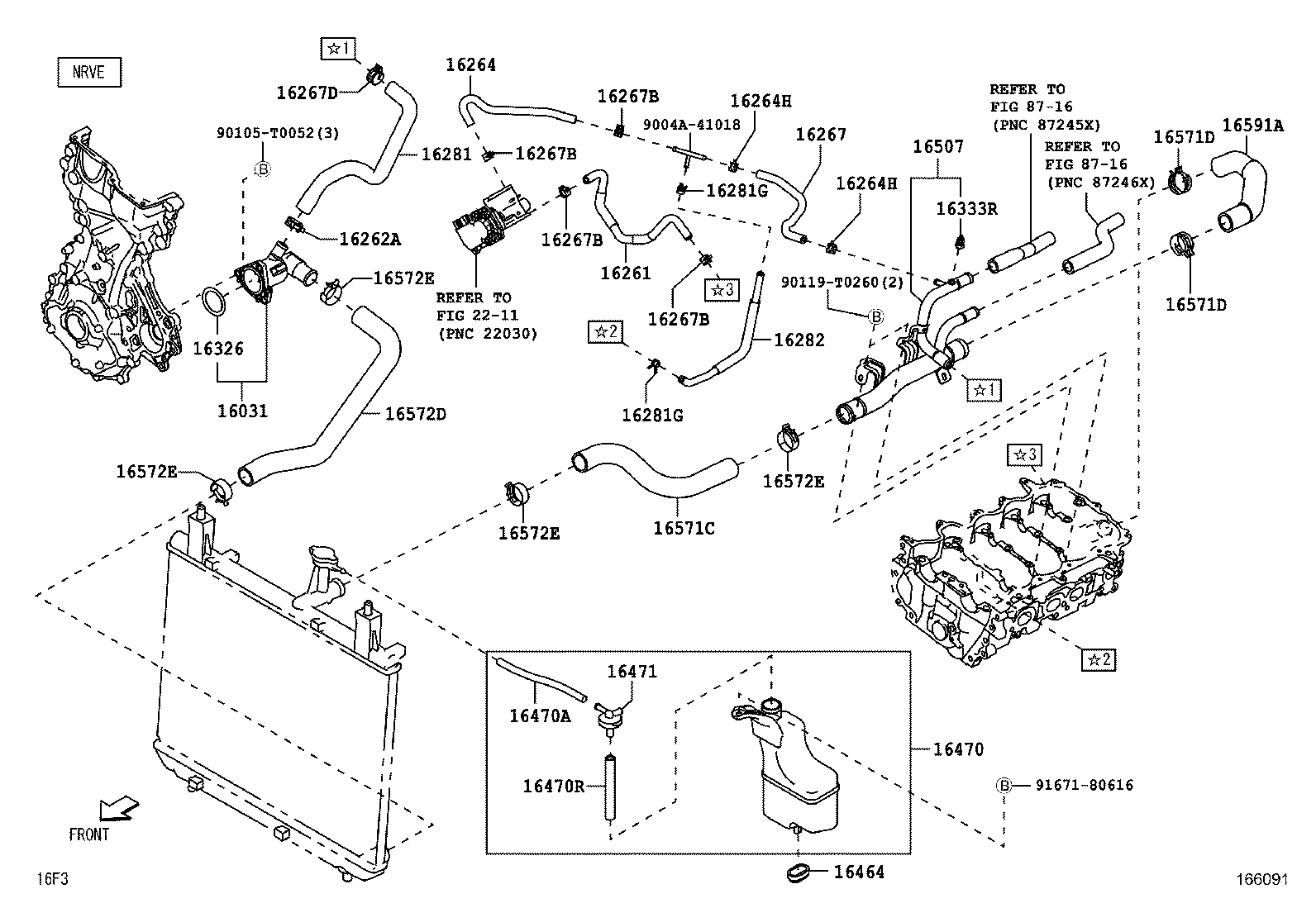

WATER HOSE(W/HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-0Y010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16031-0Y010 |
1NRVE,2NRVE..F65# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-BZ310 |
1NRVE,2NRVE..F653,654..IDN,MA,PHL,TH |
1 | ||
| 16261-BZ310 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90466-T0050 |
1NRVE,2NRVE..F653,654 |
1 | ||
| 90044-66054 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 90044-66054 |
1NRVE,2NRVE..F65# |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-T0015 |
1NRVE,2NRVE..F65# |
2 | ||
| 90466-T0015 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-T0015 |
1NRVE,2NRVE..F65# |
2 | ||
| 90466-T0015 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-BZ050 |
1NRVE,2NRVE..F65# |
1 | ||
| 16267-BZ050 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
1NRVE,2NRVE..F653,654..IDN,MA,PHL,TH |
2 | ||
| 90466-T0015 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
1NRVE,2NRVE..F653,654..IDN,MA,PHL,TH |
2 | ||
| 90466-T0015 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
1NRVE,2NRVE..F653,654..IDN,MA,PHL,TH |
2 | ||
| 90466-T0015 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
1NRVE,2NRVE..F653,654..IDN,MA,PHL,TH |
2 | ||
| 90466-T0015 |
1NRVE,2NRVE..F65#..IDN,MA,PHL,TH |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 9004A-46348 |
1NRVE,2NRVE..F65# |
1 | ||
| 9004A-46348 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-BZ030 |
1NRVE,2NRVE..F65# |
1 | ||
| 16281-BZ030 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 9004A-46345 |
1NRVE,2NRVE..F65# |
2 | ||
| 9004A-46345 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 9004A-46345 |
1NRVE,2NRVE..F65# |
2 | ||
| 9004A-46345 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-BZ010 |
1NRVE,2NRVE..F65# |
1 | ||
| 16282-BZ010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-0Y010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16326-0Y010 |
1NRVE,2NRVE..F65# |
1 | ||
| 16333R - PLUG(FOR WATER OUTLET HOUSING) | ||||
| 9004A-93005 |
1NRVE,2NRVE..F65# |
1 | ||
| 47547-B2030 |
1NRVE,2NRVE..F65# |
1 | ||
| 9004A-93005 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 47546-87202 |
1NRVE,2NRVE..F653,654 |
1 | ||
| 16464 - BUSH, TANK LOWER | ||||
| 16464-BZ010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16464-BZ010 |
1NRVE,2NRVE..F65# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-BZ210 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16470-BZ210 |
1NRVE,2NRVE..F65# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-BZ090 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16472-BZ090 |
1NRVE,2NRVE..F65# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16477-BZ010 |
1NRVE,2NRVE..F65# |
1 | ||
| 16477-BZ010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-BZ100 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16471-BZ100 |
1NRVE,2NRVE..F65# |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-BZ030 |
1NRVE,2NRVE..F653,654 |
1 | ||
| 16507-BZ031 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16507-BZ031 |
1NRVE,2NRVE..F65# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-BZ280 |
1NRVE,2NRVE..F65#..GEN,IDN,MA,MXC,PHL,SA,TH |
1 | ||
| 16571-BZ280 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 9004A-46346 |
1NRVE,2NRVE..F65# |
2 | ||
| 9004A-46346 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 9004A-46346 |
1NRVE,2NRVE..F65# |
2 | ||
| 9004A-46346 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-BZ220 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16572-BZ220 |
1NRVE,2NRVE..F65# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-67482 |
1NRVE,2NRVE..F653,654 |
4 | ||
| 9004A-46395 |
1NRVE,2NRVE..F65# |
4 | ||
| 9004A-46395 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-67482 |
1NRVE,2NRVE..F653,654 |
4 | ||
| 9004A-46395 |
1NRVE,2NRVE..F65# |
4 | ||
| 9004A-46395 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-67482 |
1NRVE,2NRVE..F653,654 |
4 | ||
| 9004A-46395 |
1NRVE,2NRVE..F65# |
4 | ||
| 9004A-46395 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-67482 |
1NRVE,2NRVE..F653,654 |
4 | ||
| 9004A-46395 |
1NRVE,2NRVE..F65# |
4 | ||
| 9004A-46395 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
4 | ||
| 16591A - HOSE, RADIATOR(FOR RADIATOR PIPE) | ||||
| 16571-BZ260 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16571-BZ260 |
1NRVE,2NRVE..F65# |
1 | ||
| Common parts | ||||
| 9004A-41018 | ||||
| 90105-T0052 | ||||
| 90119-T0260 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8716 | ||||

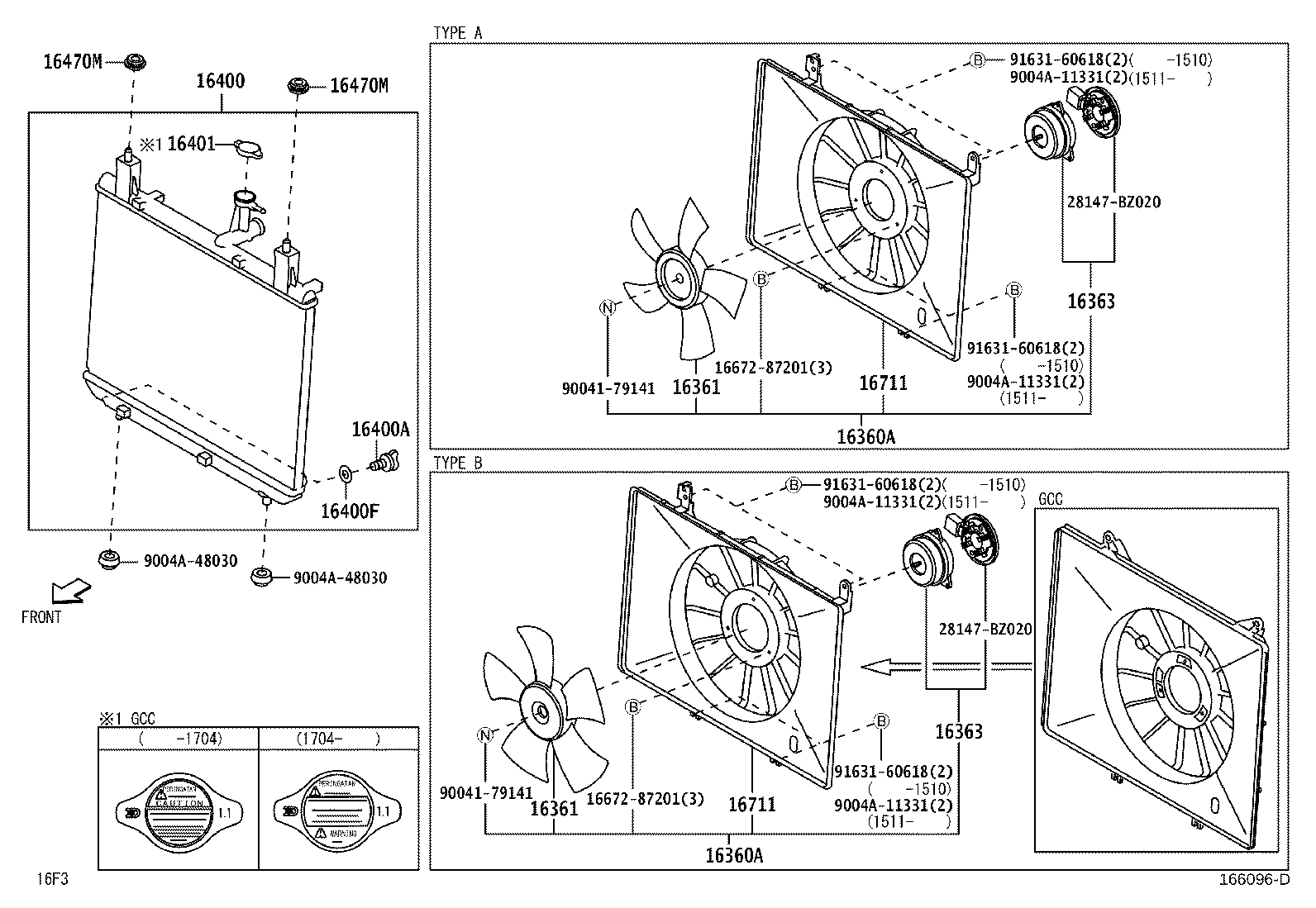

(1507- )1NRVE,2NRVE
RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-BZ210 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,MA,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL,TH) TYPE A |
1 | ||
| 16360-BZ210 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL) |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-BZ210 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,MA,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL,TH) TYPE A |
1 | ||
| 16360-BZ210 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL) |
1 | ||
| 16361 - FAN | ||||
| 16361-BZ090 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,MA,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL,TH) |
1 | ||
| 16361-BZ090 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL) |
1 | ||
| 16361 - FAN | ||||
| 16361-BZ090 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,MA,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL,TH) |
1 | ||
| 16361-BZ090 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-BZ100 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,MA,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL,TH) |
1 | ||
| 16363-BZ100 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-BZ100 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,MA,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL,TH) |
1 | ||
| 16363-BZ100 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-BZ670 |
1NRVE,2NRVE..F653,654..5F..(IDN,MA,TH) |
1 | ||
| 16400-BZ670 |
1NRVE,2NRVE..F65#..5F..(GEN,IDN,MXC,PHL,SA) |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-BZ050 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16417-BZ050 |
1NRVE,2NRVE..F65# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16442-97201 |
1NRVE,2NRVE..F65# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-BZ010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 16401-BZ010 |
1NRVE,2NRVE..F65#..GEN,IDN,MA,MXC,PHL,SA,TH |
1 | ||
| 16470M - GROMMET | ||||
| 9004A-48017 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-48017 |
1NRVE,2NRVE..F65# |
2 | ||
| 16470M - GROMMET | ||||
| 9004A-48017 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-48017 |
1NRVE,2NRVE..F65# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-BZ050 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,MA,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL,TH) |
1 | ||
| 16711-BZ050 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL) |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-BZ050 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,MA,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL,TH) |
1 | ||
| 16711-BZ050 |
1NRVE..F653..5F..GEN;2NRVE..F654..IDN,MA,SA;1NRVE..F653..IDN,PHL,SA;2NRVE..F654..5F..(GEN,MXC,PHL) |
1 | ||
| Common parts | ||||
| 16672-87201 | ||||
| 28147-BZ020 | ||||
| 90041-79141 | ||||
| 9004A-11331 | ||||
| 9004A-48030 | ||||
| 91631-60618 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
