F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )1NRVE,2NRVE

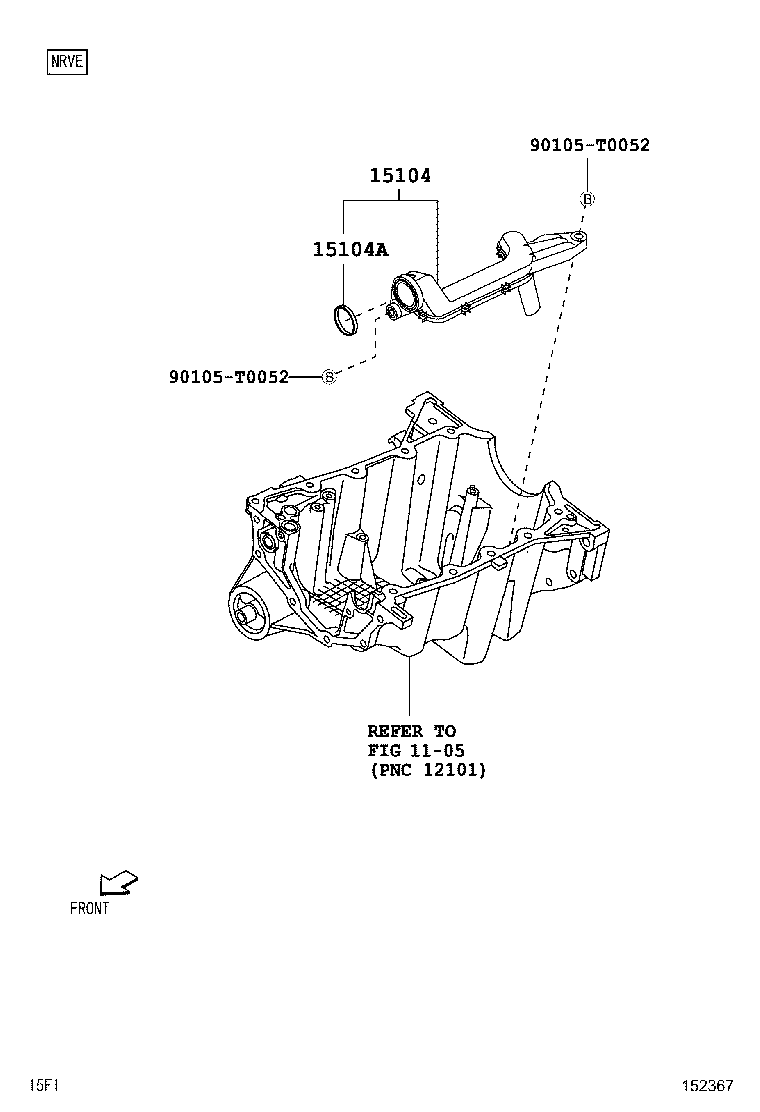

Click highlighted areas on diagram

diagram 1105 15104 15104A 90105T0052 90105T0052
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-BZ030

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
15104-BZ030

1NRVE,2NRVE..F65#

 1
15104A - RING, O(FOR OIL STRAINER)
9004A-30056

1NRVE,2NRVE..F65#

 1
9004A-30056

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
Common parts
90105-T0052
Linked diagrams
1105
