F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )1NRVE,2NRVE

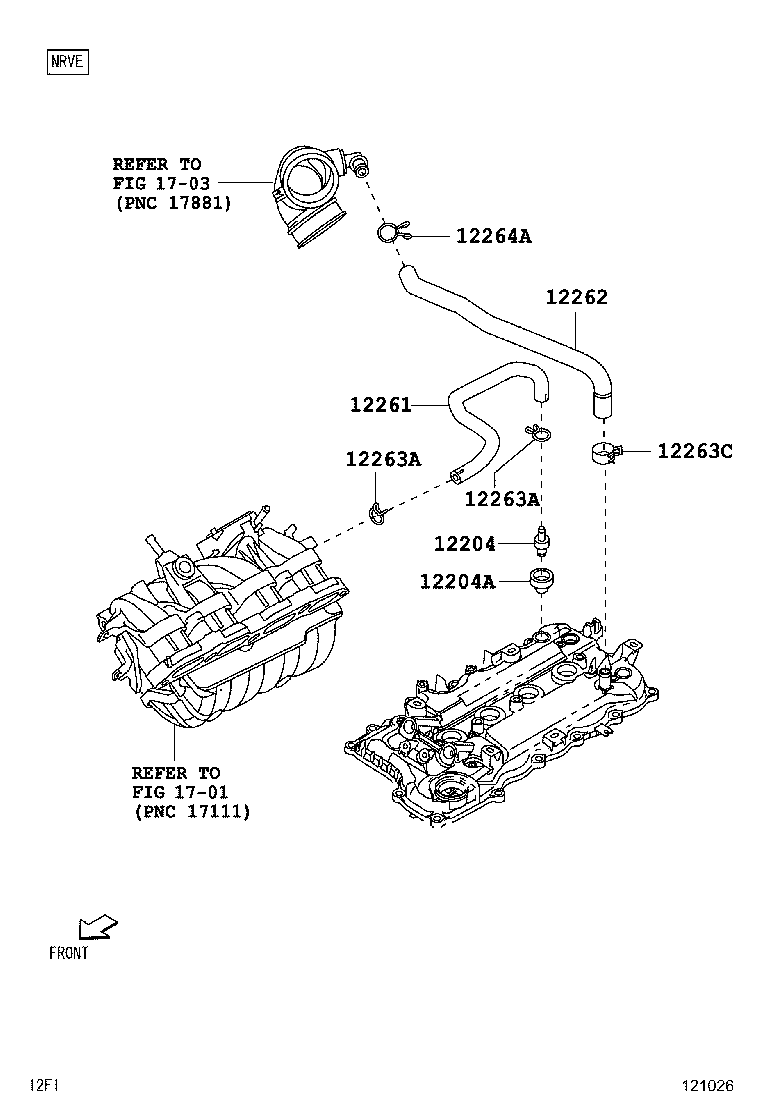

Click highlighted areas on diagram

diagram 12204 12204A 12261 12262 12263A 12263A 12263C 12264A 1701 1703
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-0Y020

1NRVE,2NRVE..F65#

 1
12204-0Y020

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
11249-47020

1NRVE,2NRVE..F653,654

 1
90480-T0013

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
90480-T0013

1NRVE,2NRVE..F65#

 1
12261 - HOSE, VENTILATION
12261-BZ160

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
12261-BZ160

1NRVE,2NRVE..F65#..IDN,MA,PHL,TH

 1
12262 - HOSE, VENTILATION, NO.2
12262-BZ080

1NRVE,2NRVE..F65#

 1
12262-BZ080

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
12263A - CLIP(FOR VENTILATION HOSE)
90466-T0061

1NRVE,2NRVE..F65#

 2
90466-T0061

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 2
12263A - CLIP(FOR VENTILATION HOSE)
90466-T0061

1NRVE,2NRVE..F65#

 2
90466-T0061

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 2
12263C - CLIP(FOR VENTILATION HOSE)
96136-52201

1NRVE,2NRVE..F65#

 1
96136-52201

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
12264A - CLIP(FOR VENTILATION HOSE)
90466-T0063

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
90466-T0063

1NRVE,2NRVE..F65#

 1
Linked diagrams
1701
1703
