F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )1NRVE,2NRVE

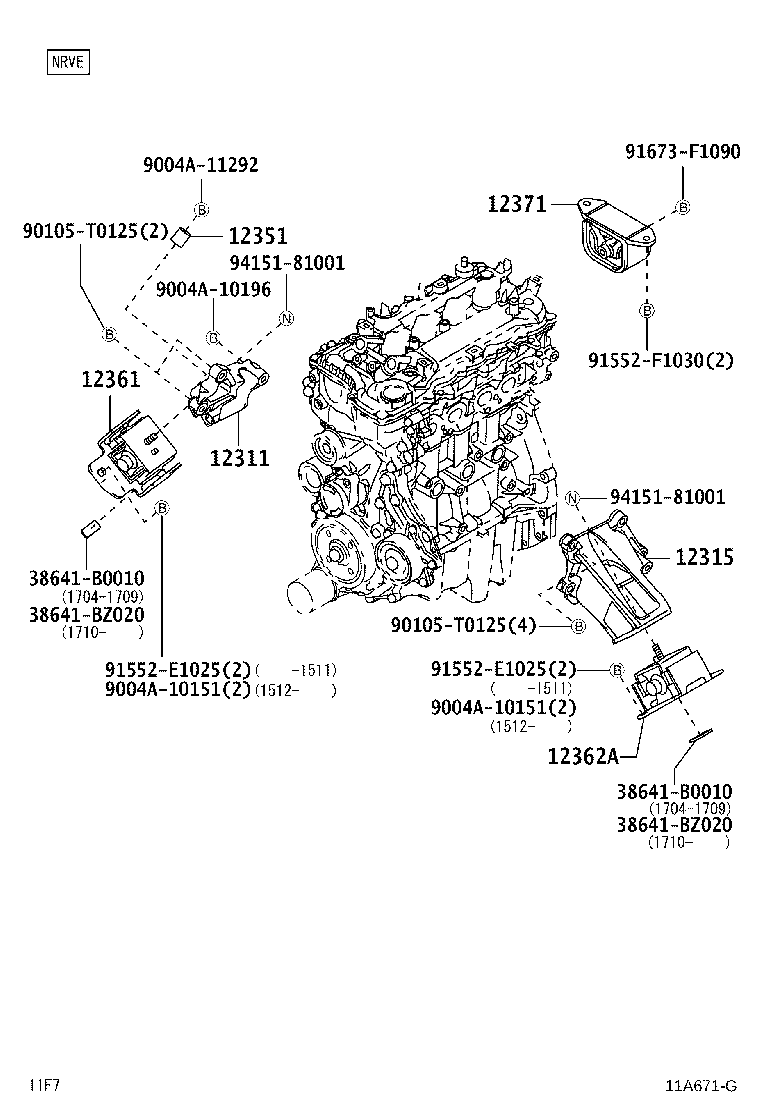

Click highlighted areas on diagram

diagram 12311 12315 12351 12361 12362A 12371 38641B0010 38641B0010 38641BZ020 38641BZ020 9004A10151 9004A10151 9004A10196 9004A11292 90105T0125 90105T0125 91552E1025 91552E1025 91552F1030 91673F1090 9415181001 9415181001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-BZ120

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
12311-BZ120

1NRVE,2NRVE..F65#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-BZ060

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
12315-BZ060

1NRVE,2NRVE..F65#

 1
12351 - DAMPER, ENGINE MOUNTING
12351-BZ040

1NRVE,2NRVE..F65#

 1
12351-BZ040

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-BZ200

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
12361-BZ200

1NRVE,2NRVE..F65#

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12361-BZ200

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
12361-BZ200

1NRVE,2NRVE..F65#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-BZ170

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
12371-BZ170

1NRVE,2NRVE..F65#

 1
Common parts
38641-B0010
38641-BZ020
9004A-10151
9004A-10196
9004A-11292
90105-T0125
91552-E1025
91552-F1030
91673-F1090
94151-81001
