F654RM-GMSFJ (2015)
Toyota Avanza

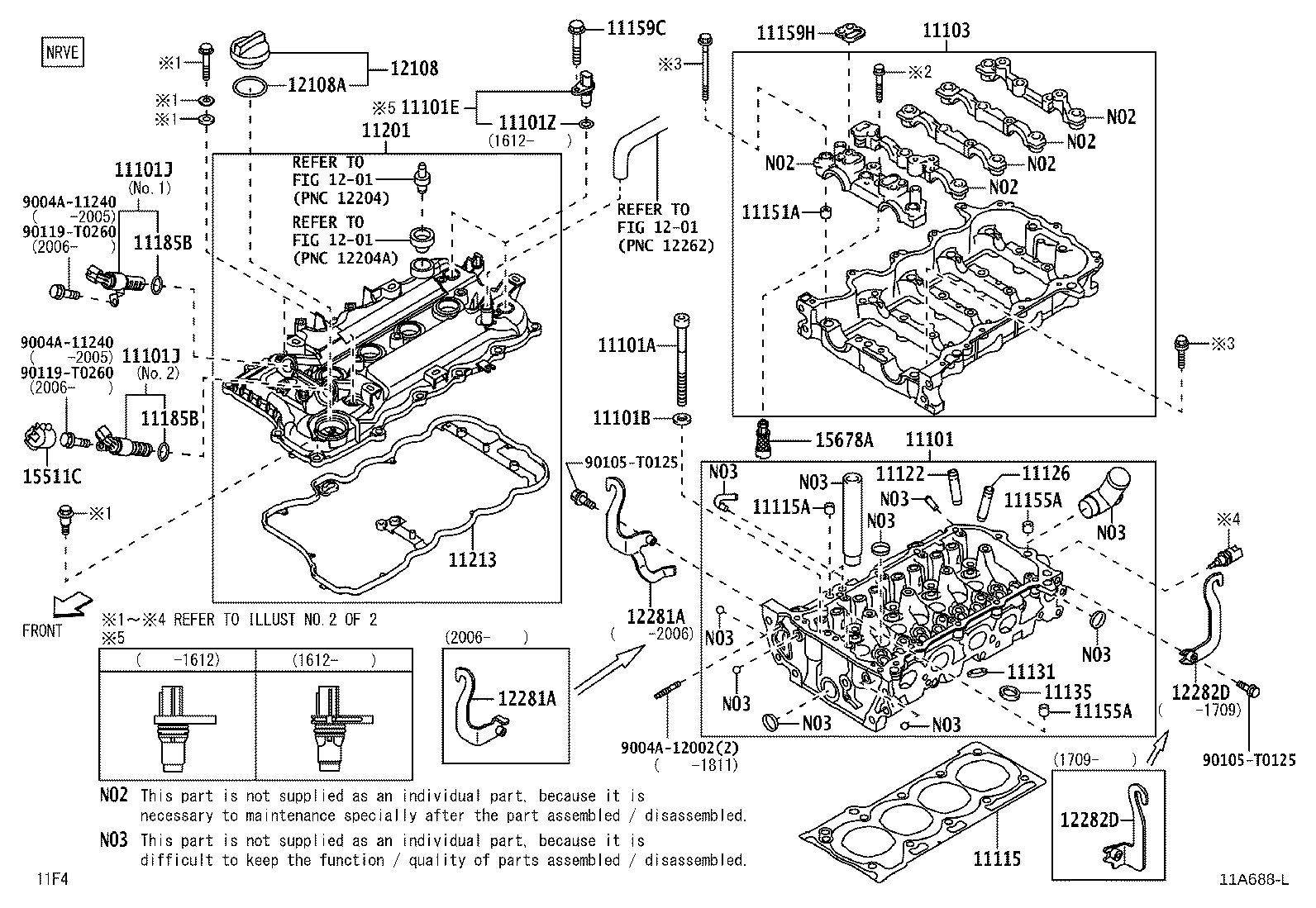

ILLUST NO. 1 OF 2(1507- )1NRVE,2NRVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-B9620 |
1NRVE,2NRVE..F653,654 |
1 | ||
| 11101-B9622 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 11101-B9622 |
1NRVE,2NRVE..F65# |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-T2012 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
10 | ||
| 90910-T2012 |
1NRVE,2NRVE..F65# |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
10 | ||
| 90201-10344 |
1NRVE,2NRVE..F65# |
10 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-T5002 |
1NRVE,2NRVE..F65# |
2 | ||
| 90919-T5002 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-19003 |
1NRVE,2NRVE..F653,654 |
2 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0Y060 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) NO.2 |
1 | ||
| 15330-0Y050 |
1NRVE,2NRVE..F65# NO.1 |
1 | ||
| 15330-0Y060 |
1NRVE,2NRVE..F65# NO.2 |
1 | ||
| 15330-0Y050 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) NO.1 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0Y060 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) NO.2 |
1 | ||
| 15330-0Y050 |
1NRVE,2NRVE..F65# NO.1 |
1 | ||
| 15330-0Y060 |
1NRVE,2NRVE..F65# NO.2 |
1 | ||
| 15330-0Y050 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) NO.1 |
1 | ||
| 11101Z - O RING, CAM POSITION SENSOR | ||||
| 9004A-30059 |
1NRVE,2NRVE..F65# |
1 | ||
| 9004A-30059 |
2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
2 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-0Y040 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 11103-0Y040 |
1NRVE,2NRVE..F65# |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-0Y030 |
1NRVE,2NRVE..F65# |
1 | ||
| 11115-0Y030 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 11115A - PIN, RING | ||||
| 90253-12002 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 9004A-25038 |
1NRVE,2NRVE..F65# |
2 | ||
| 90253-12002 |
1NRVE,2NRVE..F65# |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-31041 |
1NRVE,2NRVE..F653,654 O/S 0.05 |
8 | ||
| 11123-47020 |
1NRVE,2NRVE..F65# O/S 0.05 |
8 | ||
| 11122-31041 |
1NRVE,2NRVE..F653,654 STD |
8 | ||
| 11122-47020 |
1NRVE,2NRVE..F65# STD |
8 | ||
| 11122-47020 |
1NRVE,2NRVE..F65# STD |
8 | ||
| 11123-47020 |
1NRVE,2NRVE..F65# O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-31041 |
1NRVE,2NRVE..F653,654 STD |
8 | ||
| 11122-47020 |
1NRVE,2NRVE..F65# STD |
8 | ||
| 11123-47020 |
1NRVE,2NRVE..F65# O/S 0.05 |
8 | ||
| 11122-47020 |
1NRVE,2NRVE..F65# STD |
8 | ||
| 11123-31041 |
1NRVE,2NRVE..F653,654 O/S 0.05 |
8 | ||
| 11123-47020 |
1NRVE,2NRVE..F65# O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-47010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) O/S 0.03 |
8 | ||
| 11131-47010 |
1NRVE,2NRVE..F653,654 STD |
8 | ||
| 11132-47010 |
1NRVE,2NRVE..F65# O/S 0.03 |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-47010 |
1NRVE,2NRVE..F653,654 STD |
8 | ||
| 11136-47010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) O/S 0.03 |
8 | ||
| 11136-47010 |
1NRVE,2NRVE..F65# O/S 0.03 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) L=12.5,OD=8 |
10 | ||
| 90253-13005 |
1NRVE,2NRVE..F65# L=12.5,OD=8 |
10 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11005 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 90253-11005 |
1NRVE,2NRVE..F65# |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11005 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 90253-11005 |
1NRVE,2NRVE..F65# |
2 | ||
| 11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0283 |
1NRVE,2NRVE..F653,654 |
3 | ||
| 90105-T0347 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
3 | ||
| 90105-T0347 |
1NRVE,2NRVE..F65# |
3 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0Y020 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 11159-0Y020 |
1NRVE,2NRVE..F65# |
2 | ||
| 11185B - RING, O | ||||
| 90068-14041 |
1NRVE,2NRVE..F653,654 |
2 | ||
| 90068-14041 |
1NRVE,2NRVE..F65# |
2 | ||
| 11185B - RING, O | ||||
| 90068-14041 |
1NRVE,2NRVE..F653,654 |
2 | ||
| 90068-14041 |
1NRVE,2NRVE..F65# |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-BZ100 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 11201-BZ100 |
1NRVE,2NRVE..F65# |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0Y030 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 11213-0Y030 |
1NRVE,2NRVE..F65# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0H020 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 12180-0H020 |
1NRVE,2NRVE..F65# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90080-43027 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 90080-43027 |
1NRVE,2NRVE..F65# |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0Y070 |
2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
1 | ||
| 12281-BZ080 |
1NRVE,2NRVE..F65# |
1 | ||
| 12281-0Y070 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0Y070 |
2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) |
1 | ||
| 12281-BZ080 |
1NRVE,2NRVE..F65# |
1 | ||
| 12281-0Y070 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-BZ141 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) BLACK |
1 | ||
| 12282-BZ140 |
1NRVE,2NRVE..F653,654 BLACK |
1 | ||
| 12282-BZ150 |
1NRVE,2NRVE..F653,654 SILVER |
1 | ||
| 12282-BZ141 |
2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) BLACK |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-BZ141 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) BLACK |
1 | ||
| 12282-BZ140 |
1NRVE,2NRVE..F653,654 BLACK |
1 | ||
| 12282-BZ150 |
1NRVE,2NRVE..F653,654 SILVER |
1 | ||
| 12282-BZ141 |
2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA) BLACK |
1 | ||
| 15511C - COVER, OIL CONTROL VALVE | ||||
| 15511-BZ010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| 15511-BZ010 |
1NRVE,2NRVE..F65# |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-0Y010 |
1NRVE,2NRVE..F65# |
1 | ||
| 15678-0Y010 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
1 | ||
| Common parts | ||||
| 9004A-11240 | ||||
| 9004A-12002 | ||||
| 90105-T0125 | ||||
| 90119-T0260 | ||||
| Linked diagrams | ||||
| 1201 | ||||

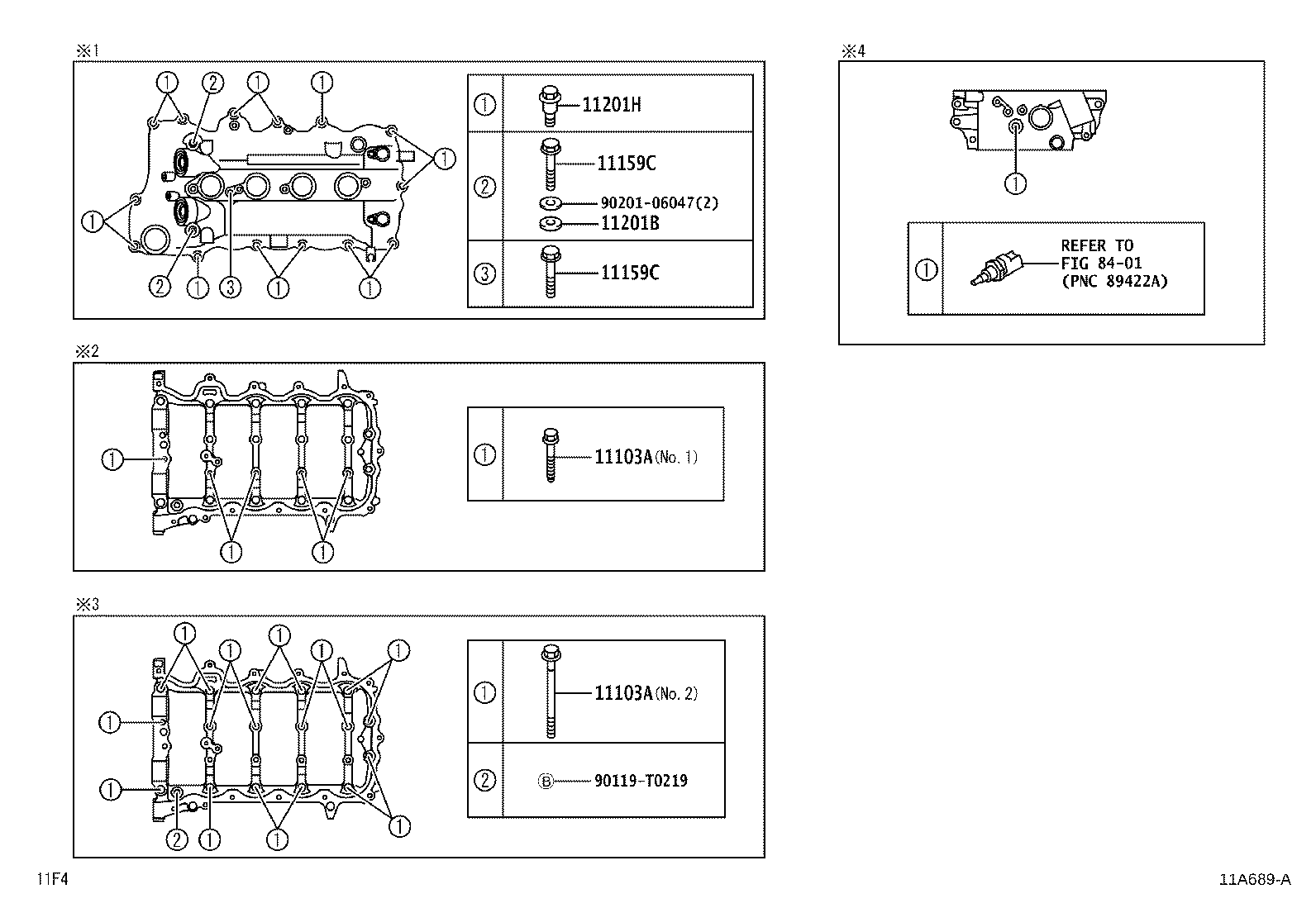

ILLUST NO. 2 OF 2(1507- )1NRVE,2NRVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-T0271 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) NO.2 |
17 | ||
| 90105-T0271 |
1NRVE,2NRVE..F65# NO.2 |
17 | ||
| 90119-T0443 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) NO.1 |
5 | ||
| 90119-T0443 |
1NRVE,2NRVE..F65# NO.1 |
5 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-T0271 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) NO.2 |
17 | ||
| 90105-T0271 |
1NRVE,2NRVE..F65# NO.2 |
17 | ||
| 90119-T0443 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) NO.1 |
5 | ||
| 90119-T0443 |
1NRVE,2NRVE..F65# NO.1 |
5 | ||
| 11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0283 |
1NRVE,2NRVE..F653,654 |
3 | ||
| 90105-T0347 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
3 | ||
| 90105-T0347 |
1NRVE,2NRVE..F65# |
3 | ||
| 11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0283 |
1NRVE,2NRVE..F653,654 |
3 | ||
| 90105-T0347 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
3 | ||
| 90105-T0347 |
1NRVE,2NRVE..F65# |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-T0002 |
1NRVE,2NRVE..F65# |
2 | ||
| 90210-T0002 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90109-T0055 |
1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH) |
14 | ||
| 90109-T0055 |
1NRVE,2NRVE..F65# |
14 | ||
| Common parts | ||||
| 90119-T0219 | ||||
| 90201-06047 | ||||
| Linked diagrams | ||||
| 8401 | ||||
