F654RM-GMSFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )1NRVE,2NRVE

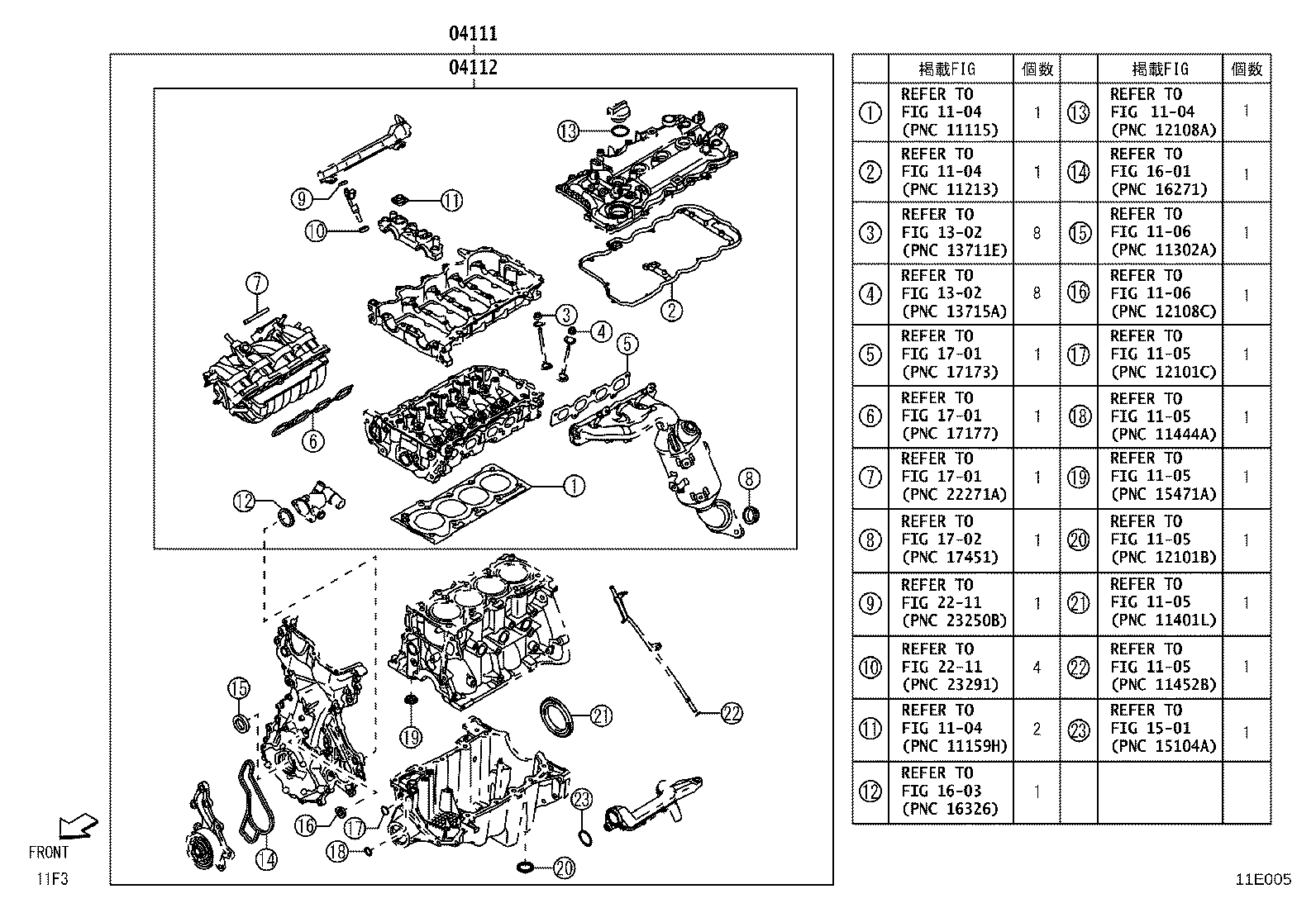

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1105 1105 1105 1105 1105 1105 1106 1106 1302 1302 1501 1601 1603 1701 1701 1701 1702 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-BZ125

1NRVE,2NRVE..F653,654

 1
04111-BZ126

1NRVE,2NRVE..F65#

 1
04111-BZ127

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
04111-BZ127

1NRVE,2NRVE..F65#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-BZ125

1NRVE,2NRVE..F653,654

 1
04112-BZ126

1NRVE,2NRVE..F65#

 1
04112-BZ127

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
04112-BZ127

1NRVE,2NRVE..F65#

 1
Linked diagrams
1104
1105
1106
1302
1501
1601
1603
1701
1702
2211
