F654LM-GMDF (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )LHD

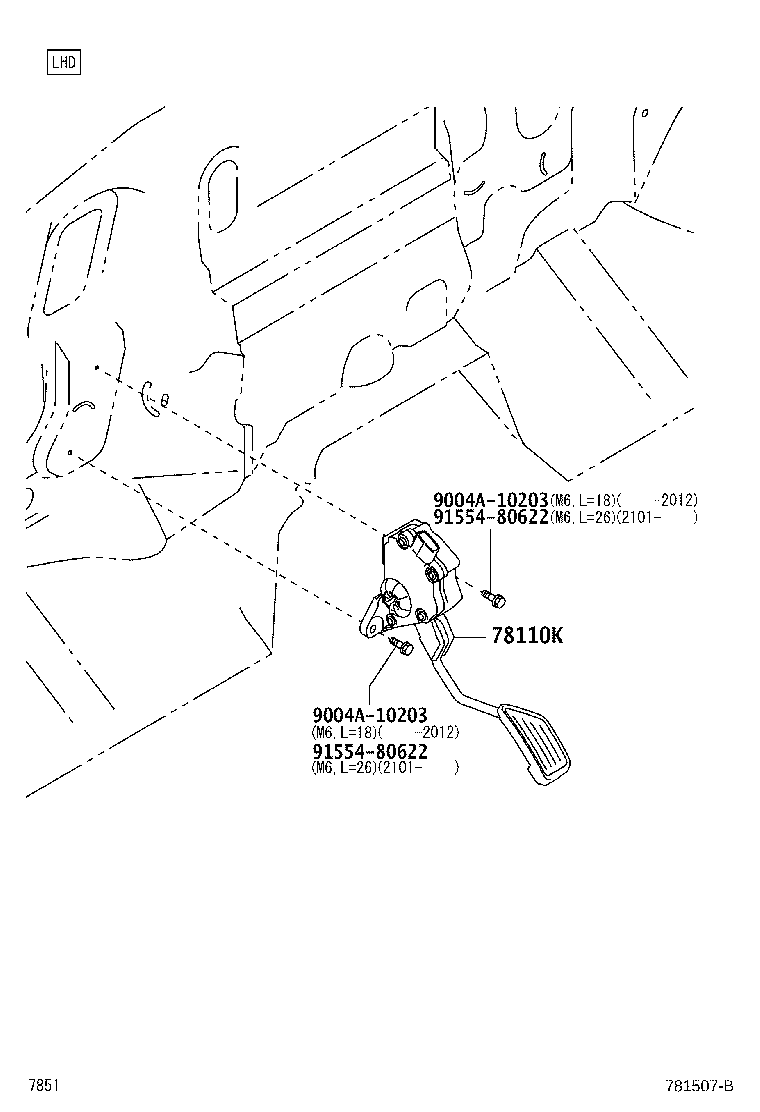

Click highlighted areas on diagram

diagram 78110K 9004A10203 9004A10203 9155480622 9155480622
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-BZ040

F65#..LHD

 1
78110-BZ041

F65#..LHD

 1
78110-BZ041

F65#..LHD

 1
Common parts
9004A-10203
91554-80622
