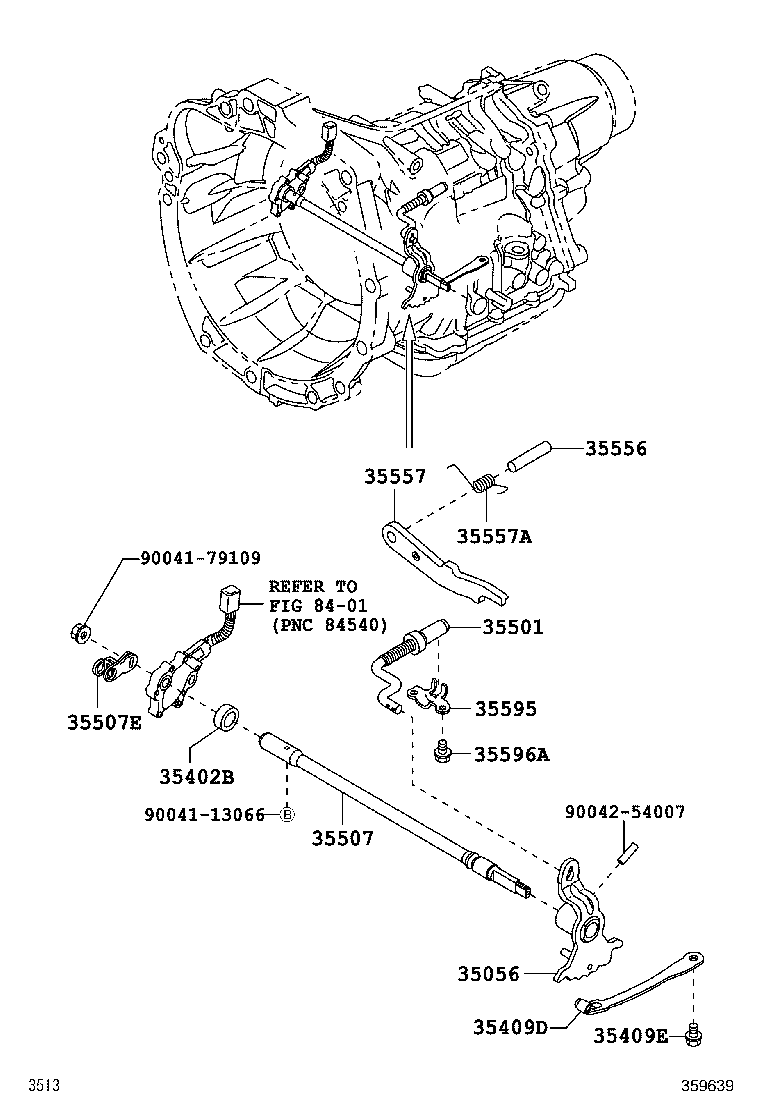

Toyota Avanza F653 THROTTLE LINK & VALVE LEVER (ATM)

Part #	Description	Period	Qty
35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER
35057-B1010	F65#..4AT	01/2019 - 12/2999	1
35057-B1010	F653,654..4AT	07/2015 - 04/2019	1
35402B - SEAL,OIL(FOR MANUAL VALVE)
90043-11256	F653,654..4AT	07/2015 - 04/2019	1
90043-11256	F65#..4AT	01/2019 - 12/2999	1
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-B1020	F65#..4AT	01/2019 - 12/2999	1
35409-B1020	F653,654..4AT	07/2015 - 04/2019	1
35409E - BOLT(FOR MANUAL DETENT SPRING)
90041-05511	F653,654..4AT	07/2015 - 04/2019	1
90041-05511	F65#..4AT	01/2019 - 12/2999	1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-B5010	F65#..4AT	05/2016 - 04/2019	1
35501-B1020	F653,654..4AT	07/2015 - 09/2015	1
35501-B5010	F65#..4AT	01/2019 - 12/2999	1
35501-B1021	F65#..4AT	10/2015 - 04/2016	1
35507 - SHAFT SUB-ASSY, TRANSMISSION CONTROL INTERMEDIATE
33511-B1010	F65#..4AT	01/2019 - 12/2999	1
33511-B1010	F653,654..4AT	07/2015 - 04/2019	1
35507E - LEVER,TRANSMISSION CONTROL SHAFT
35507-87402	F653,654..4AT	07/2015 - 04/2019	1
35507-87402	F65#..4AT	01/2019 - 12/2999	1
35556 - SHAFT, PARKING LOCK PAWL
35556-87502	F65#..4AT	01/2019 - 12/2999	1
35556-87502	F653,654..4AT	07/2015 - 04/2019	1
35557 - PAWL, PARKING LOCK
35557-B1020	F653..4AT;F654..4AT..MID..GCC;F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH);F654..4AT..(SPO,STD)..(GCC,IDN,MA,PHL,SA)	01/2019 - 03/2020	1
35557-B1030	F65#..4AT	04/2020 - 12/2999	1
35557-B1020	F653,654..4AT	07/2015 - 04/2019	1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90045-08419	F653,654..4AT	07/2015 - 04/2019	1
90045-08419	F65#..4AT	01/2019 - 12/2999	1
35595 - BRACKET, PARKING LOCK PAWL
35595-B1020	F653,654..4AT	07/2015 - 04/2019	1
35595-B1020	F65#..4AT	01/2019 - 12/2999	1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90041-05412	F653,654..4AT	07/2015 - 04/2019	2
90041-05412	F65#..4AT	01/2019 - 12/2999	2
Common parts
90041-13066
90041-79109
90042-54007
Linked diagrams
8401

F653RM-GQMFJ (2015)

(1507- )F653,654..4AT
