F653RM-GMDFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 1NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )F653,654

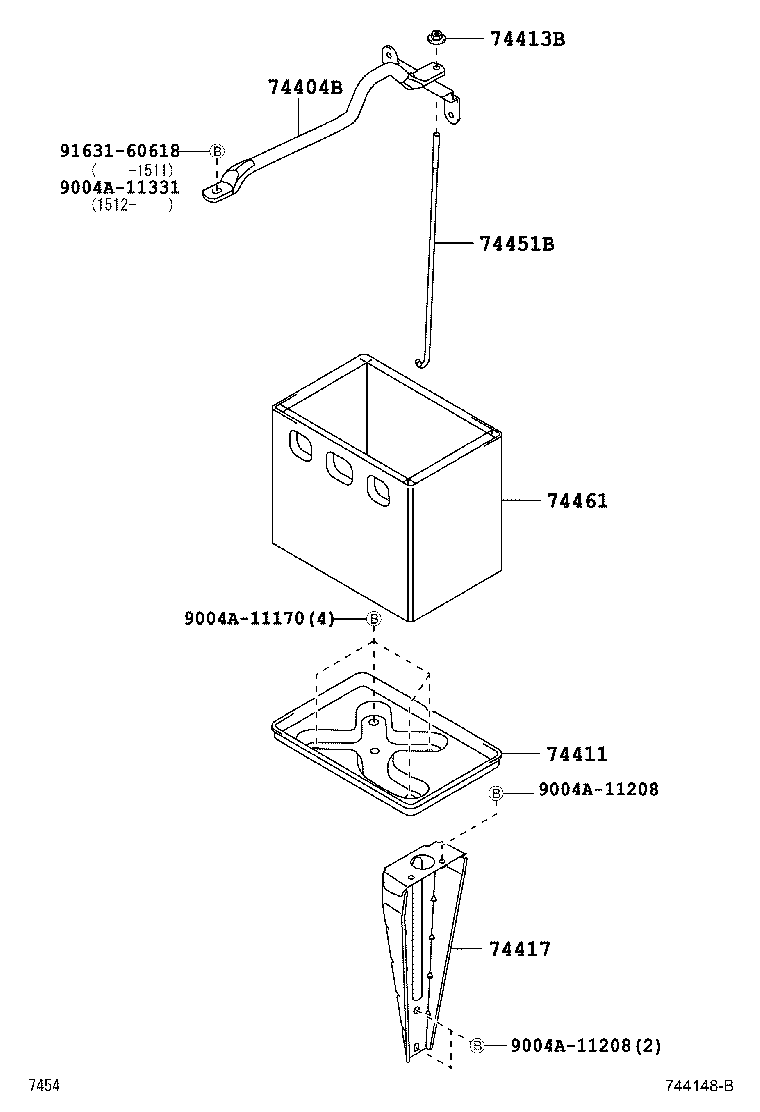

Click highlighted areas on diagram

diagram 74404B 74411 74413B 74417 74451B 74461 9004A11170 9004A11208 9004A11208 9004A11331 9163160618
Part # Description Qty Price
74404B - CLAMP SUB-ASSY, BATTERY
74404-BZ100

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
74404-BZ100

F65#

 1
74411 - CARRIER, BATTERY
74411-BZ090

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
74411-BZ090

F65#

 1
74413B - NUT, WING (FOR BATTERY CLAMP BOLT)
90041-79111

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
90041-79111

F65#

 1
74417 - BRACKET, BATTERY CARRIER
74417-BZ070

F65#

 1
74417-BZ070

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
74451B - BOLT, BATTERY CLAMP
74451-BZ070

F65#

 1
74451-BZ070

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
74461 - COVER, BATTERY
74405-BZ080

F653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)

 1
74405-BZ080

F65#

 1
Common parts
9004A-11170
9004A-11208
9004A-11331
91631-60618
