F653RM-GMDFJ (2015)

Toyota Avanza

Production Jul 2015 - Sep 9999
Engine 1NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )1NRVE,2NRVE

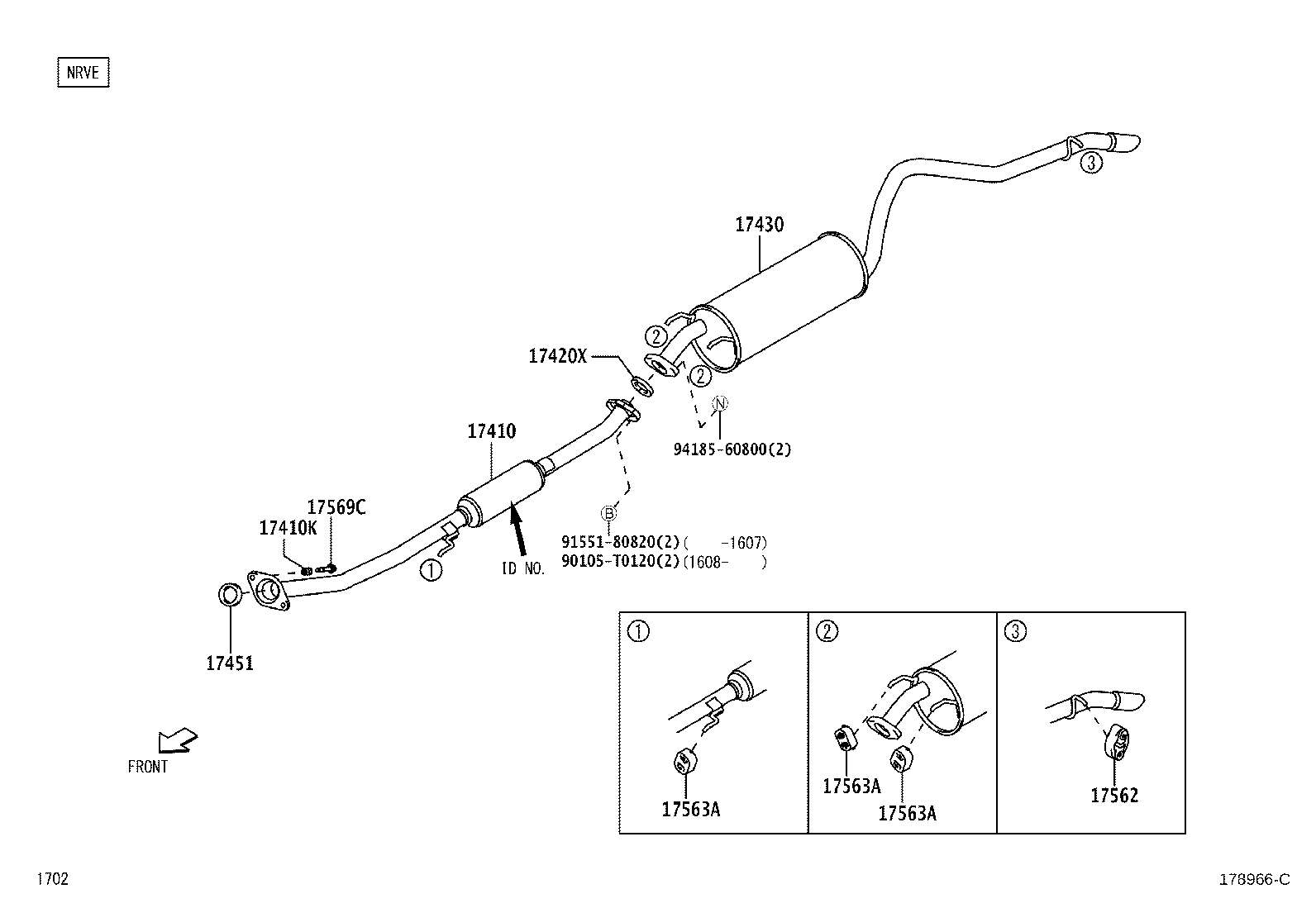

Click highlighted areas on diagram

diagram 17410 17410K 17420X 17430 17451 17562 17563A 17563A 17563A 17569C 90105T0120 9155180820 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-BZ640

1NRVE,2NRVE..F653,654..IDN

ID NO. = 3BZ14,PAINTED=BLACK

 1
17410-BZ830

1NRVE,2NRVE..F65#..IDN

ID NO. = BZ150,PAINTED=YELLOW

 1
17410-BZ830

1NRVE,2NRVE..F65#..GCC,IDN,MXC,PHL,TH

ID NO. = BZ150,PAINTED=YELLOW

 1
17410K - SPRING, EXHAUST PIPE
17152-B1010

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 2
17152-B1010

1NRVE,2NRVE..F65#

 2
17420X - GASKET, EXHAUST PIPE, CENTER
17451-BZ010

1NRVE,2NRVE..F65#

 1
17451-BZ010

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-BZ340

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
17430-BZ340

1NRVE,2NRVE..F65#

 1
17451 - GASKET, EXHAUST PIPE
17451-21030

1NRVE,2NRVE..F65#

 1
17451-21030

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-BZ031

1NRVE,2NRVE..F65#

 4
17567-BZ030

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 3
17567-BZ030

2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 4
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-BZ031

1NRVE,2NRVE..F65#

 4
17567-BZ030

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 3
17567-BZ030

2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 4
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-BZ031

1NRVE,2NRVE..F65#

 4
17567-BZ030

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 3
17567-BZ030

2NRVE..F654..4AT..STD..TH;1NRVE..F653..GEN,IDN,PHL,SA;2NRVE..F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 4
17569C - BOLT, EXHAUST PIPE SUPPORT
17569-97501

1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)

 2
17569-97501

1NRVE,2NRVE..F65#

 2
Common parts
90105-T0120
91551-80820
94185-60800
